6-24
6-4 Setting the Mode
6
Operation
Jog Operation
1. Executing Jog Operation
2. Returning to Auxiliary Function Mode

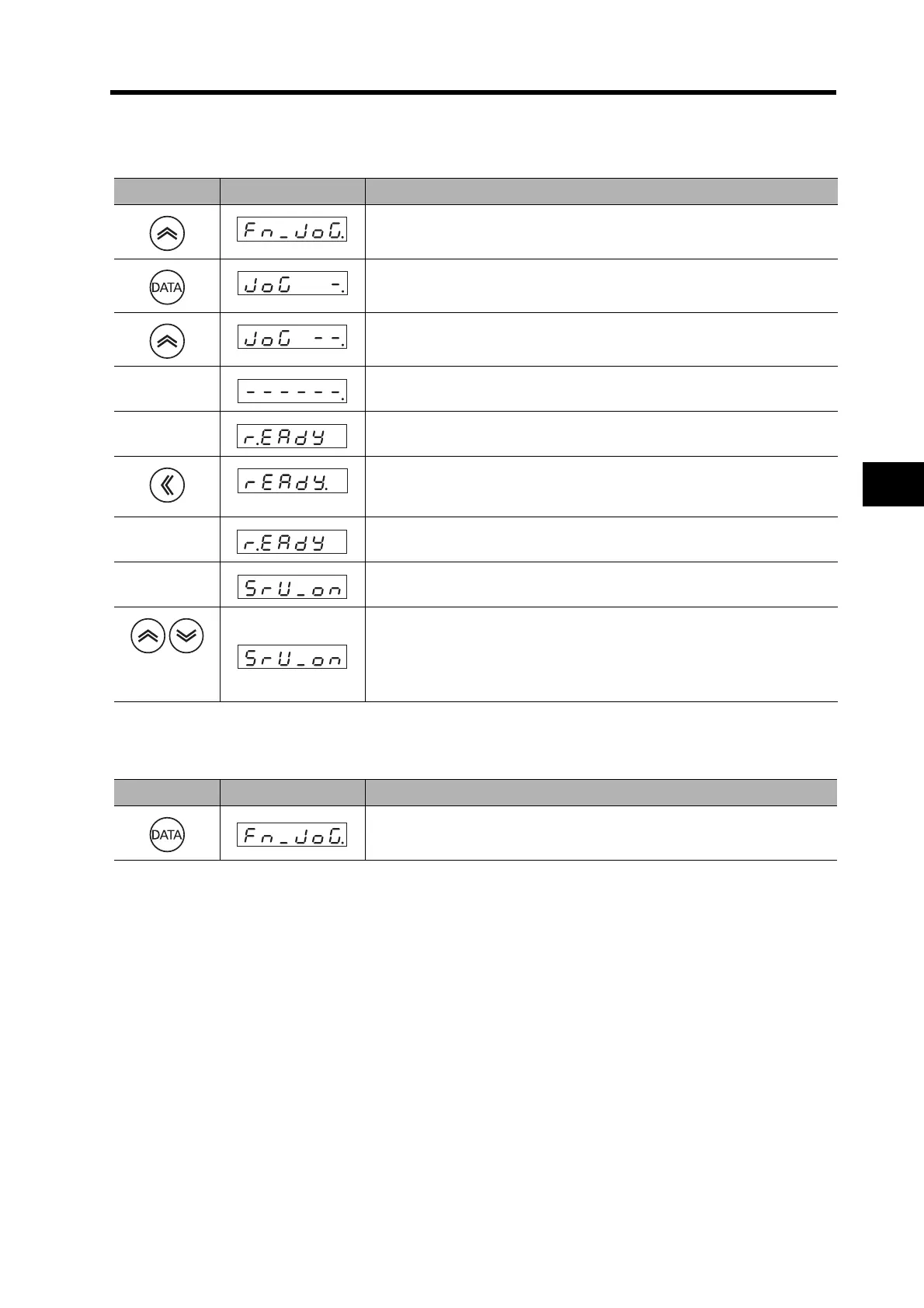

Key operation Display example Explanation
Press the Increment key to display the Jog Operation Mode from the alarm
reset display in Auxiliary Function Mode.
Press the Data key to enter Jog Operation Mode.
Press and hold the Increment key until “Ready” is displayed.
The bar indicator will increase when the key is pressed for 5 s or longer.
The bar indicator will increase.
This completes preparations for jog operation.
Press and hold the Shift key until “Sev_on” is displayed.
The decimal point will move to the left when the key is pressed for 3 s or
longer.
The Servo will turn ON.
Forward operation will be performed while the Increment key is pressed,
and reverse operation will be performed while the Decrement key is
pressed.
The Servomotor will stop when the key is released. The speed set for the
Jog Speed (Pn3D) will be used for jogging.
Key operation Display example Explanation
Press the Data key to return to Auxiliary Function Mode.
The Servo lock will be released.
To Next Page
