8-33
8-5 Interface Monitor Setting Parameters
OMNUC G5-Series AC Servo Drives Users Manual (Built-in MECHATROLINK-II communications type)
8
Parameters Details
 Set output gain for analog monitor 2.
 Refer to the Analog Monitor 1 Scale Setting (Pn417) for the method to set this parameter.
 Select the analog monitor output voltage direction.
 This is the case when the Motor Speed is selected by the Analog Monitor 1 Selection or the Analog
Monitor 2 Selection, and the value 0 is set on the Analog Monitor 1 Scale Setting or the Analog
Monitor 2 Scale Setting (where 1 V = 500 r/min).
Pn419
Analog Monitor 2 Scale Setting
Setting
range
0 to 214748364 Unit 
Default
setting
0
Data
attribute
A
All
Pn420
Unused
Setting
range
 Unit 
Default
setting

Data
attribute

All

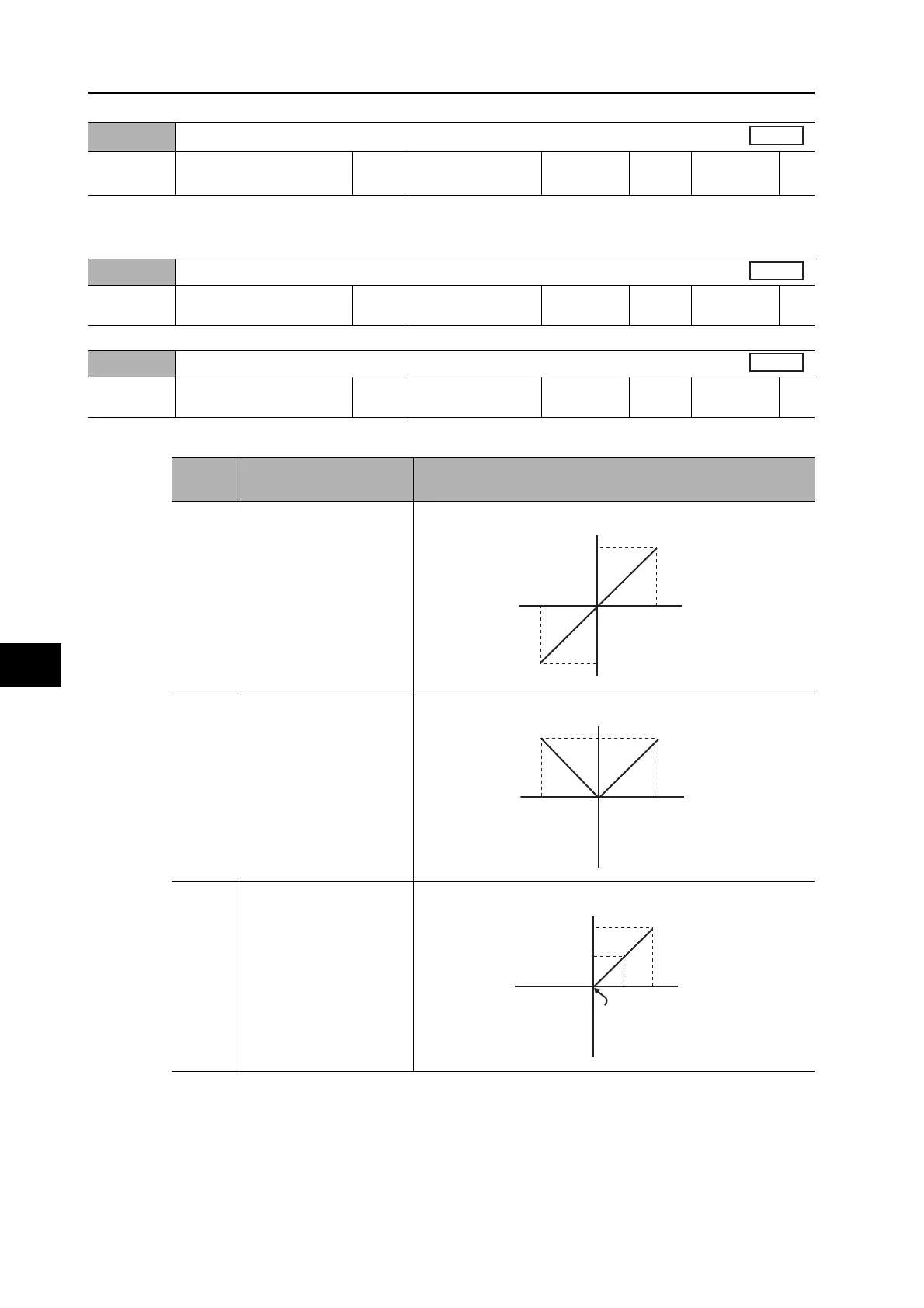

Pn421
Analog Monitor Output Selection
Setting
range
0 to 2 Unit 
Default
setting
0
Data
attribute
A
All
Set
value
Output range Data output
0 10 to 10 V
1 0 to 10 V
2
0 to 10 V
(5 V as a center)
10 V
−
10 V
0 V
−5,000 5,000 [r/min]
Motor
speed
Output voltage [V]
10 V
−
10 V
0 V
−5,000 5,000 [r/min]
Motor
speed
Output voltage [V]
10 V
5 V
−
10 V
0 V 0
−2,500
2,500 [r/min]
Motor
speed
Output voltage [V]
