7-42

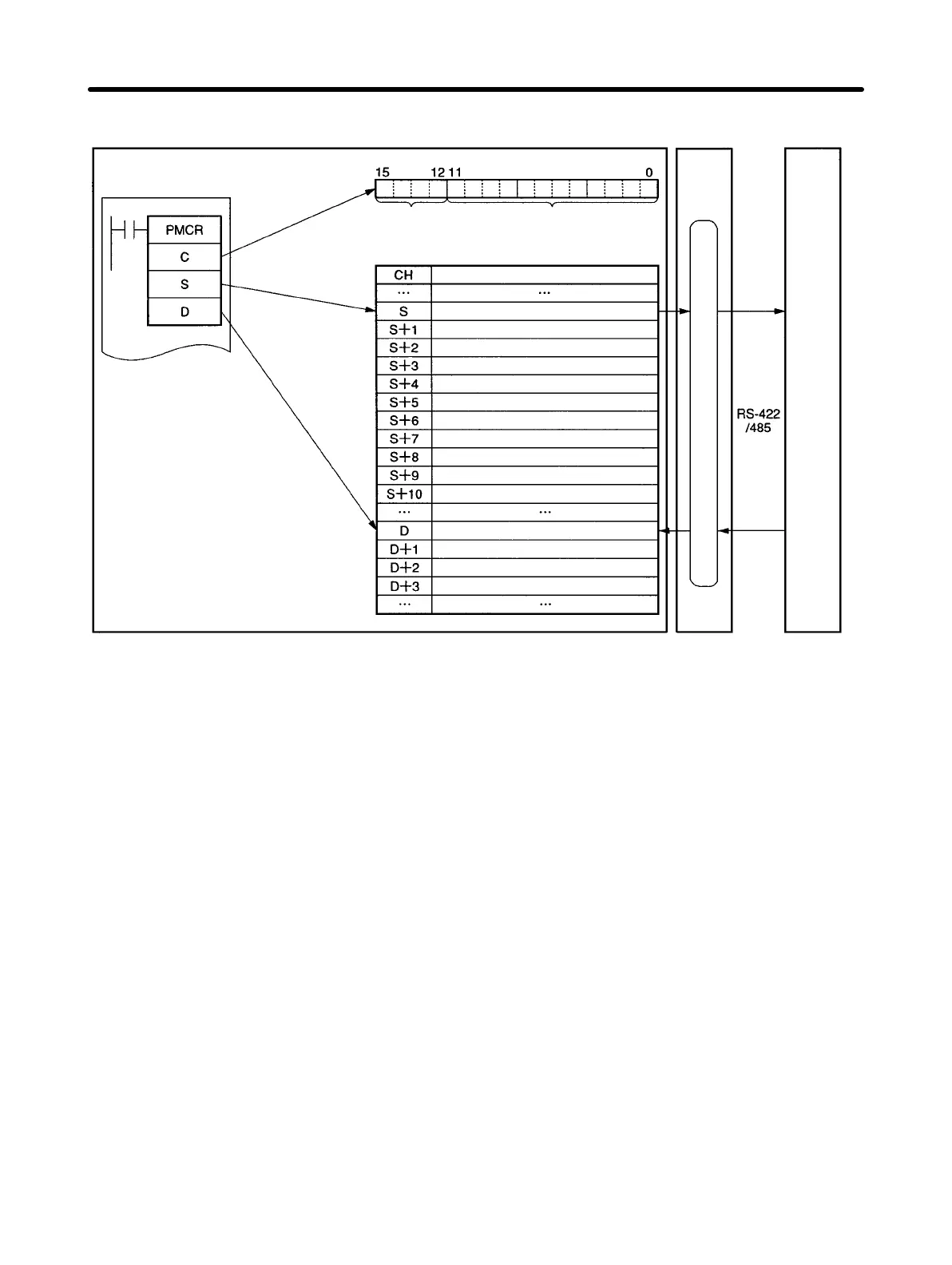

SYSMAC C200HX/HG/HE or CQM1H
Programmable Controllers
Communications
Board
3G3JV
C: Control data
Communica-
tions port
1: Port A
2: Port B
Sequence No.
000 to 999 (BCD)
Data
No. of data items sent in accordance with PMCR instruction
(000B)
No. of Slaves (0003)
First Slave address (0001)
RUN command to Slave 1
Frequency reference to Slave 1
Second Slave address (0002)
RUN command to Slave 2
Frequency reference to Slave 2
Third Slave address (0003)
RUN command to Slave 3
Frequency reference to Slave 3
No. of data items received in accordance with PMCR
instruction (0003)
Slave 1 Inverter status
Slave 2 Inverter status
Slave 3 Inverter status
Protocol macro function
H Creating a New Project and Protocol
1. Select New from the File in the Menu Bar or click on the New icon with the left button of the mouse to
create a new project.
2. If CX-Protocol is used, set the PLC name, PLC model, and network type according to the actual
conditions.
Note 1. The network type refers to the type of the network connected to the Support Software and it
does not refer to the communications configuration between the Programmable Controller
and the 3G3JV Inverter.
Note 2. The above settings will not be displayed if the Protocol Support Tool is used.
3. Double-click on New Project with the left button of the mouse to display Protocol List.
4. Click on Protocol List with the left button of the mouse and click on a blank space with the right
button of the mouse.
5. Select Create Protocol.
H Creating a Sequence
1. Click on New Protocol with the left button of the mouse. Then click on a blank space with the right
button of the mouse.
2. Select Create communication Sequence.
The following table will appear. Set the parameters related to the sequence in the table.
Communications Chapter 7
