2-12
Symbol Signal levelFunctionName
Output
MA Multi-function contact
output (Normally open)
Set by parameter n40
(during running)
Relay output
1 A max. at 30 V DC
MB Multi-function contact
output (Normally closed)
(g g)
30 C
1 A max. at 250 V AC
MC Multi-function contact
output common
Common for MA and
MB use
AM Analog monitor output Set by parameter n44
(Output frequency)
2 mA max. at 0 to 10 V DC
AC Analog monitor output
common
Common for AM use
Note 1. Depending on the parameter settings, various functions can be selected for multi-function in-
puts and multi-function contacts outputs.
Note 2. Functions in parentheses are default settings.

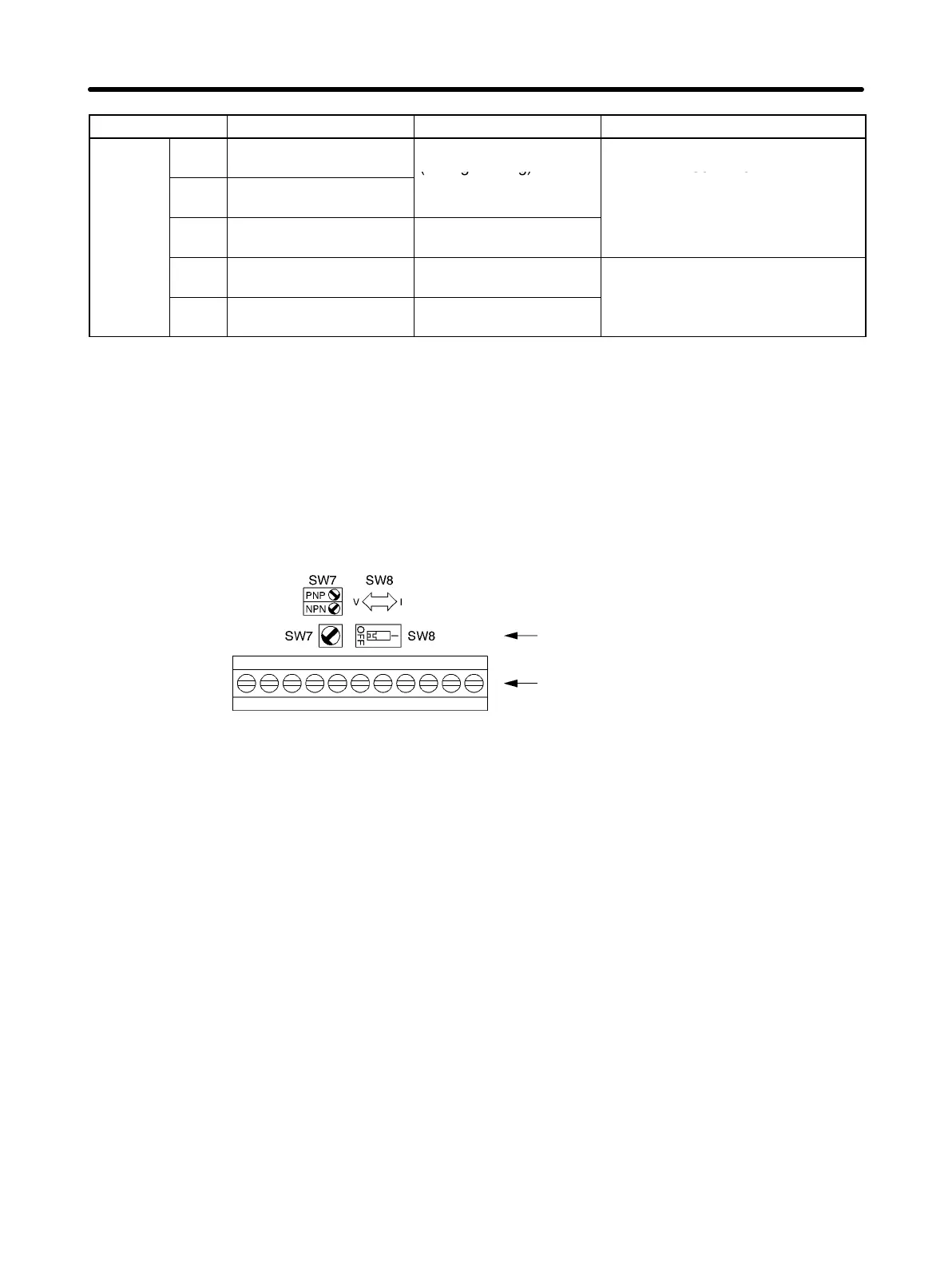

H Selecting Input Method
• Switches SW7 and SW8, both of which are located above the control circuit terminals, are used for
input method selection.
Remove the front cover and optional cover to use these switches.
Selector
Control circuit terminal
block
Design Chapter 2
