Monitoring the Measurement Status - RUN Mode
ZFX-C User’s Manual
4
FUNCTIONS USED DURING OPERATION
125

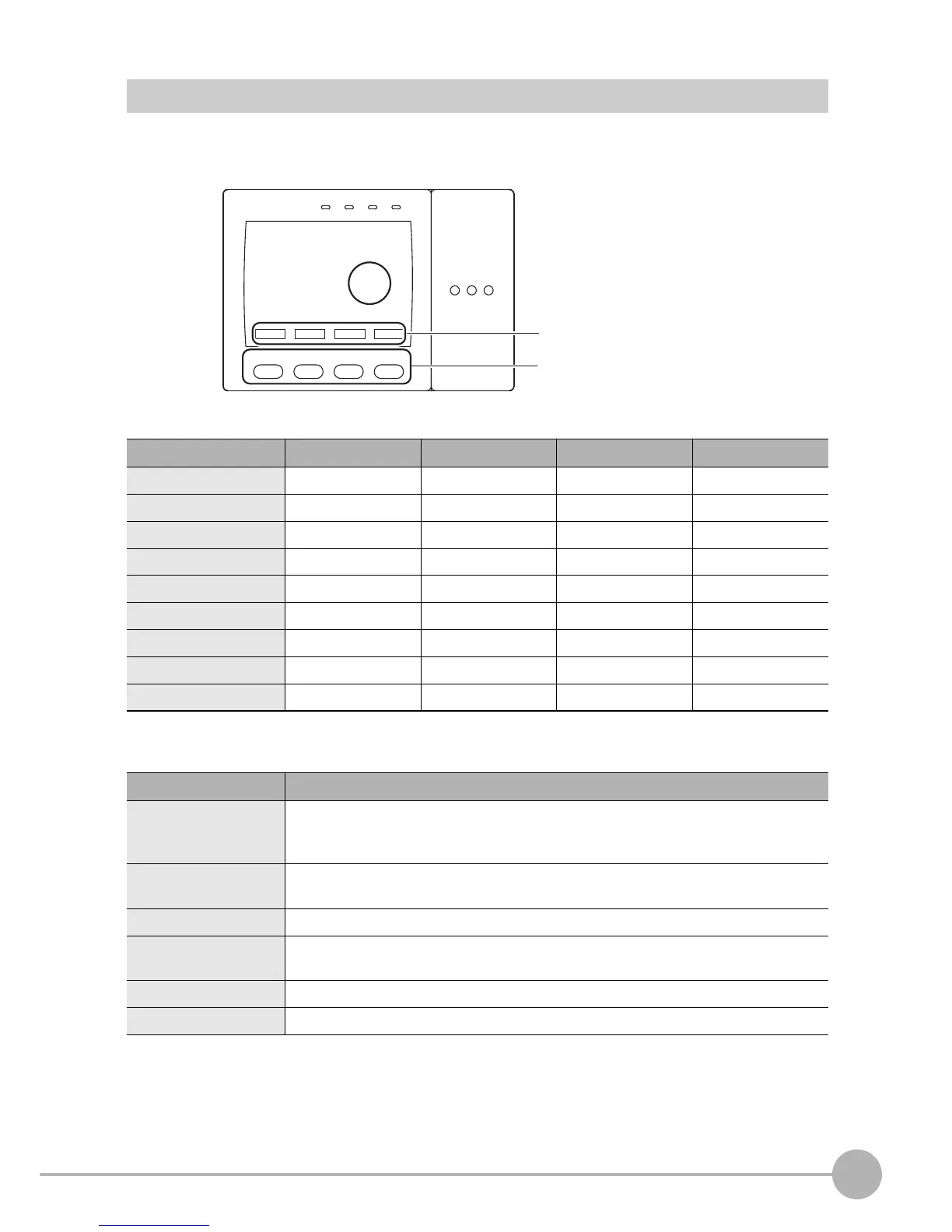

Menu Buttons
Select the menu buttons displayed on the LCD screen by the touch pen or function keys. The functions that are
assigned to buttons differ according to the screen.
Menu button functions
Screen F1 F2 F3 F4
Individual results Previous Next Display switch (sw) Capture
All results/Region - Camera switch (sw) Display switch (sw) Capture
All results/Judge - - Display switch (sw) Capture
Position correction Previous Next Display switch (sw) Capture
Variables list Previous Next Display switch (sw) Capture
Data list Previous Next Display switch (sw) Capture
Judgment list Previous Next Display switch (sw) Capture
Logging monitor - Log switch (sw) Display switch (sw) Capture
Statistical data - Log switch (sw) Display switch (sw) Capture
Function Name Description
Previous Individual results/Position correction: The previous measurement item results are dis-
played.
Variables/Data/Judgment list: The previous page is displayed.
Next Individual results/Position correction: The next measurement item results are displayed.
Variables/Data/Judgment list: The next page is displayed.
Camera switch (sw) Switches the camera to be displayed.
Log switch (sw) Logging monitor: Switches the parameters to be displayed.
Statistical data: Displays the statistical data of the assigned setting value.
Display switch (sw) Switches the content of the measurement information that is displayed.
Capture Captures the display screen and saves it on SD card.
