Setting Measurement Items
ZFX-C User’s Manual
3
SETTING THE MEASUREMENT CONDITIONS
87

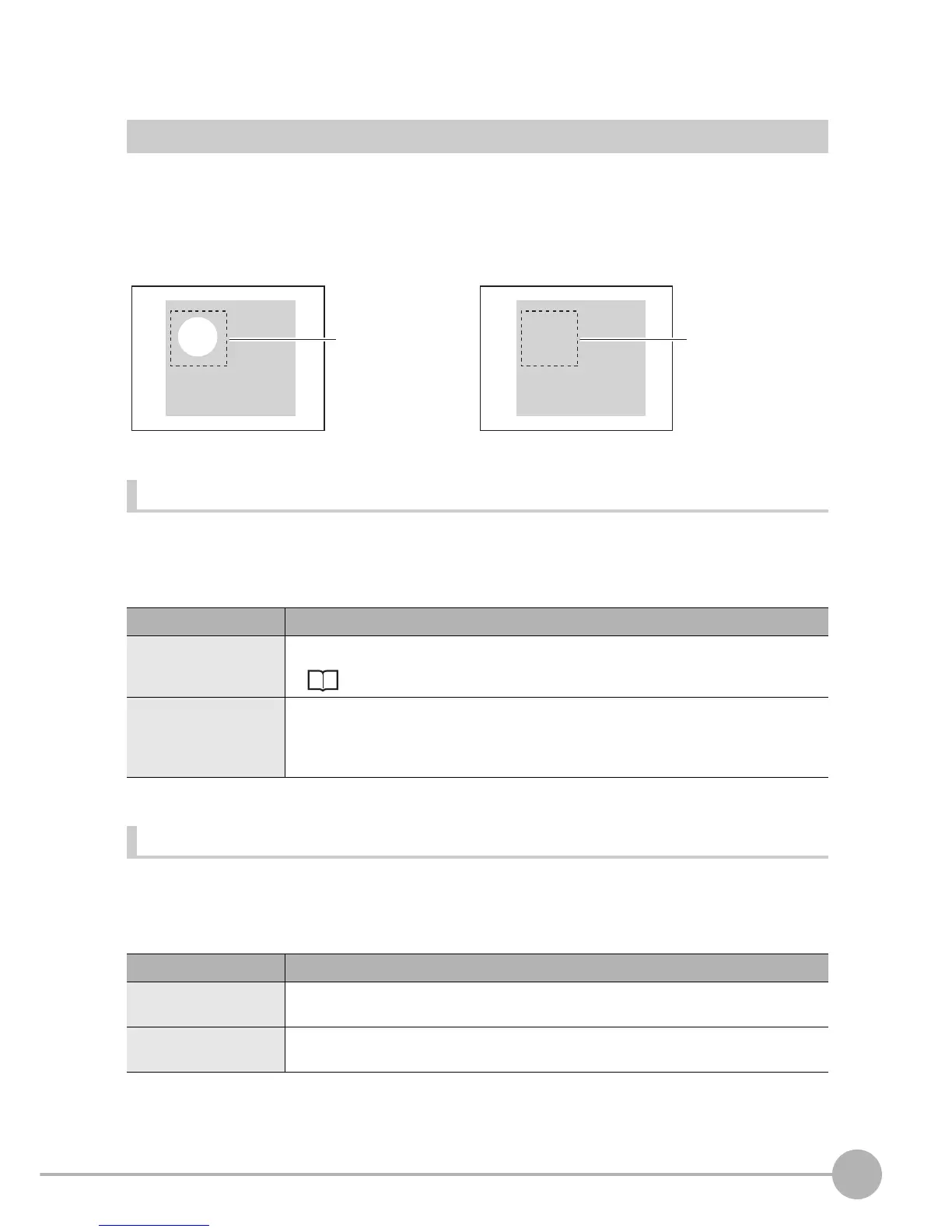

Bright/Color Inspection
Bright
Use this item to measure the brightness of measurement targets. The density average and density deviation
(brightness fluctuations) are output. Change in brightness can be used to inspect whether or not parts are
present.
Region settings
This function sets the measurement region.
X MENU mode - [Setup] - [Item] - [Region]
Threshold
This function sets the judgment conditions.
X MENU mode - [Setup] - [Item] - [Limits]
Setup Item Description
Measurement region This function sets the region to be measured.
Setting the Region p.213
Reference registration When the measurement region is set, measurement is executed on the display image,
and the result of execution is registered as the reference value. To re-register only refer-
ence values, you can use this function to re-register only reference values based on the
image currently on screen.
Setup Item Description
Density average Sets the range of the density average to be judged as OK.
Range: 0 to 255.0
Density deviation Sets the range of the density deviation to be judged as OK.
Range: 0 to 127.0
To Next Page
