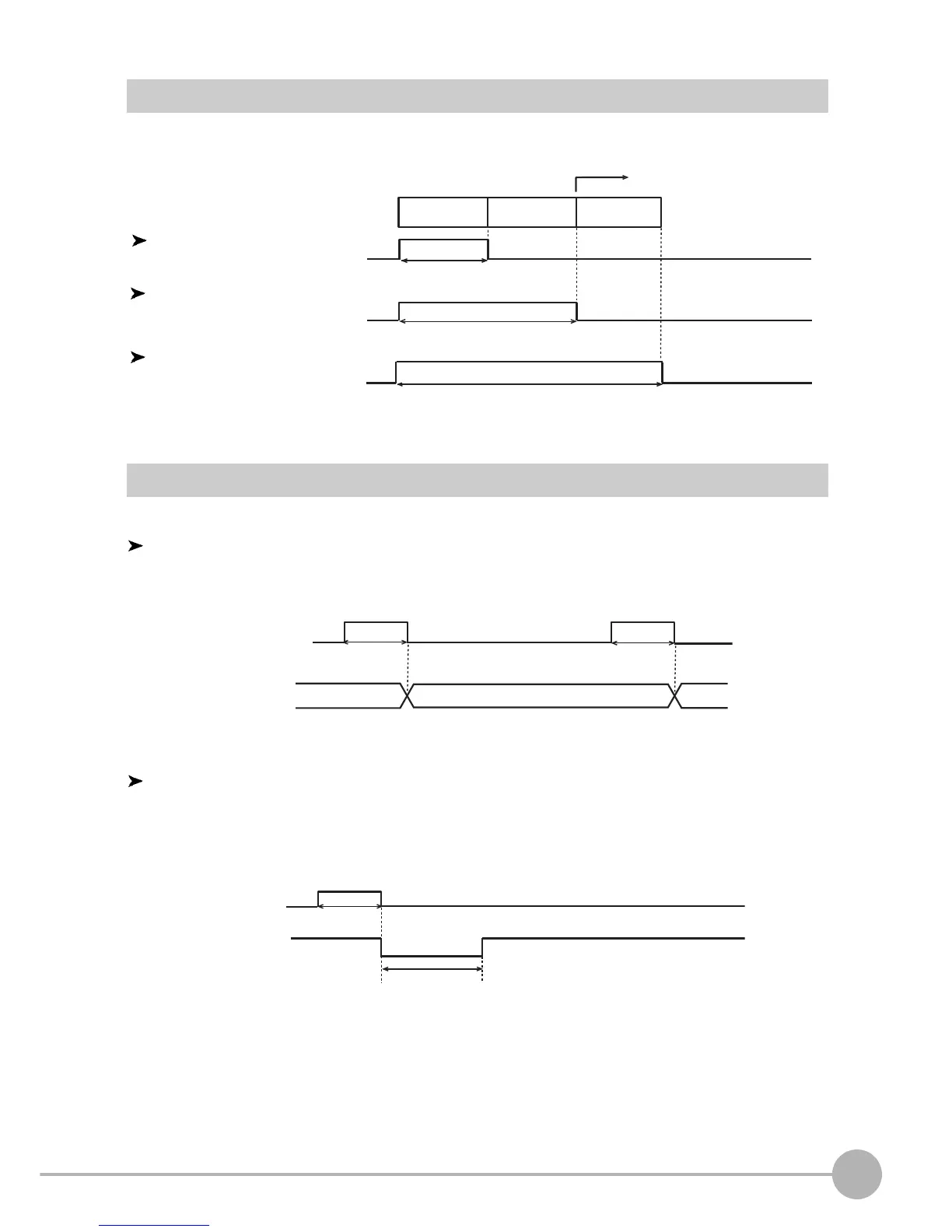

Timing Charts
ZFX-C User’s Manual
6
PARALLEL INTERFACE
173
ENABLE Signal Output
The following three output pattern can be specified for ENABLE signal.
OR Signal Output
The following two output pattern can be specified for the OR signal.
Level output
Output of the overall judgment is retained until output of the next overall judgment.
One-shot output
The OR signal is remained to be ON during the output time set in [System/Comm/OR output/Output time] when
[One-shot] is set in [System/Comm/OR output/Output mode].
OFF
ON
OFF
ON
OFF
ON
Measurement time
Measurement time
Measurement time
ENABLE
ENABLE
ENABLE
Starts measurement results output.
Image input
Measurement
Display
Outputs when an
image is input
Outputs when
measurement processing
is completed
Outputs when
display is completed
ENABLE
OR
Overall judgment
Measurement time
Measurement time
OFF
ON
OFF
ON
OFF
ON
OFF
ON
ENABLE
OR
Measurement time
Output time
