Omron ZFX-C User Manual

Setting Measurement Items
76
ZFX-C User’s Manual

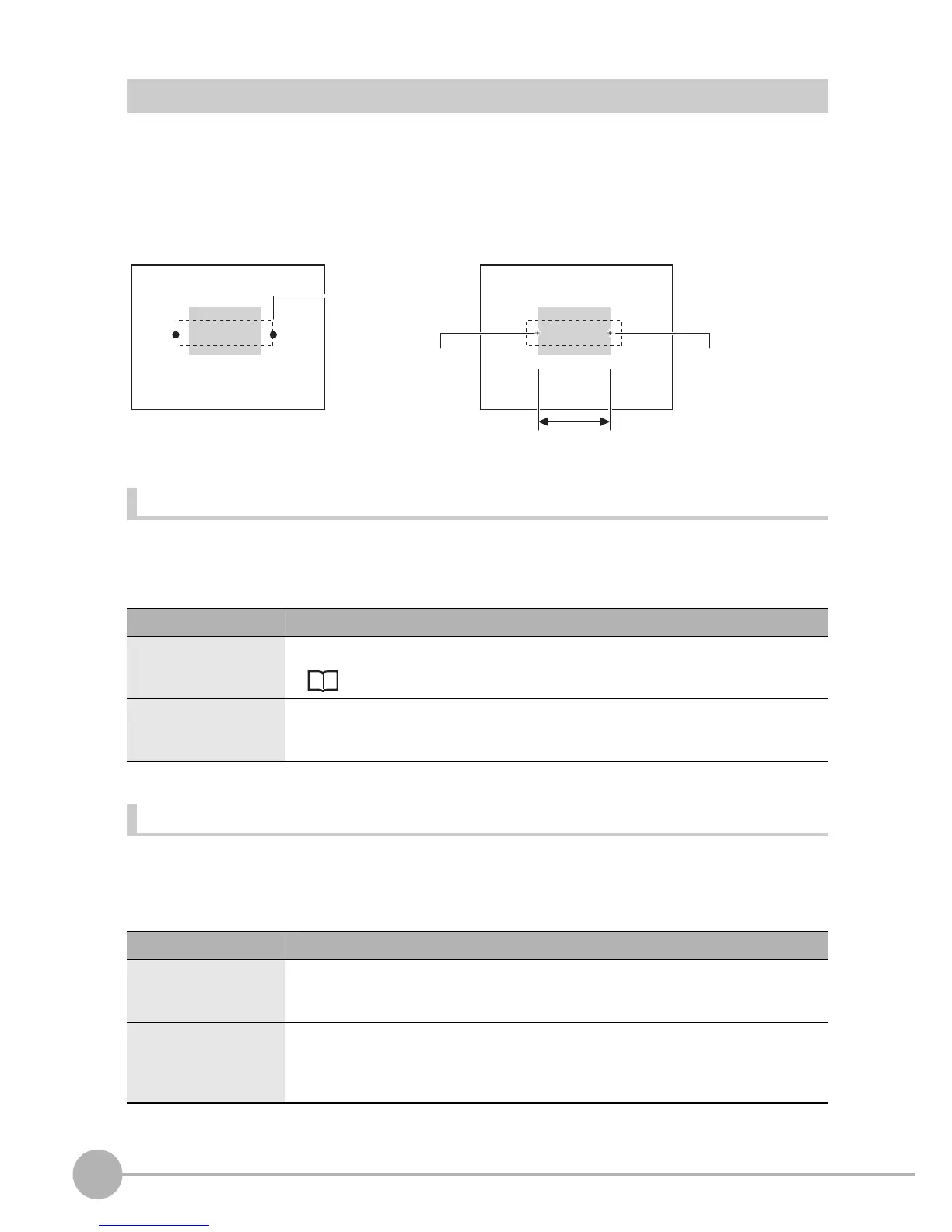

Width
This item uses the changes in brightness in a region to detect edge(s). Two edges are found in a single
measurement region, and the distance between these edges is output as a dimension.
Region settings
This function sets the measurement region.
X MENU mode - [Setup] - [Item] - [Region]
Threshold
This function sets the judgment conditions.
X MENU mode - [Setup] - [Item] - [Limits]
Item Description
Measurement region This function sets the region to be measured.
Setting the Region p.213
Reference registration When the measurement region is set, measurement is executed on the display image, and the result
of execution is registered as the reference value. To re-register only reference values, you can use
this function to re-register only reference values based on the image currently on screen.
Setup Item Description
Width Sets the range of the edge width to be judged as OK.
Range: 0 to 9999.999
(When calibration is OFF, the range becomes 0 to 800.)
Position X1, Y1
Position X2, Y2
Sets the range of movement in the X- and Y- axes to be judged as OK.
Range: -9999.999 to 9999.999
(When calibration is OFF, the range of movement for positions X and Y are 0 to 640 and 0
to 480, respectively.)
Setup Measurement
Two edges are searched in the region.
Edge 1 is searched from the start point towards the end
point. Edge 2 is searched from the end point towards the
start point.
Measurement region
Start
point
Dimension
End
point
Edge 1
(start point side)
Edge 2
(end point side)
