ZFX-C User’s Manual
5
ADDITIONAL FUNCTIONS
151
SD Card Operations
X MENU mode - [Tool] - [SD card]

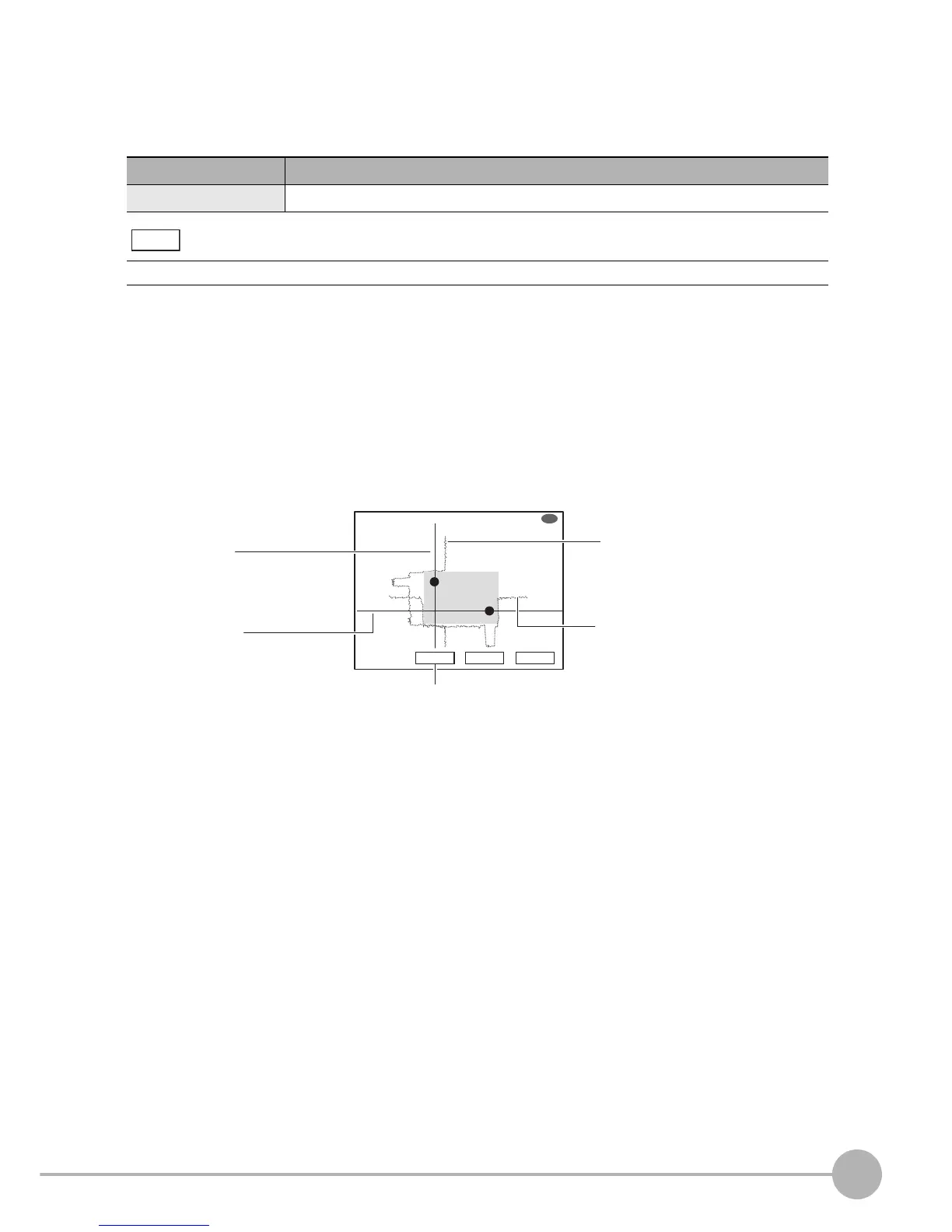

Checking Density Distribution (Profile)
The graph indicating the density distribution of a single line in the screen is called a "profile." Profiles can be
displayed for any horizontal or vertical line.
When a color camera is connected to the Controller, profiles can be displayed using a specified color filter.
X MENU mode - [Tool] - [Profile]
Setup Item Description
File operation Deletes or renames files, for example.
The remaining space on the SD card can be checked.
Note
Return Capture
SD
Profile
Red
Displays the density distribu-
tion of the vertical line.
Graph line
Displays the density distribu-
tion of the horizontal line.
Graph line
Move this line to the desired
position to check its density.
This line can be moved by the
←L key /→ R key.
Vertical line
Move this line to the desired
position to check its density.
This line can be moved by the
↑ UP key /↓ DOWN key.
Horizontal line
The profile can be checked
while you switch color filters.
Color filter
