System Settings
138
ZFX-C User’s Manual

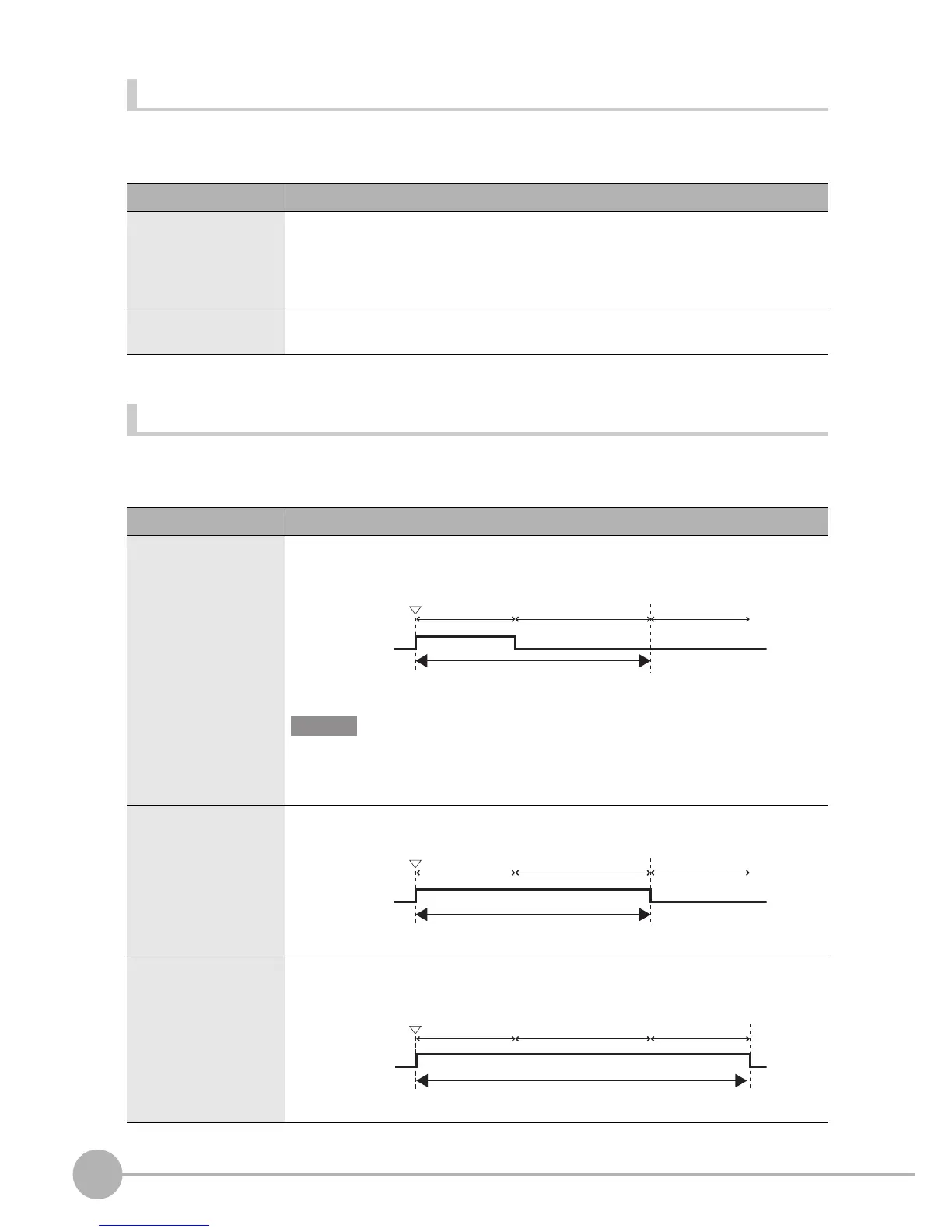

OR signal
Set the output conditions of the OR signal.
X MENU mode - [System] - [Comm] - [OR output]
ENABLE signal ON range
Set the timing during measurement processing that the ENABLE signal is turned ON.
X MENU mode - [System] - [Comm] - [ENABLE range] - [Range]
Setup Item Description
Output mode Sets the output conditions of the OR signal.
One-shot: The OR signal turns ON for the specified time only when the ON condition (Polarity) is
satisfied. The OR signal turns OFF when the specified time has elapsed.
Level: The ON/OFF status is held until it next changes after the OR signal has been
output. (default value)
Output time Sets the time that the OR signal is output as a one-shot signal.
Range: 0 to 255 ms (default value: 0 ms)
Setting value Description
Input image Turns the ENABLE signal ON when image input is complete. This serves as a guideline
as to whether it is OK or not to move the measurement target.
When [Input image] is selected, do not input the next command until measurement is
complete even if the ENABLE signal is ON. If the next command is input, the measure-
ment currently being executed or the input command will not be executed normally.
Measurement Turns the ENABLE signal ON when measurement is complete. (default value)
Display Turns the ENABLE signal ON when display of the measurement result is complete. Pro-
cessing until end of display is processed as "measurement in progress."
Image input Measurement Display
ENABLE
OFF
ON
TRIG
Measurement in progress
Important
Image input Measurement Display
ENABLE
OFF
ON
TRIG
Measurement in progress
Image input Measurement Display
ENABLE
OFF
ON
Measurement in progress
TRIG
