Omron ZFX-C User Manual

Specifications and External Dimensions
192
ZFX-C User’s Manual
*1: Only STGOUT0 is functional on the ZFX-C10H/C15H/C10/C15.

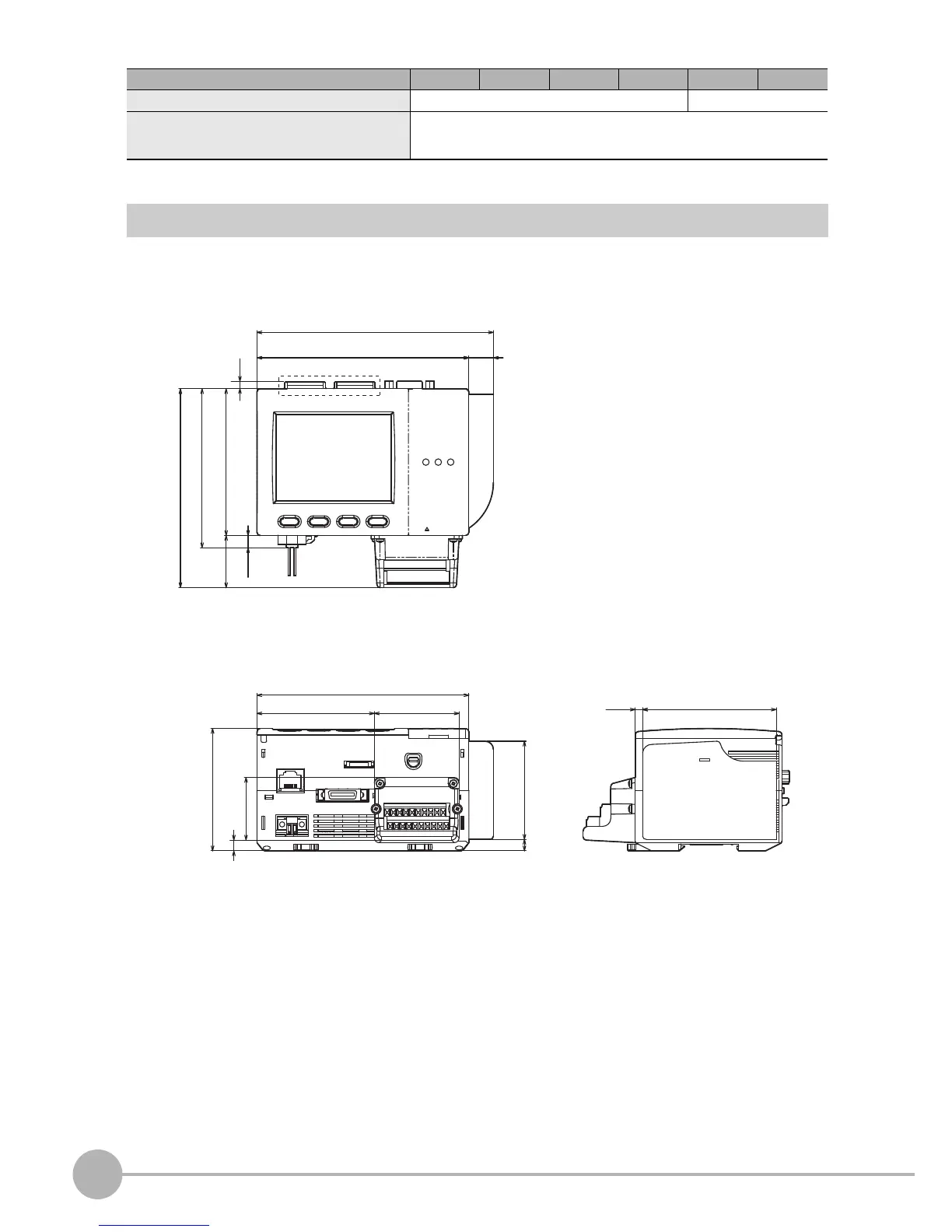

External Dimensions
ZFX-C20/C25/C10H/C15H/C10/C15
Weight Approx. 650 g Approx. 620 g
Accessories Touch pen (ZFX-TP), Exhaust unit (ZFX-EU), Terminal block adapter (ZFX-XTB),
Terminal block adapter mounting screws (4 p'ces), Ferrite core (2 p'ces),
Instruction Sheet, Power connector
Item ZFX-C20 ZFX-C25 ZFX-C10H ZFX-C15H ZFX-C10 ZFX-C15
15
(90)
32
7.5
145
(130)
122
97.5
4.5
82
72
(130)
52
6.58
38.42
(75)
7
60.23
4
(Note 1)
(Unit: mm)
Note 1:
Only connector 1 for camera 1 is provided
on the ZFX-C10H/C15H/C10/C15.
