Omron ZFX-C User Manual

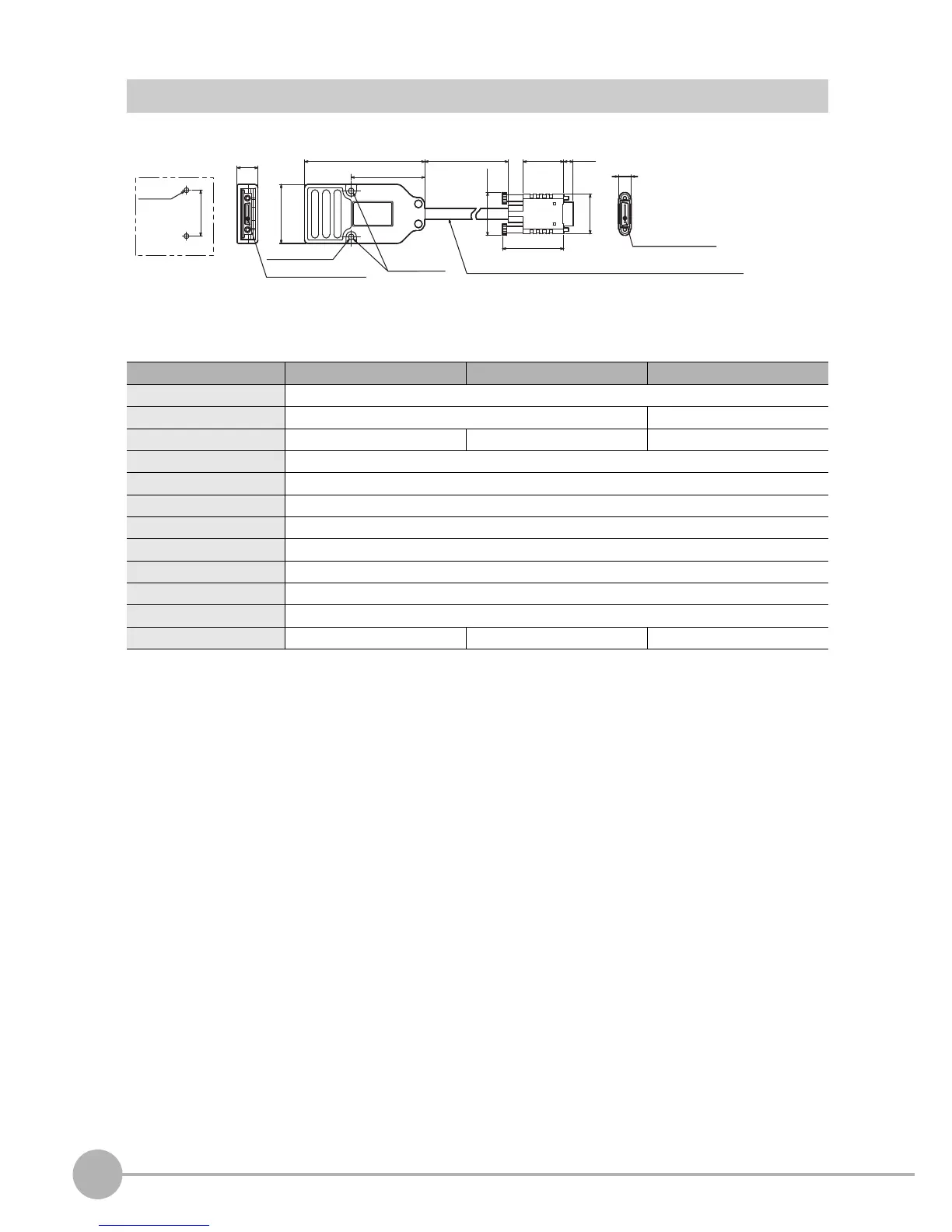

Specifications and External Dimensions
196
ZFX-C User’s Manual
Camera Extension Cable
ZFX-XC3A/XC8A, ZFX-XC3AR
Item ZFX-XC3A ZFX-XC8A ZFX-XC3AR
Applicable Controller/camera ZFX
Cable type Standard cable Robot cable
Cable length 3 m 8 m 3 m
Minimum bending radius 40 mm
Power supply voltage 15 VDC
Current consumption Approx. 30 mA (extension cable only. excluding camera)
Ambient temperature range Operating: 0 to + 50°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Vibration resistance (durability) 10 to 150 Hz Single-amplitude 0.35 mm 10 times for 8 min each in X, Y, and Z directions
Shock resistance (destructive) 150 m/s
2
3 times each in 6 directions (up/down, left/right, forward/backward)
Material Case: Polycarbonate (PC)
Weight Approx. 250 g Approx. 550 g Approx. 250 g
2-M3
28 ± 0.1
Mounting
holes
36
75 L
25.34
24.2
5.9
38.14
2-3.5 mm dia.
26.2
45.9
Mounting
holes
Vinyl insulated round cable 6.1 mm dia. 15-core
13
26-pole (female)
8
26-pole (male)
L: ZFX-XC3A : 3 m
ZFX-XC8A : 8 m
ZFX-XC3AR : 3 m
(Unit: mm)
