Mounting and Connecting Devices
30
ZFX-C User’s Manual

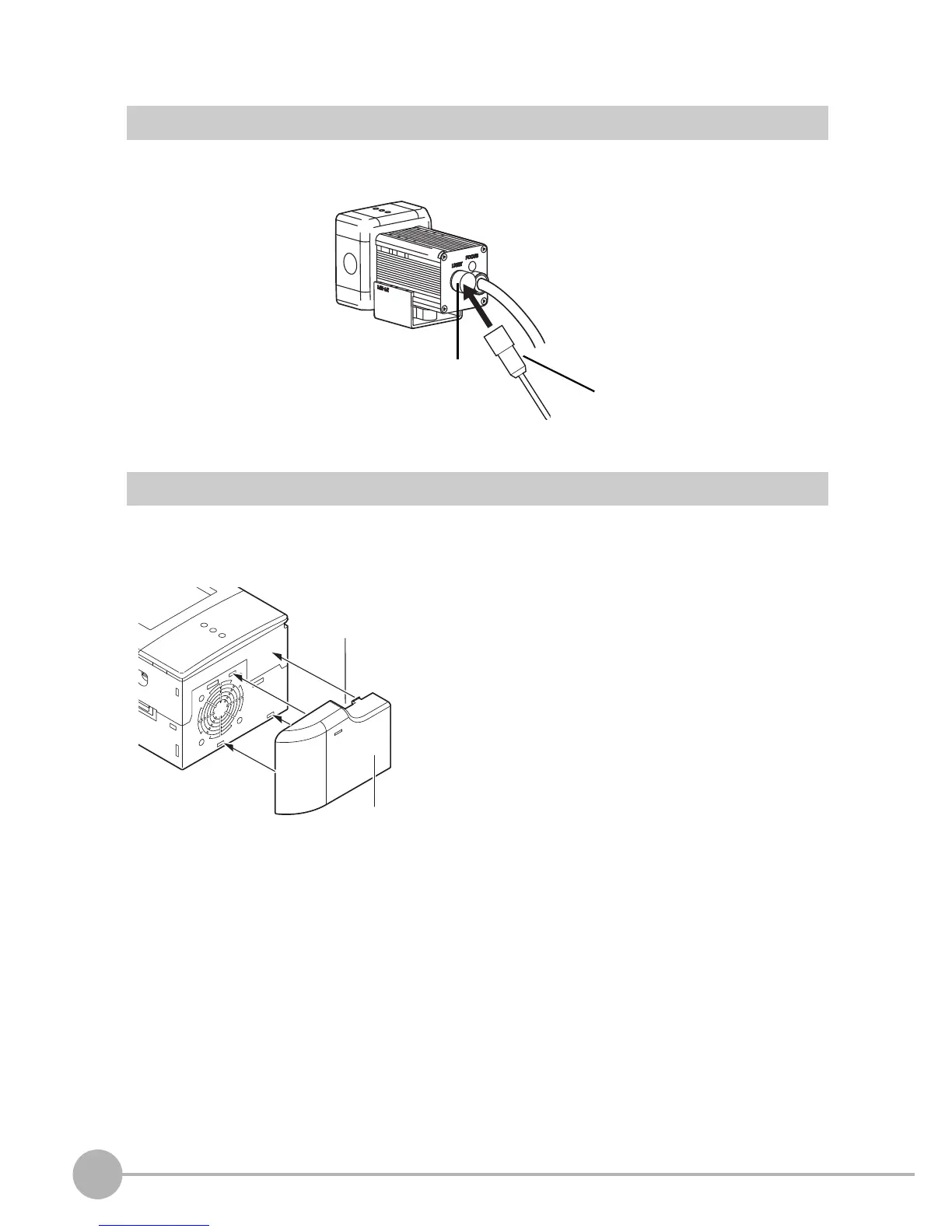

Connecting the Optional Lighting to the Camera
The optional lighting can be mounted to the rear connector of the camera (ZFX-SC50_/SC90_) with a single
motion. Since the power is supplied from the camera side, no power supply is required for the optional lighting.
Attaching the Exhaust Unit to the Controller
Attach the Exhaust Unit (supplied) to the Controller when installing other devices next to the Controller on the same
DIN track. The Exhaust Unit also serves as the Touch Pen Holder
1 Attach the Exhaust Unit to the four mounting holes on
the Controller.
Remove the cap from the optional light-
ing connector on the rear of the camera.
Connector of the
optional lighting
Touch Pen Holder
Exhaust Unit
