Setting Measurement Items
ZFX-C User’s Manual
3
SETTING THE MEASUREMENT CONDITIONS
55

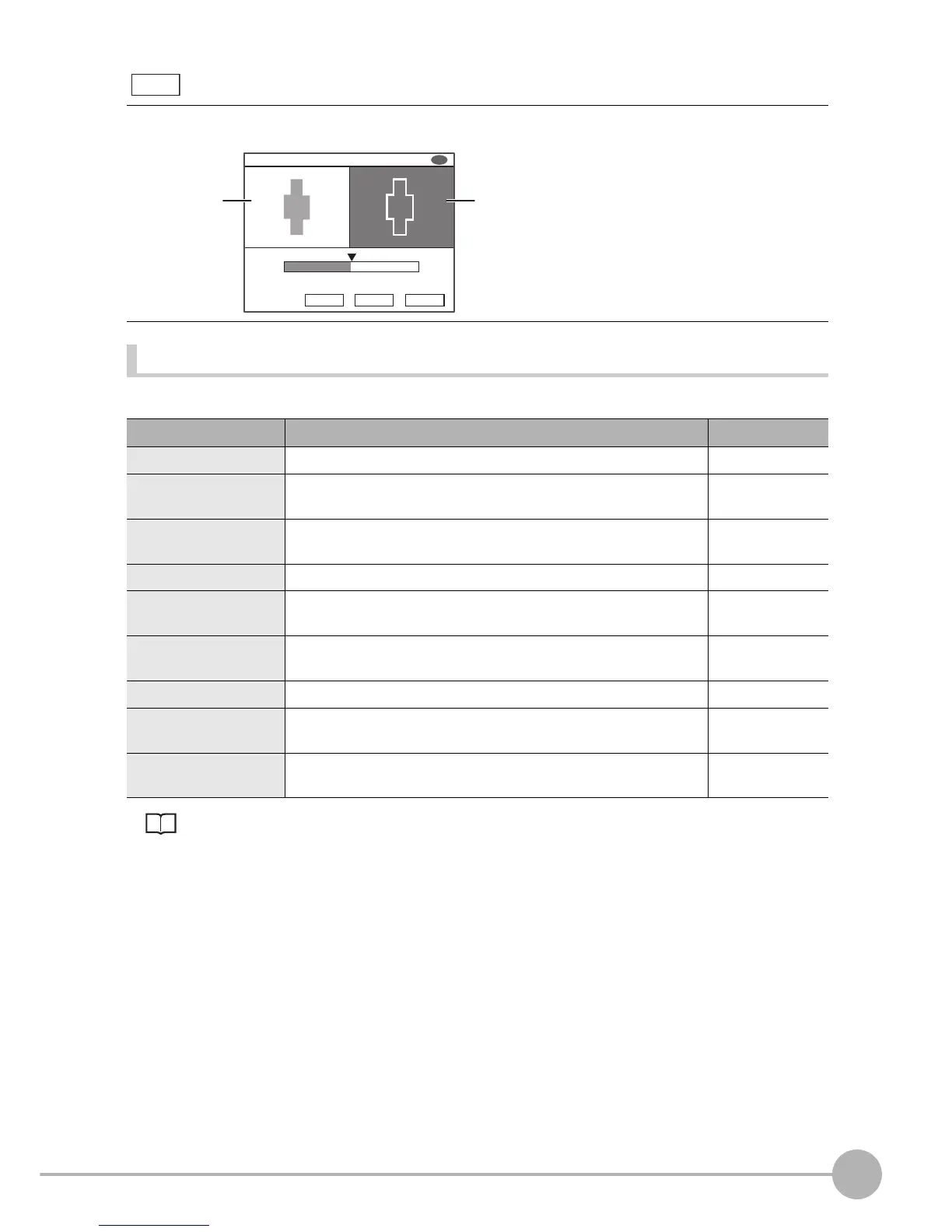

Noise level adjustment screen
Possible output results
The following values can be output when expressions are set.
Reference position/angle, position difference/angle difference p.50
Both the camera image and profile image are displayed. Adjust the noise level while checking whether or not the
part to be measured is picked up as the profile.
Item Description Message
Judgment result The judgment result is output. (0:OK, -1:NG, -2: not measured) Judge (JG)
Correlation The degree of match between the measurement image and model
image are output. (0 to 100)
Correlation (CR)
Measurement position The X, Y coordinates of the position where the model was found are
output. (-9999.999 to 9999.999)
Position X, Y
(X, Y)
Measurement angle The rotation angle of the model that was found is output. (-180 to 180) Angle (TH)
Search number The number of searches that have a degree of match at the match
lower limit value or above is output. (0 to 99)
Search count (N)
Reference position
The X, Y coordinates when the model was registered are output.
(-9999.999 to 9999.999)
Reference X, Y
(SX, SY)
Reference angle The angle when the model was registered is output. (-180 to 180) Ref. angle (ST)
Position difference The position difference obtained by "measurement position -
reference position" is output. (-9999.999 to 9999.999)
Position dif. X, Y
(DX, DY)
Angle difference The angle difference obtained by "measurement position - reference
position" is output. (-180 to 180)
Angle dif. (DT)
