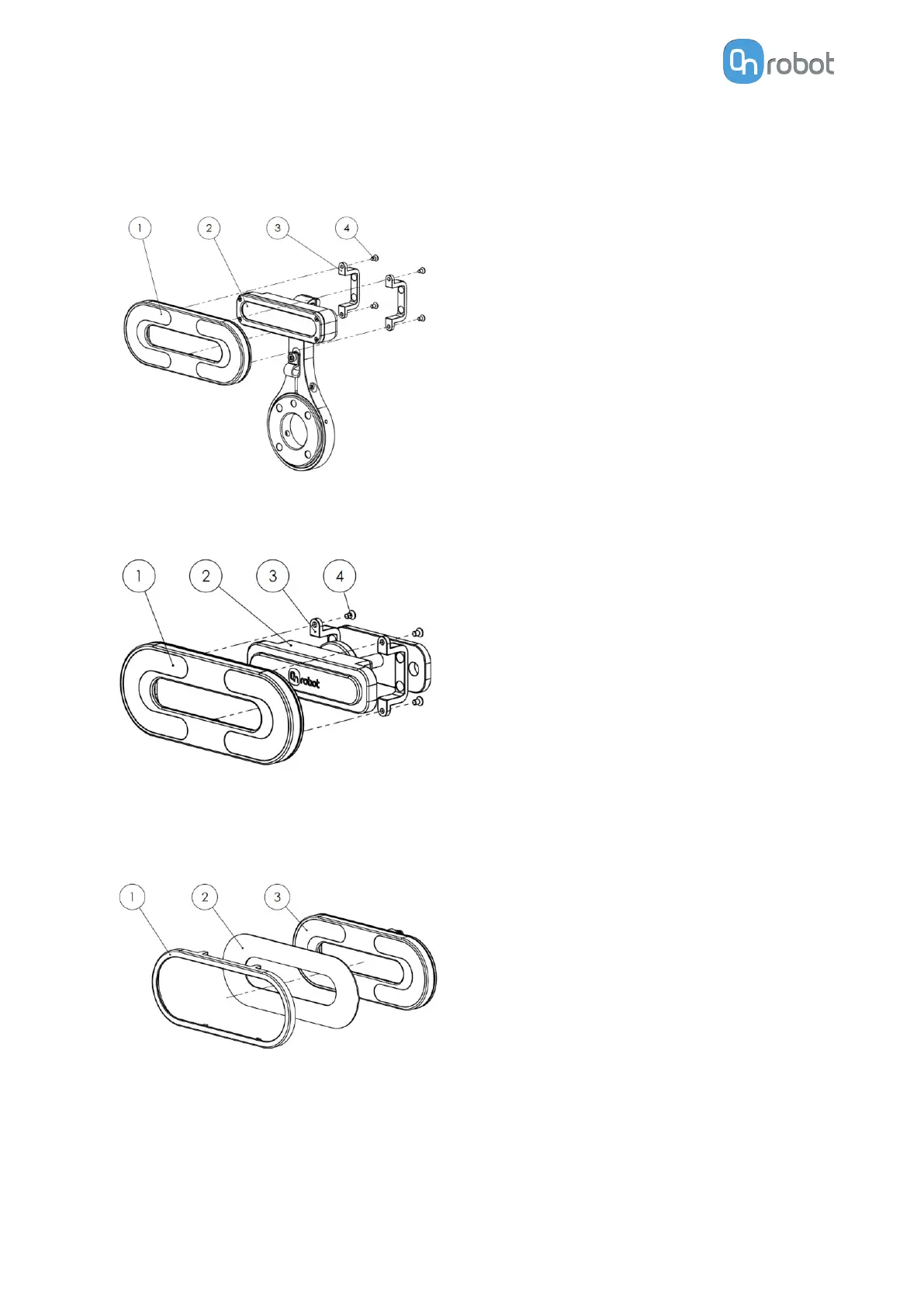

3.4.1. Eyes Lighting Kit – Camera Mount
Mount the Eyes Lighting Kit on the camera as follows:
Eyes Lighting Kit Camera Mount
1. Eyes Light
2. Eyes Robot Mount
3. Eyes Light attachment brackets
4. M3x5mm (BN20039 A4-70)
Use 0.5 Nm tightening torque.
3.4.2. Eyes Lighting Kit – External Mount
Eyes Lighting Kit External Mount
1. Eyes Light
2. Eyes Light wall mount
3. Eyes Light attachment brackets
4. M3x5mm (BN20039 A4-70)
Use 0.5 Nm tightening torque.
3.4.3. Optional – Diuser Mount
Optionally, mount the diuser as follows:
Diuser
1. Diuser cover
2. Diuser
3. Eyes Light
