1.

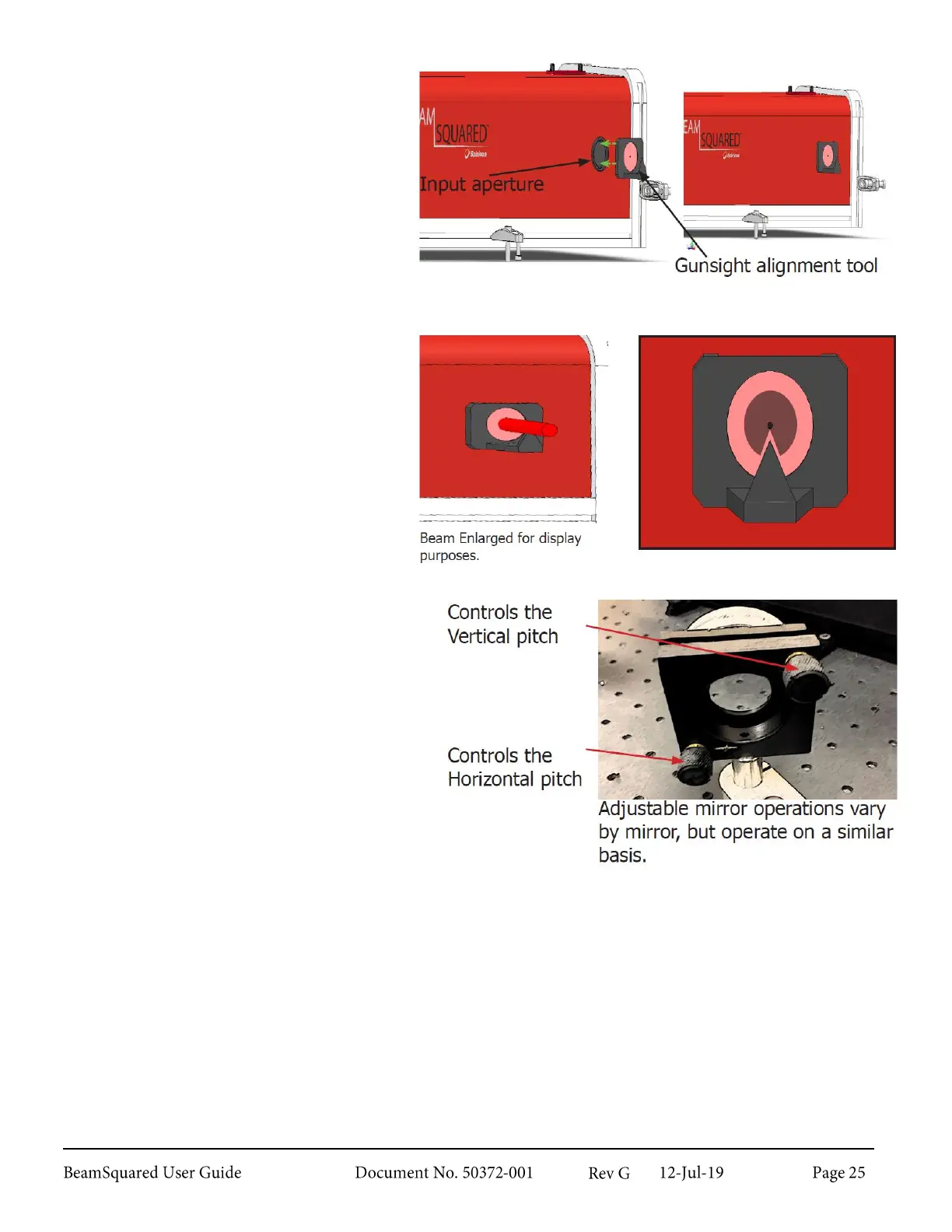

Place the Gunsight alignment tool
over the input aperture. Magnets will
hold the tool in place.
2.
As the beam contacts the alignment
sight, a shadow is cast on the pinhole
disk. When the center of the laser
beam and the tip of the shadow are
aligned on the pinhole, the beam is
aligned with the optical axis of the
unit (see section 2.5.3).
3.
Use the alignment mirrors to adjust
the beam direction until it passes over
the sight and into the pin hole.
Alternate adjustments between mirror
1 and 2. Mirror 1 to center over the
sight and mirror 2 to center over the
pinhole.
