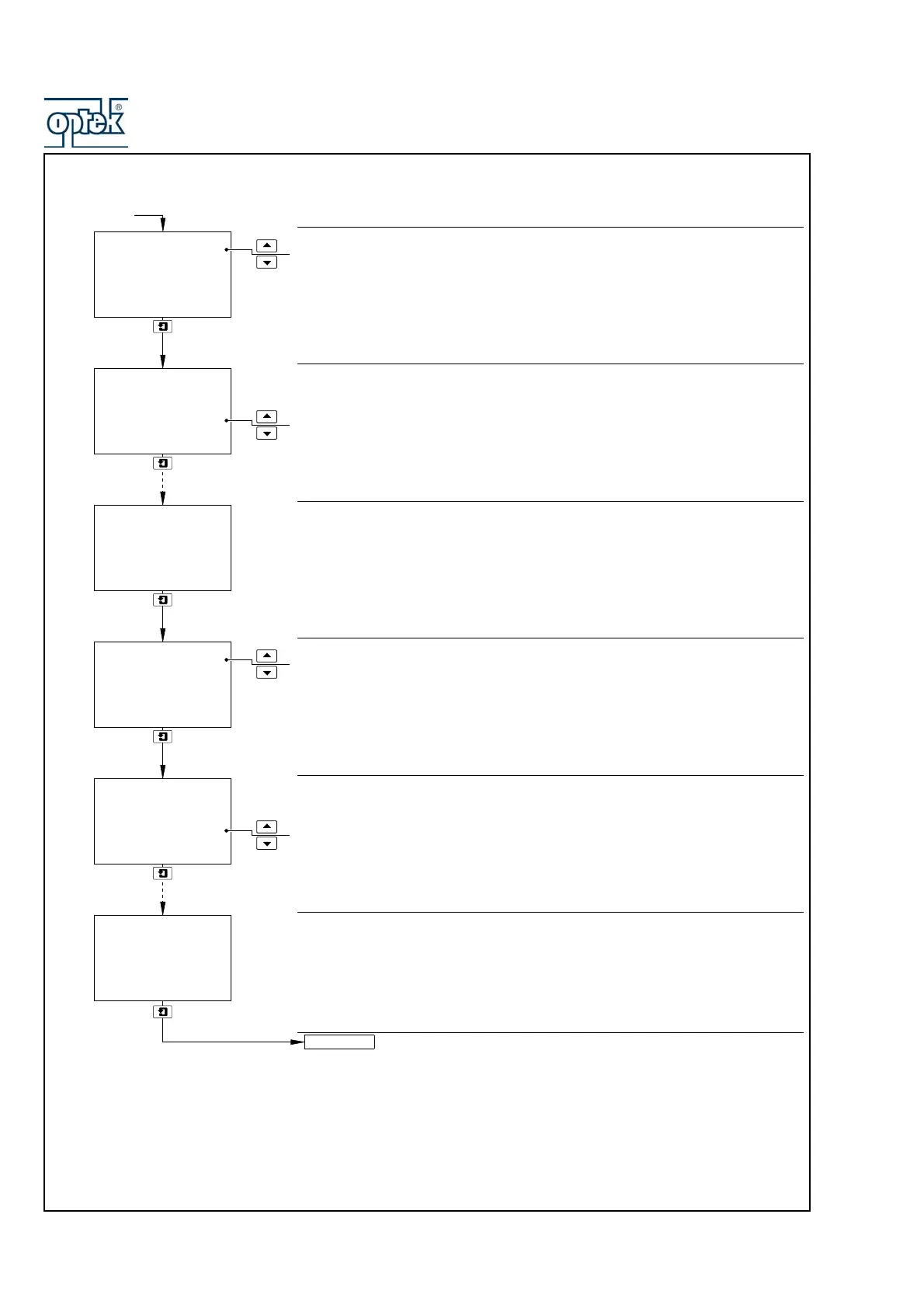

Temperature Value – Point 1
Deg. C (or Deg. F) and Adjust are shown alternately on the upper display line.
Use the and keys to adjust the displayed reading to the required temperature
value for point 1 on the curve.
Ratio Value – Point 1
Ratio and Adjust are shown alternately on the center display line. Use the and
keys to adjust the displayed reading to the required ratio value for point 1 on the
curve.
Temperature and Ratio Values – Points 2 to 6
Enter the temperature and ratio values for the remaining points in the user-
defined temperature compensation curve.
Conductivity Value – Point 1
mS/cm and Adjust are shown alternately on the upper display line. Use the and
keys to adjust the displayed reading to the required conductivity value for point 1
on the curve.
Concentration Value – Point 1
% and Adjust are shown alternately on the center display line. Use the and keys
to adjust the displayed reading to the required concentration value for point 1 on
the curve.
Conductivity and Concentration Values – Points 2 to 6
Enter the conductivity and concentration values for the remaining points in the
user-defined concentration compensation curve.
Continued on next page.
