Replacing a ZS3-2 Fan Module
9.

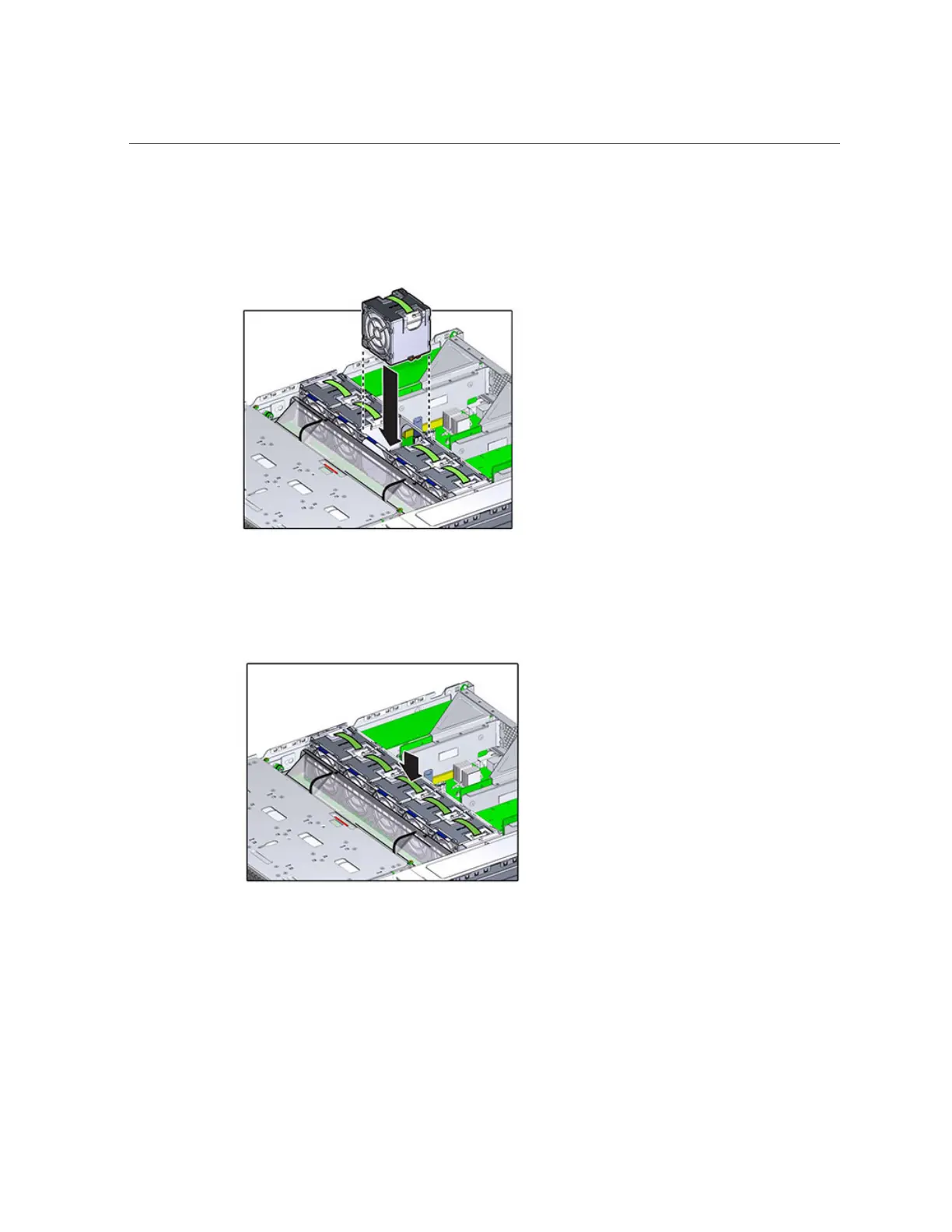

Align the replacement fan module into the fan tray slot. The green band is on the
top of the fan module and the arrow points to the rear of the chassis.
10.
Lower the fan module into the fan tray and press down until the module clicks
securely in the fan tray.
11.
Replace the top cover and tighten the two captive screws.
12.
Push the release tabs on the side of each rail and slowly push the storage
controller into the rack, making sure no cables obstruct the path of the
controller.
