Oracle ZFS Storage Appliance Service Manual

7420 Controller Hardware Overview
Mktg Part Number Description Mfg Part Number
SG-XPCIE2FC-QF8-Z 2-port 8Gb FC HBA 371-4325-02
SG-XPCIESAS-GEN2-Z 2-port SAS (x4) external HBA F375-3609-03
7105394 2-port SAS (x4) external HBA for
EU countries
7059331
X4446A-Z-N 4-port GigE UTP 7054739
X4242A 2-port CX2 4xQDR, HCA 594-6776-01
X1109A-Z 2-port 10GbE SFP+ NIC 7051223
X2129A XCVRm 850NM, 1/10GPS, Short
Reach, SFP
7015839
X5562A-Z 10GbE/1GbE SFP+ Transceiver, LR 594-6689-01
7420 PCIe Slot Order - When installing additional PCIe cards to your base 7420
configuration, cards must be added in a specific order.
Note - The 7420 M2 reserves slot 0 for a SAS-2 internal HBA, and slots 1 and 8 for two SAS-2
external HBAs (see “7420 PCIe I/O Cards” on page 224).

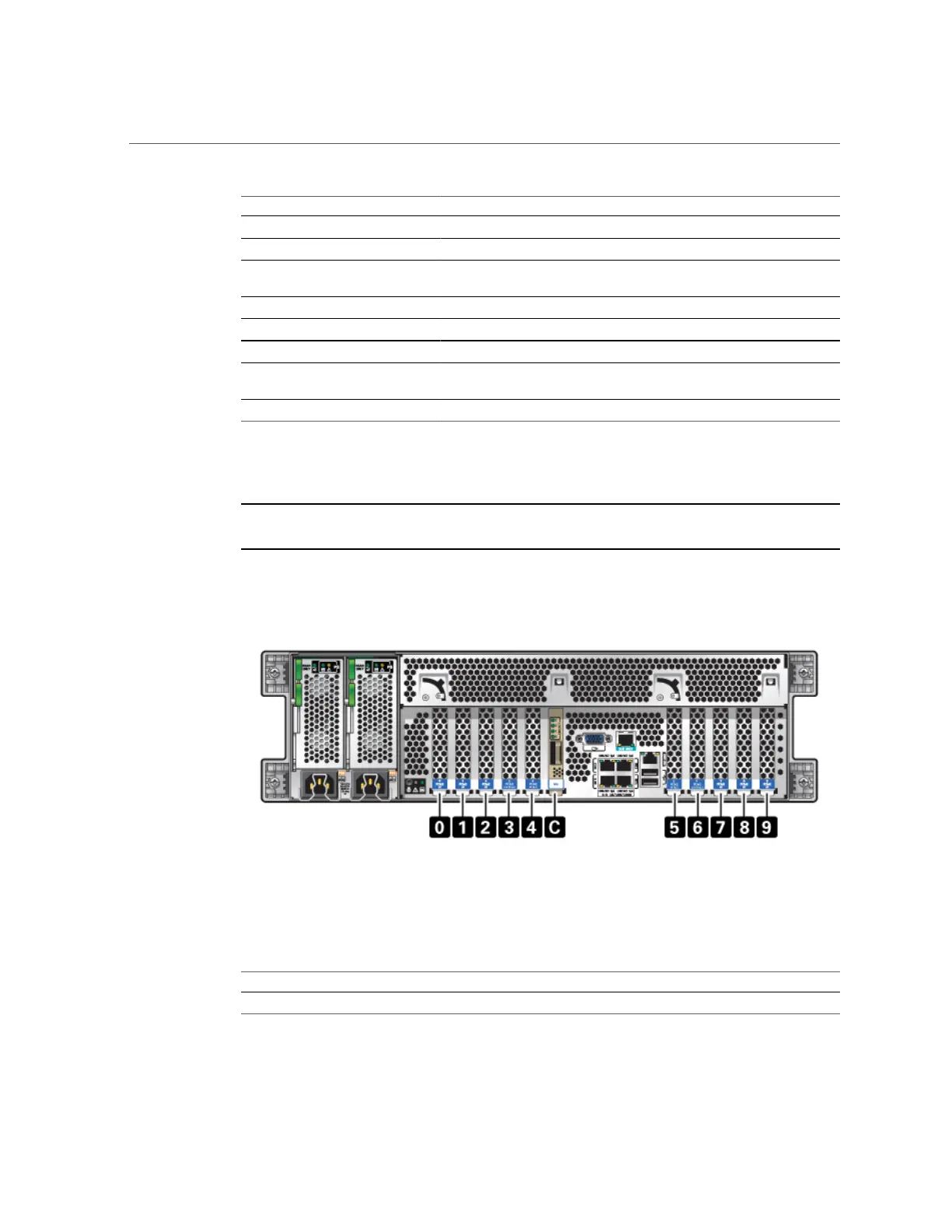

FIGURE 45
7420 Controller PCIe Cards and Slot Order
Install optional PCIe cards in the following order:
TABLE 33
7420 Controller Optional PCIe Cards and Slot Order
PCIe Card Slot Order
1. SAS-2 external HBA Slot 2, 7, 3, 6
228 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
