Oracle ZFS Storage Appliance Service Manual

7320 Controller Hardware Overview

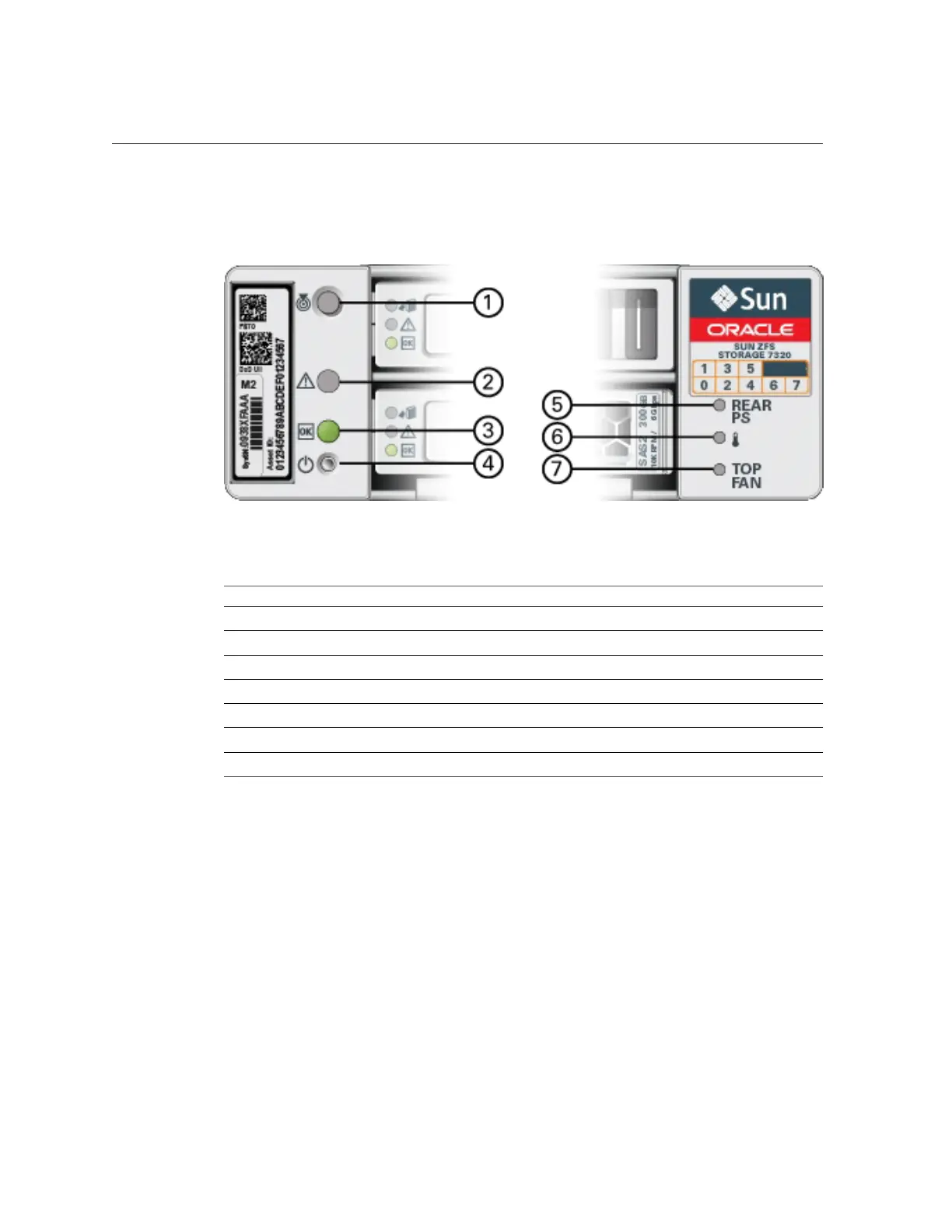

FIGURE 46
7320 Controller Front Panel LEDs
Figure Legend
1 Locate Button/LED
2 Service Required LED (amber)
3 Power/OK LED (green)
4 Power Button
5 Rear Power Supply
6 System Overtemperature LED
7 Top Fan
The following figure and legend identify the 7320 front panel drive locations. Two mirrored
hard disk drives (HDDs) that store the operating system reside in slots 0 and 1. Up to four read-
optimized cache solid state drives (SSDs) fill slots 2 through 5, in order. Slots 6 and 7 are empty
and must contain drive fillers.
Servicing the 7x20 Controller 233

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
