Oracle ZFS Storage Appliance Service Manual

7320 Controller Hardware Overview

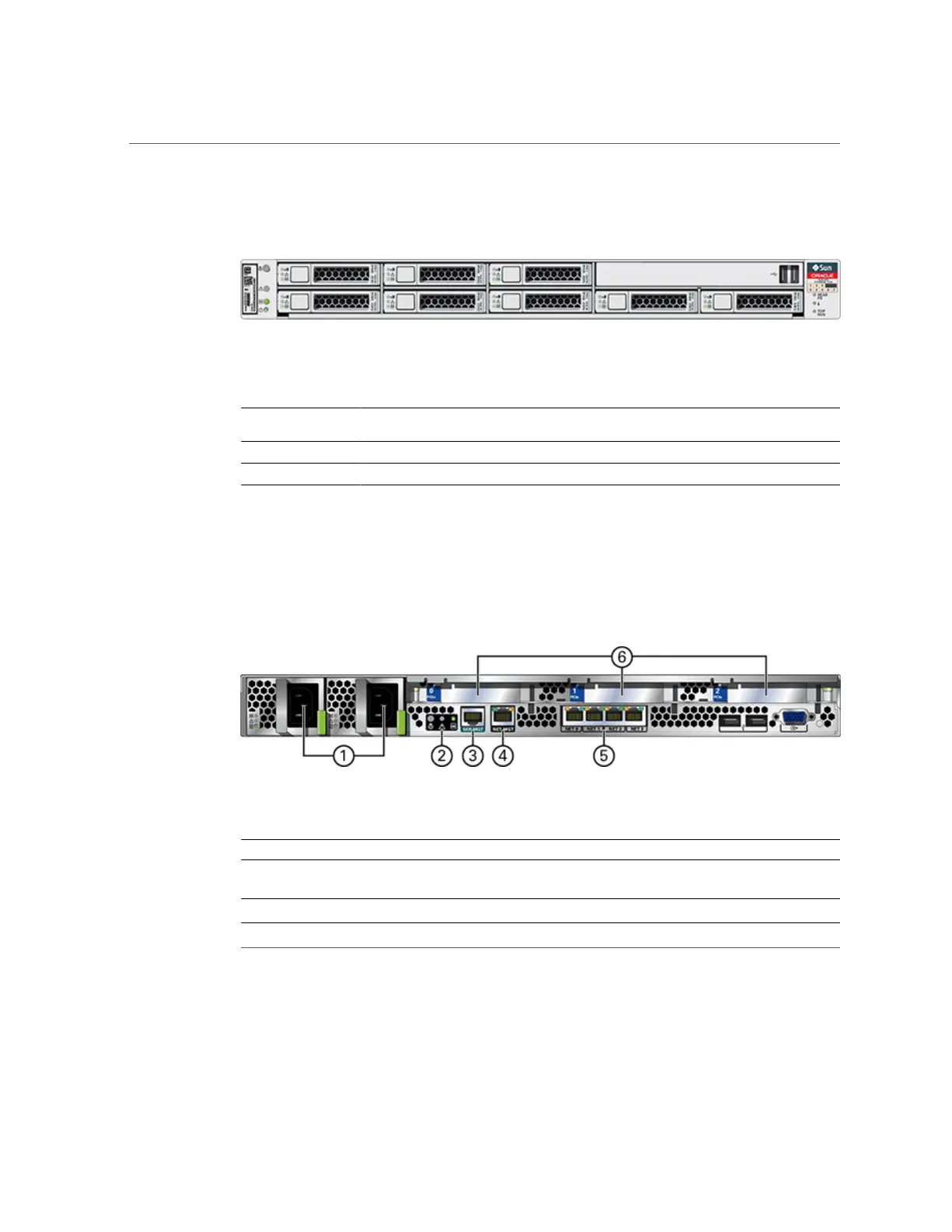

FIGURE 47
7320 Controller Front Panel Drive Locations
TABLE 37
7320 Controller Front Panel Drive Locations
Disk Drive
Locations
HDD1 HDD3 HDD5
HDD0 HDD2 HDD4 HDD6 HDD7
7320 Back Panel Components - Following is an illustration of the 7320 storage controller rear
panel. The Sun 375-3609 belongs in slot 2, cannot be installed in any other slots, and a second
is not offered as an option.
FIGURE 48
7320 Controller Rear Panel
Figure Legend
1 Power supplies 4 Network management (NET MGT) 10/100 BASE-T
Ethernet port
2 SC summary status LEDs 5 Ethernet ports
3 Serial management port 6 PCIe slots
Cluster Interface Card Compatibility - The 7320 controller contains a Version 2 cluster
interface card. This card cannot be replaced with a Version 3 cluster interface card.
234 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
