Oracle ZFS Storage Appliance Service Manual

7320 Controller Hardware Overview
For information about how to connect cables to form a cluster, see “Connecting Cluster Cables”
in Oracle ZFS Storage Appliance Cabling Guide.
Ethernet Ports
There are four RJ-45 Gigabit Ethernet connectors (NET0, NET1, NET2, NET3) located on
the motherboard that operate at 10/100/1000 Mbit/sec. These network interfaces must be
configured before use.
Network Management Port
The network management connector (NET MGT) is an RJ-45 10/100 BASE-T Ethernet port on
the motherboard and provides an alternate terminal interface to the SP console.

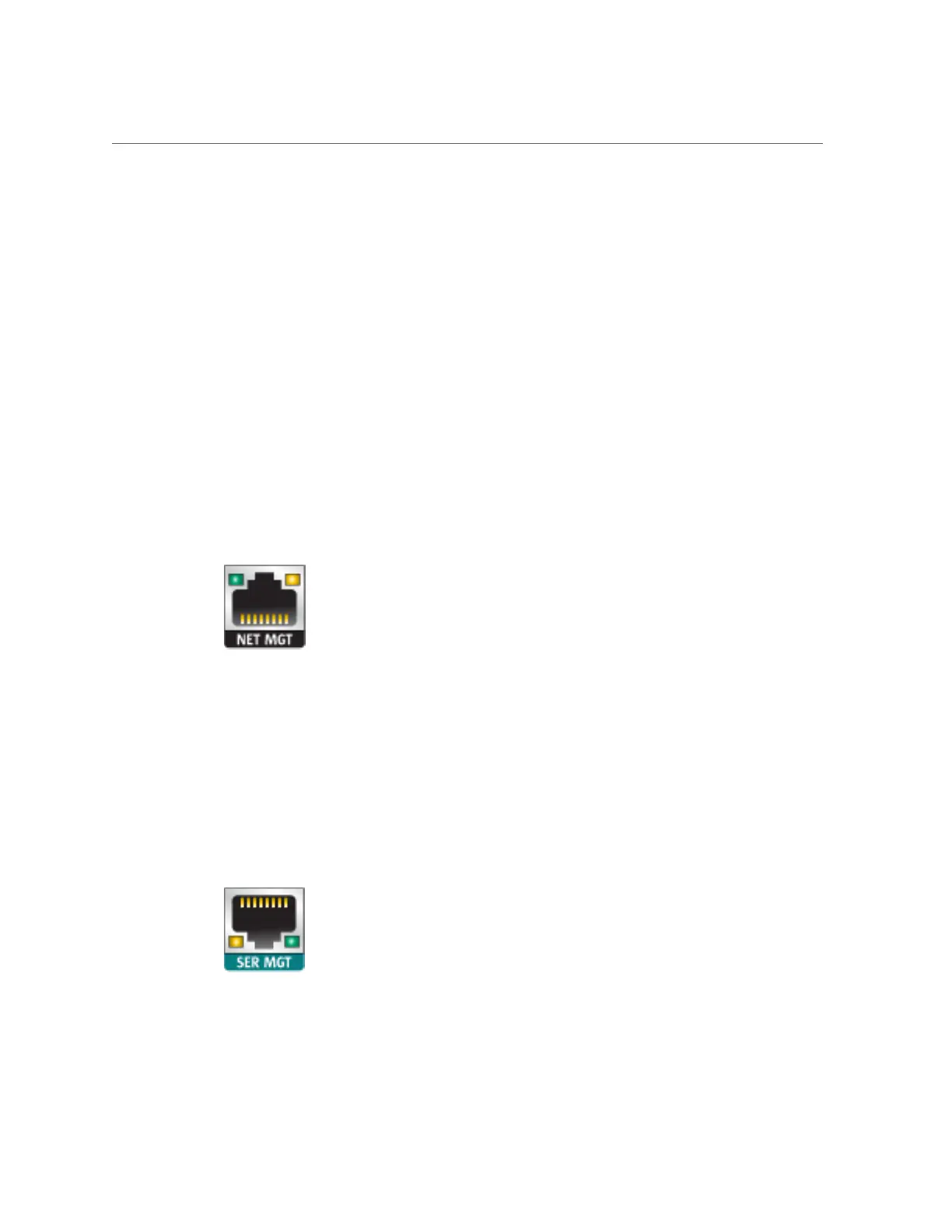

FIGURE 49
7320 Controller Network Management Port
Serial Management Port
The serial management connector (SERIAL MGT) is an RJ-45 connector and is a terminal
connection to the SP console.
FIGURE 50
7320 Controller Serial Management Port
Servicing the 7x20 Controller 235

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
