Oracle ZFS Storage Appliance Service Manual

Disk Shelf Hardware Overview

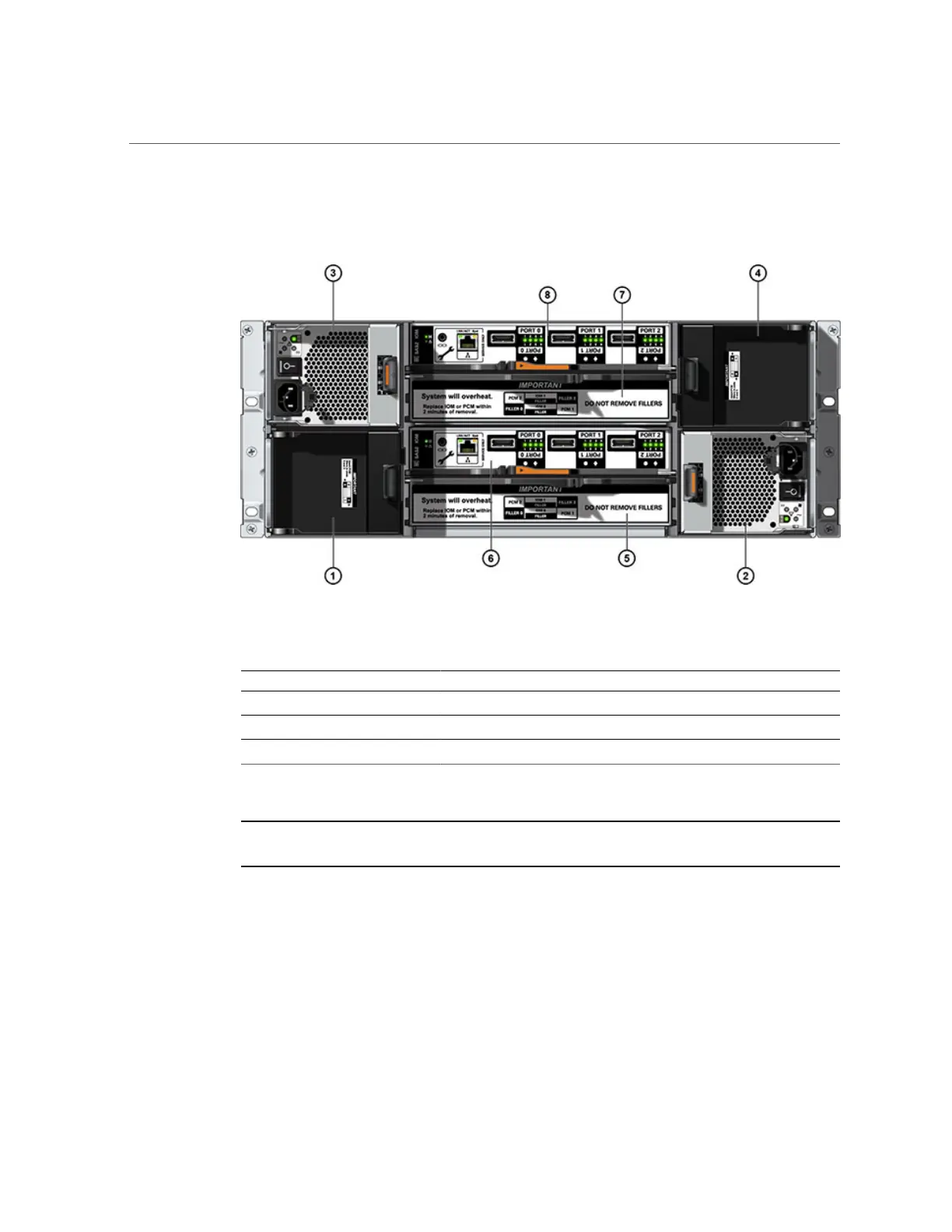

FIGURE 68
Oracle Storage Drive Enclosure DE2-24C Back Panel
Figure Legend Figure Legend Figure Legend
1 Power Supply Filler Panel, Slot 0 4 Power Supply Filler Panel, Slot 3 7 I/O Module Filler Panel
2 Power Supply with Fan Module 1 5 I/O Module Filler Panel 8 I/O Module 1
3 Power Supply with Fan Module 2 6 I/O Module 0
Note - It is especially important that power supplies and their filler panels are in the correct
slots.
276 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
