Disk Shelf Hardware Overview

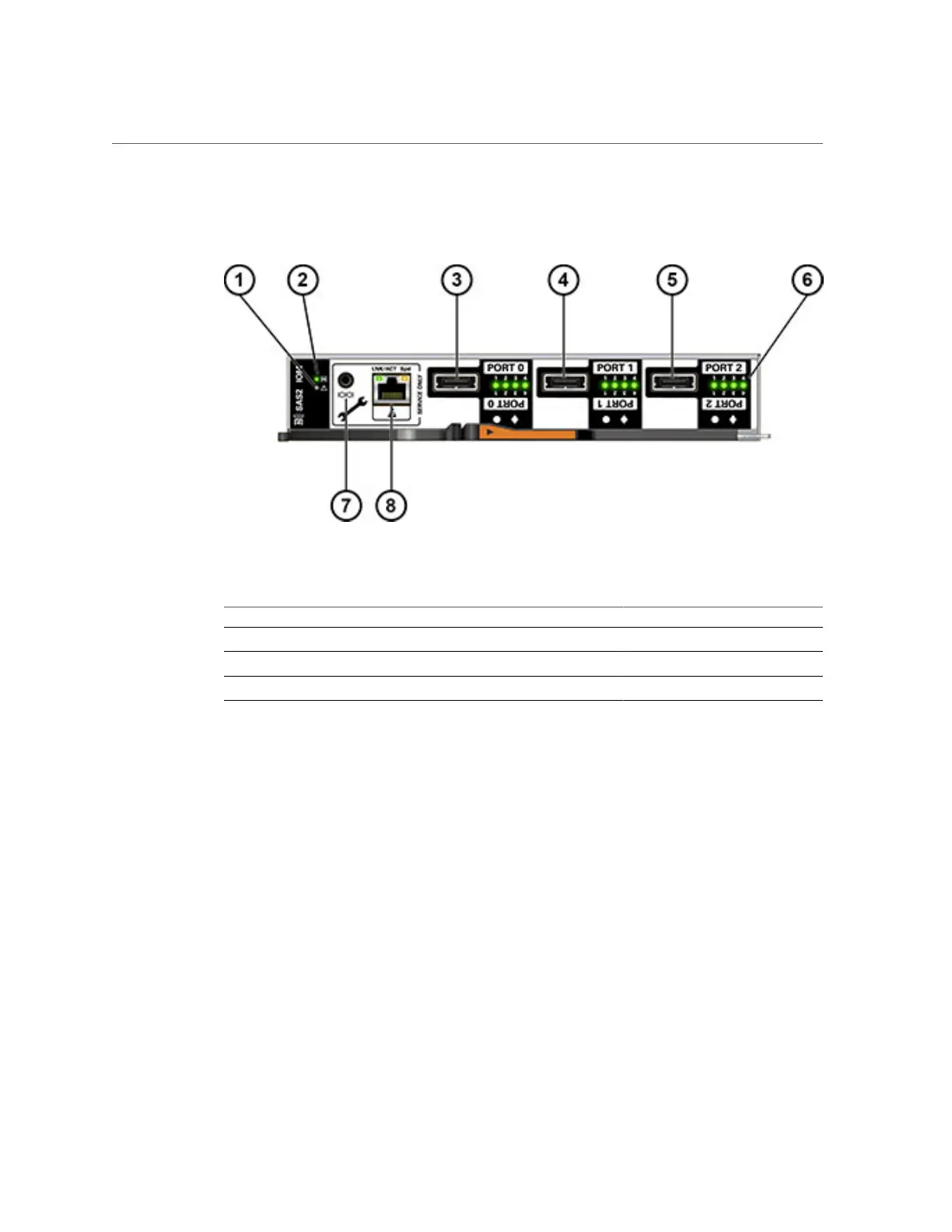

FIGURE 73
I/O Module Indicators
Figure Legend Figure Legend Figure Legend
1 Fault / Locate indicator 4 SAS-2 Port 1 7 For Oracle service only
2 Power / OK indicator 5 SAS-2 Port 2 8 For Oracle service only
3 SAS-2 Port 0 6 Host port activity indicators
Disk Shelf SIM Board Indicators - The following disk shelves have SIM boards:
Sun Disk Shelf
The following figure shows the SIM board indicators for the Sun Disk Shelf.
Servicing the Disk Shelves 281
