Oracle ZFS Storage Appliance Service Manual

Disk Shelf Hardware Overview

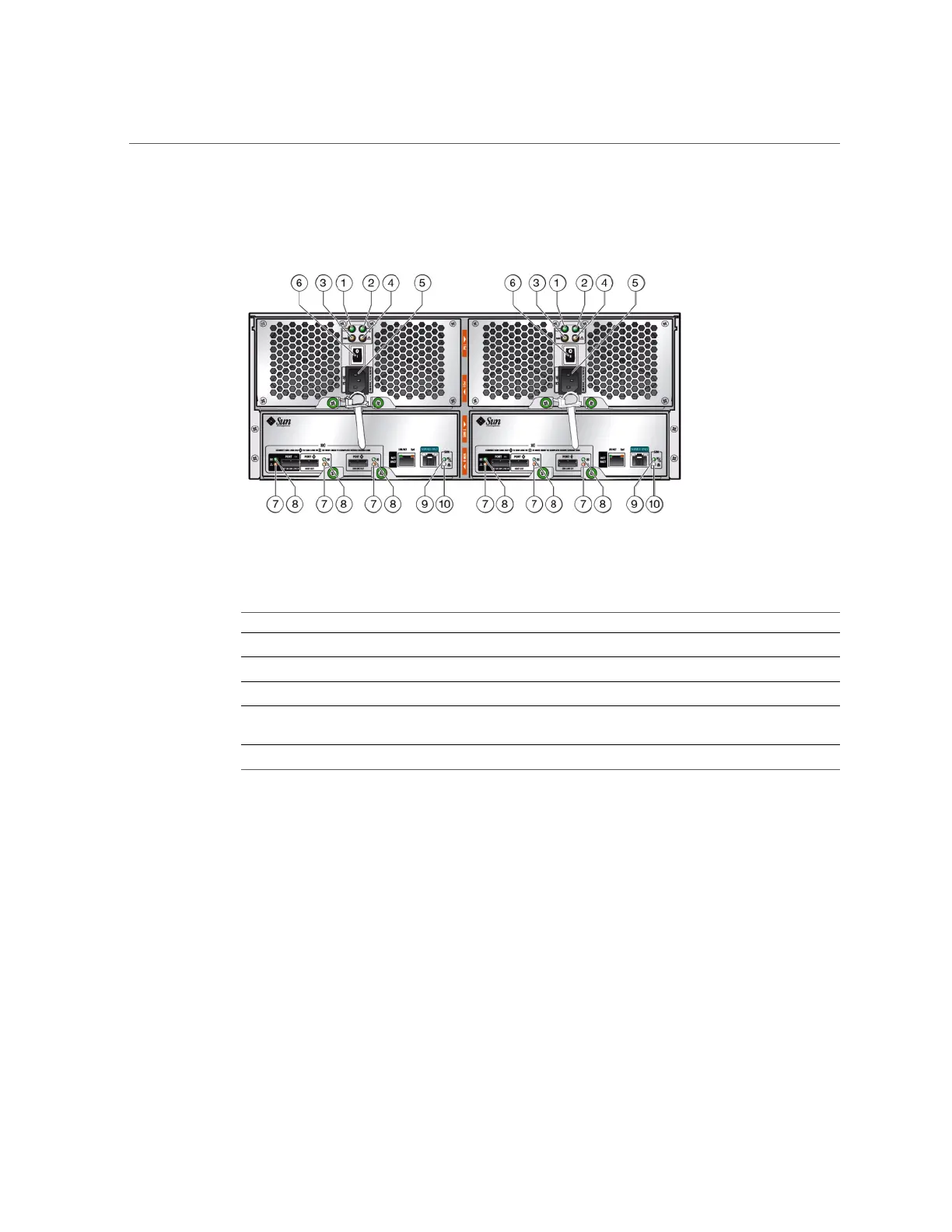

FIGURE 74
SIM Board Indicators
Figure Legend Figure Legend
1 AC power indicator 6 Power switch
2 DC power indicator 7 Port fault indicator
3 Fan fault indicator 8 Port OK indicator
4 Power supply fault indicator 9 SIM board OK indicator (green)/SIM board fault
indicator (amber)
5 Universal power connector 10 SIM locator indicator
Disk Shelf Power Supply Indicators - The following figure shows power supply with fan
module indicators for these disk shelves:
■
Oracle Storage Drive Enclosure DE2-24P
■
Oracle Storage Drive Enclosure DE2-24C
282 Oracle ZFS Storage Appliance Customer Service Manual • July 2016

Oracle ZFS Storage Appliance Specifications

General

Connectivity	10GbE, 40GbE, InfiniBand, Fibre Channel
Protocols	NFS, SMB, iSCSI, Fibre Channel, HTTP
Operating System	Oracle Solaris
Data Protection	snapshots, clones, remote replication
Data Reduction	Inline compression, deduplication
High Availability	Redundant hardware components (controllers, power supplies, fans). Automatic failover between controllers. Hot-swappable drives and components. Cluster configurations for increased availability and scalability.
Management Interface	Web-based GUI, CLI, REST API
Storage Type	Hybrid (SSD + HDD), All-Flash
Storage Capacity	Up to several petabytes
Encryption	AES-256 encryption at rest
