Oracle ZFS Storage Appliance Service Manual

ZS4-4 Controller Hardware Overview

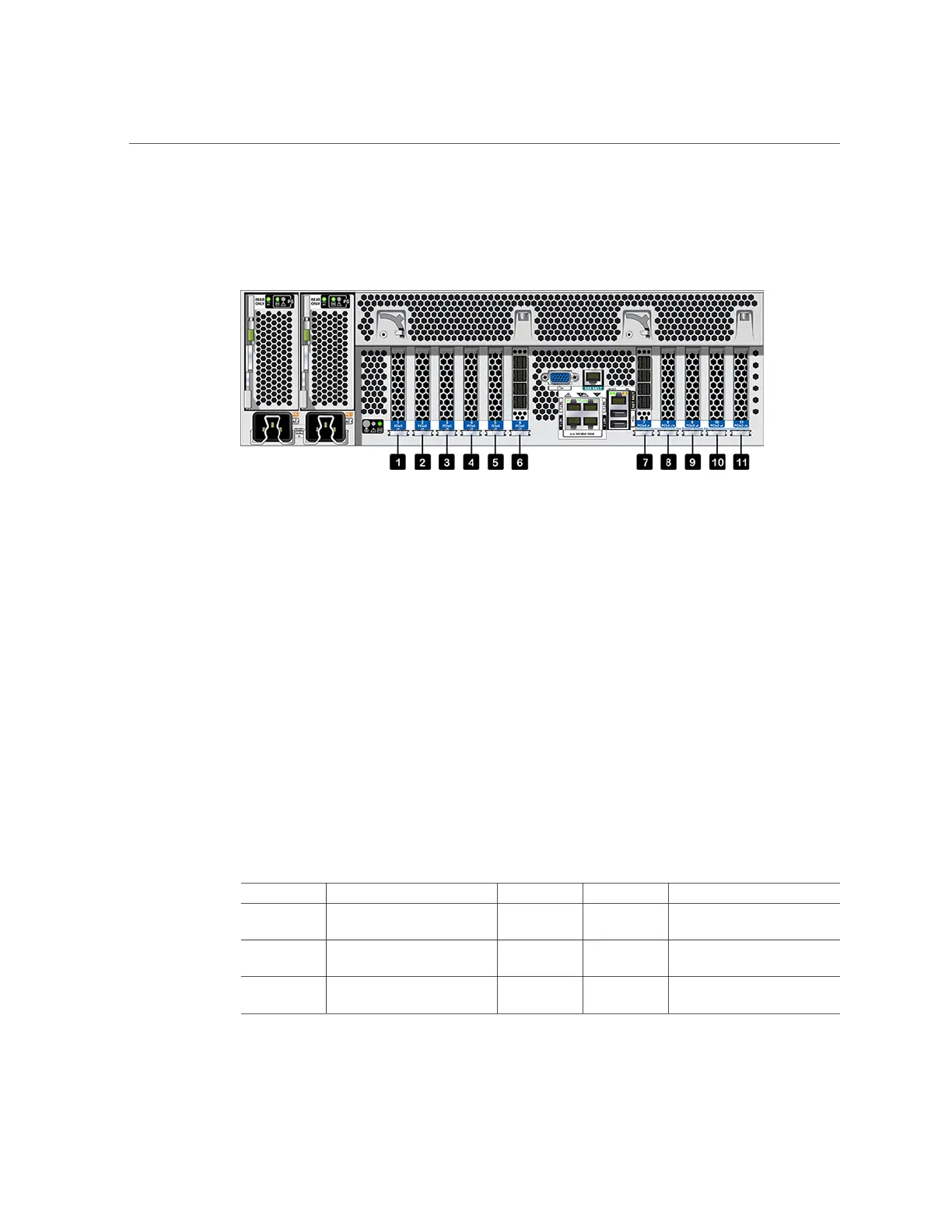

The following figure shows the PCIe I/O slot numbers.
FIGURE 8
ZS4-4 PCIe I/O Slot Numbers
PCIe Slot Order - Install optional PCIe cards in the following order:
■
Install additional 4x4 SAS-2 HBAs in slot 9, then slot 3.
■
Install InfiniBand CX3 HCAs into the first available client-option slot starting with slot 11,
then slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
■
Install 16Gb FC HBAs into the first available client-option slot starting with slot 11, then
slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
■
Install 10Gb Ethernet Optical NICs into the first available client-option slot starting with
slot 11, then slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
■
Install 10Gb Ethernet Copper NICs into the first available client-option slot starting with
slot 11, then slot 8, slot 5, slot 1, slot 10, slot 3, slot 9.
ZS4-4 PCIe Base and Optional Configurations - The following table describes the PCIe
base and optional slot assignments for ZS4-4 standalone and cluster configurations. PCIe slot
numbering begins with slot 1.
See the legend for a description of the interconnect types and option codes shown in the Type
column.
Slot Description Max Type Note
1 2-port InfiniBand CX3 HCA 4 A Optional recommended front-
end
1 2-port 10Gb Ethernet Optical
NIC
4 C Optional recommended front-
end
1 2-port 10Gb Ethernet Copper
NIC
4 D Optional recommended front-
end
80 Oracle ZFS Storage Appliance Customer Service Manual • July 2016
