Panasonic AJ-SD93P/E - Page 38

INF-25

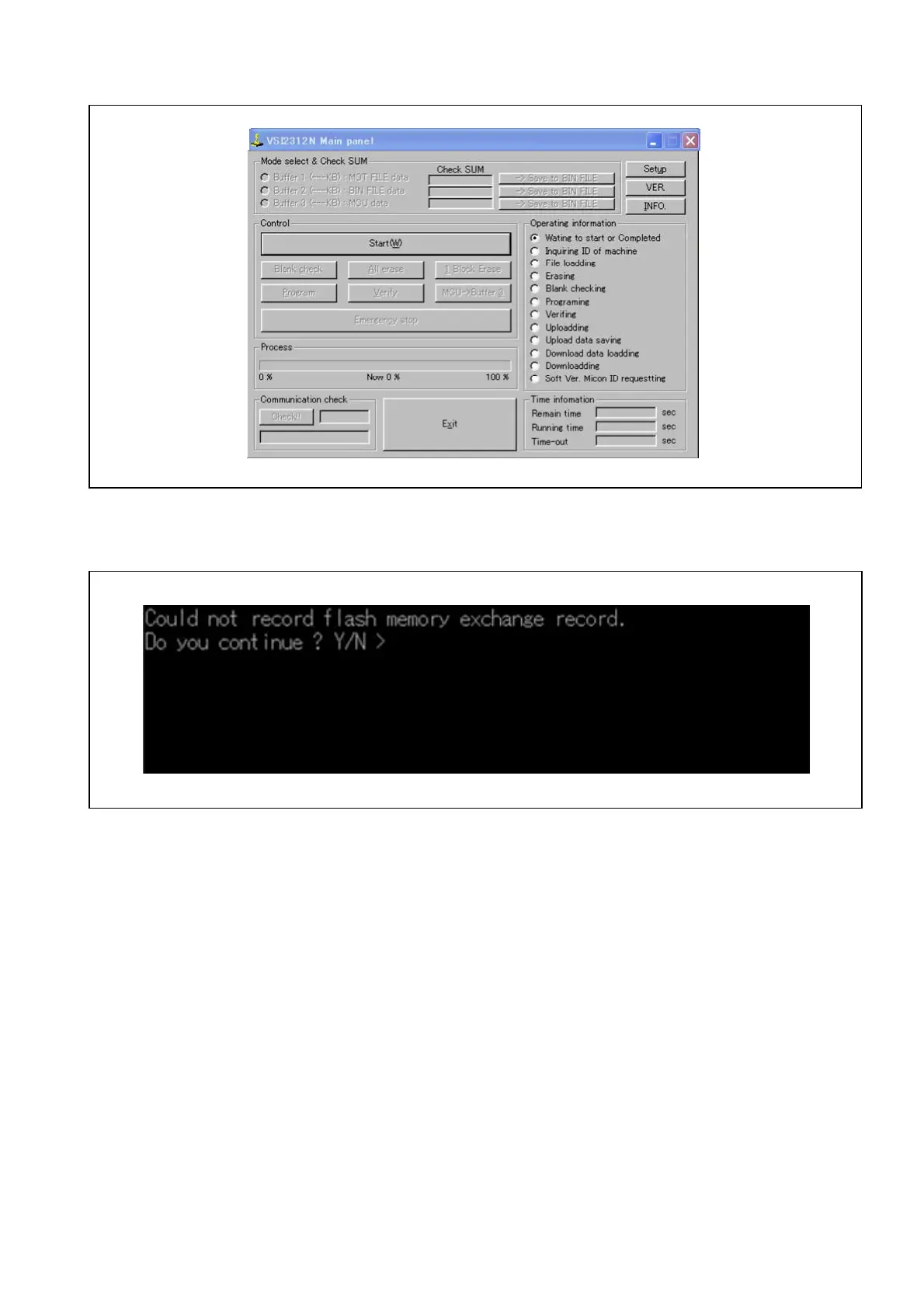

6. Press “OK” button so that the following screen appears.
Note: The check sum is not calculated for the SERVO microcomputer.
Figure 12-2C-3
7. Click “Start” button as shown in figure 9-1C-3 so that the following comment appears in the MS DOS screen.
Do you continue? Y/N>
Figure 12-2C-4
