Operating Instructions Intelligent Controller
158
Conguring the system
Setting

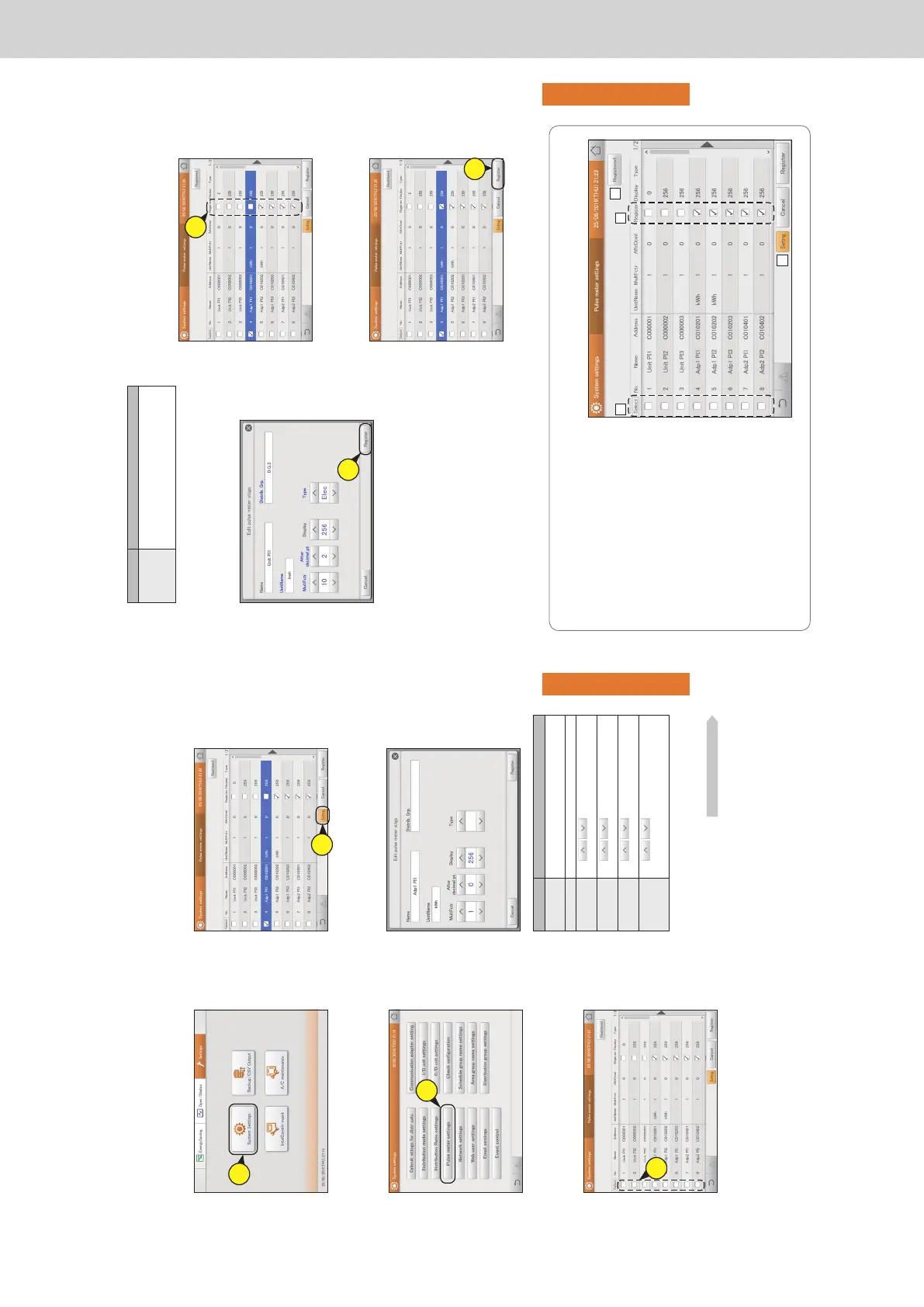

Basic settings for the pulse meter Make allocations between pulse meters and distribution groups.
4
Touch [Setng].
z The “Edit pulse meter sttgs” dialogue is displayed.
4
5
Change the settings.
Item Explanation
Name Change the pulse meter name.
You can enter up to 16 letters or numbers.
UnitName Enter the units to be displayed for the pulse meter. MultFctr
Use
to set the multiplying factor to
be displayed for the pulse meter.
After decimal pt
Use
to set the number of decimal
places to be displayed for the pulse meter. (0 to 3)
Display
Use
to set the order when displayed
in a list.
Type
Use
to set the pulse meter type.
Select from “Elec”, “Gas”, “PwGn”, “TpWt”, and “Ice”.
Continued on next page
1
Touch [System Settings] in “Settings”.
z The “System settings” screen is displayed.
1
2
Touch [Pulse meter settings].
z The “Pulse meter settings” screen is displayed.
2
3
Put a check mark in the “Select” column.
z Select the pulse meter to be edited.
3
159
Conguring the system
Setting
Item Explanation
Distrib. Grp. Congure a distribution group to be measured.
The “Distrib. Grp.” dialogue is displayed when you touch this. Select the distribution group to be measured and touch [Select].
6
Touch [Register].
z The “Edit pulse meter sttgs” dialogue closes. z To cancel the settings, touch [Cancel].
6
7
Put a check mark in the “Register” column.
z Put a check mark next to the pulse meters you want to
enable.
7
8
Touch [Register].
z To cancel the settings, touch [Cancel].
8
The “Pulse meter settings” screen A: A list of pulse meters with a check mark in the
“Register” column is displayed.
B: Put a check mark next to the pulse meters you
want to edit.
C: Put a check mark next to the pulse meters you
want to enable.
D: The “Edit pulse meter sttgs” dialogue is
displayed when you touch this.
B C
A
D
Basic settings for the pulse meter
