Getting started
FP Web-Server V2.810 EN 11
 Modem gateway functions to other PLCs equipped with an FP
Web-Server
FP Web-Server functions:

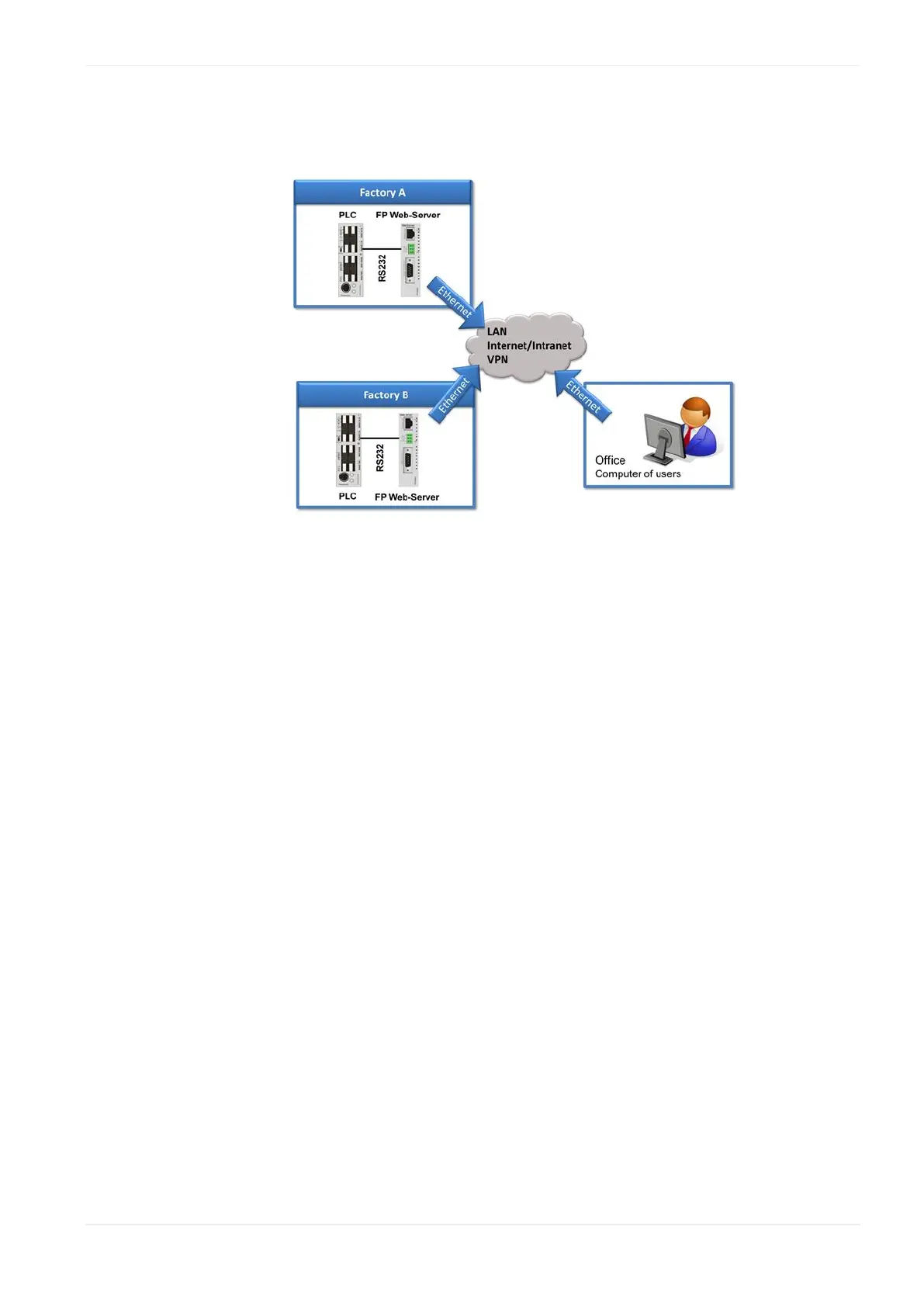

The FP Web-Server works as an interface between a LAN or a WAN network
(Internet/ Intranet) and all PLCs of the FP series. The following main
features are supported:
RS232C/ Ethernet interface: (see p. 123)
 RS232C to Ethernet redirection/ conversion
 Programming and visualization tools access via Ethernet
 Optional: password protection and IP lock security
 Optional: second, full transparent port
Web-Server: (see p. 81)
 PLC data presented as HTML pages
 Access via standard Internet browser
 HTML entry field for PLC data exchange
 Optional: password protection
 Optional: PLC data display using Java applets
 PLC data delivery as XML files
E-mail: (see p. 47)
 PLC can send out an e-mail
 PLC defined or pre-stored e-mail text
