PPP server with modem:

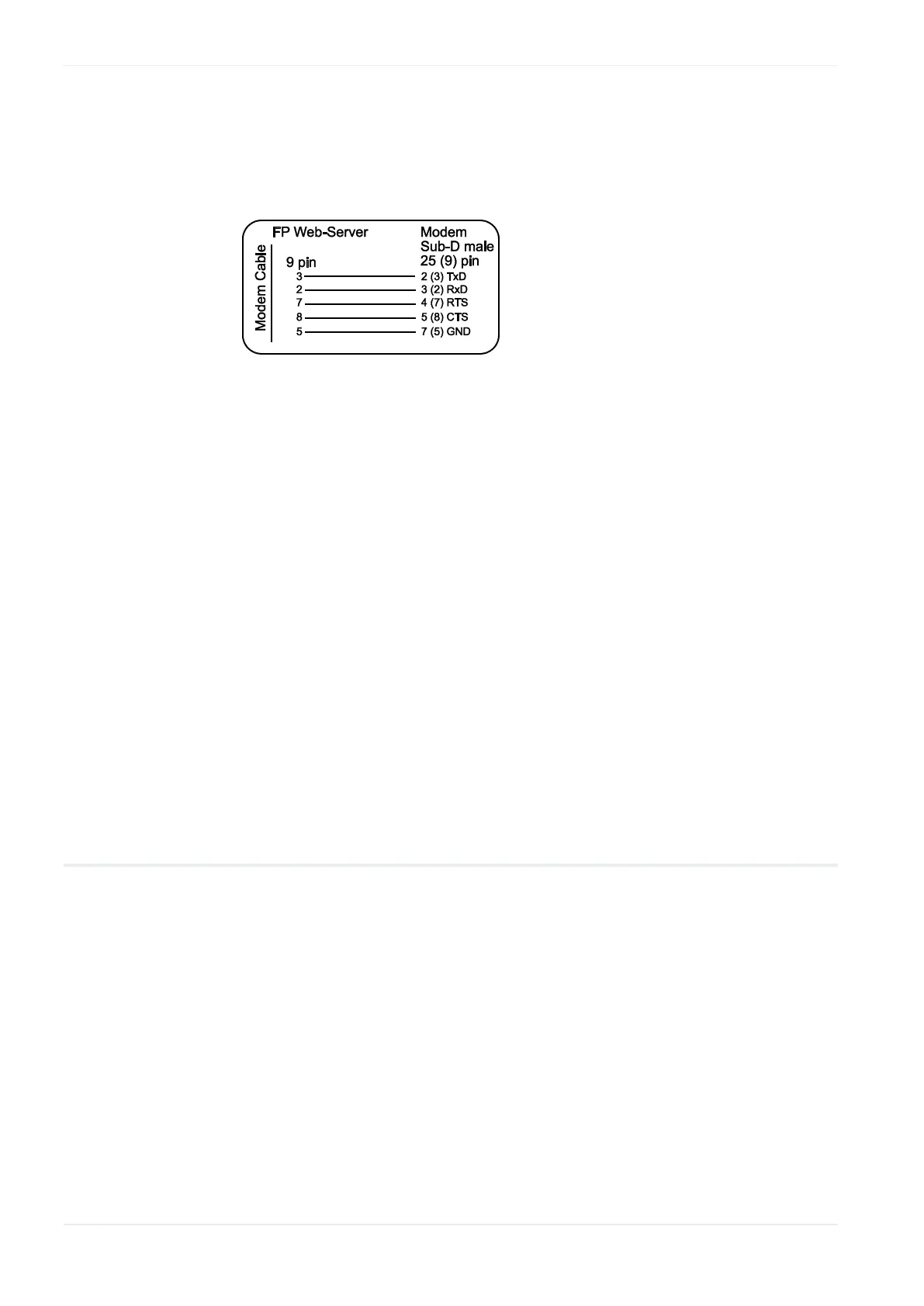

Use a standard computer/ modem cable to connect the FP Web-Server to a
modem:
PPP server without modem:
Use a null modem cable to connect the FP Web-Server directly to a
computer:
A minimum, self-made adapter can be built by using two female
connectors and 9-pin SUB-D connectors. The wiring should be as
follows: 2-3; 3-2; 5-5. (This is the minimum number of wires required.)
Or use a standard null modem adapter with full 25-pin, female RS232C
connectors on both sides to create a connection between the FP
Web-Server (with 25/9 adapter) and the computer's COM port.
The full wiring of a standard 25-pin null modem adapter should be as
follows:
1-1; 2-3; 3-2; 4+5-8; 6-20; 7-7; 8-4+5; 20-6.
20.3.3 DIP switches
Upon delivery, the DIP switches of the FP Web-Server are set to ON
(factory setting). To distinguish between hardware type 1 and hardware
type 2, please refer to hardware version (see p. 16).
