Getting started
14 FP Web-Server V2.810 EN

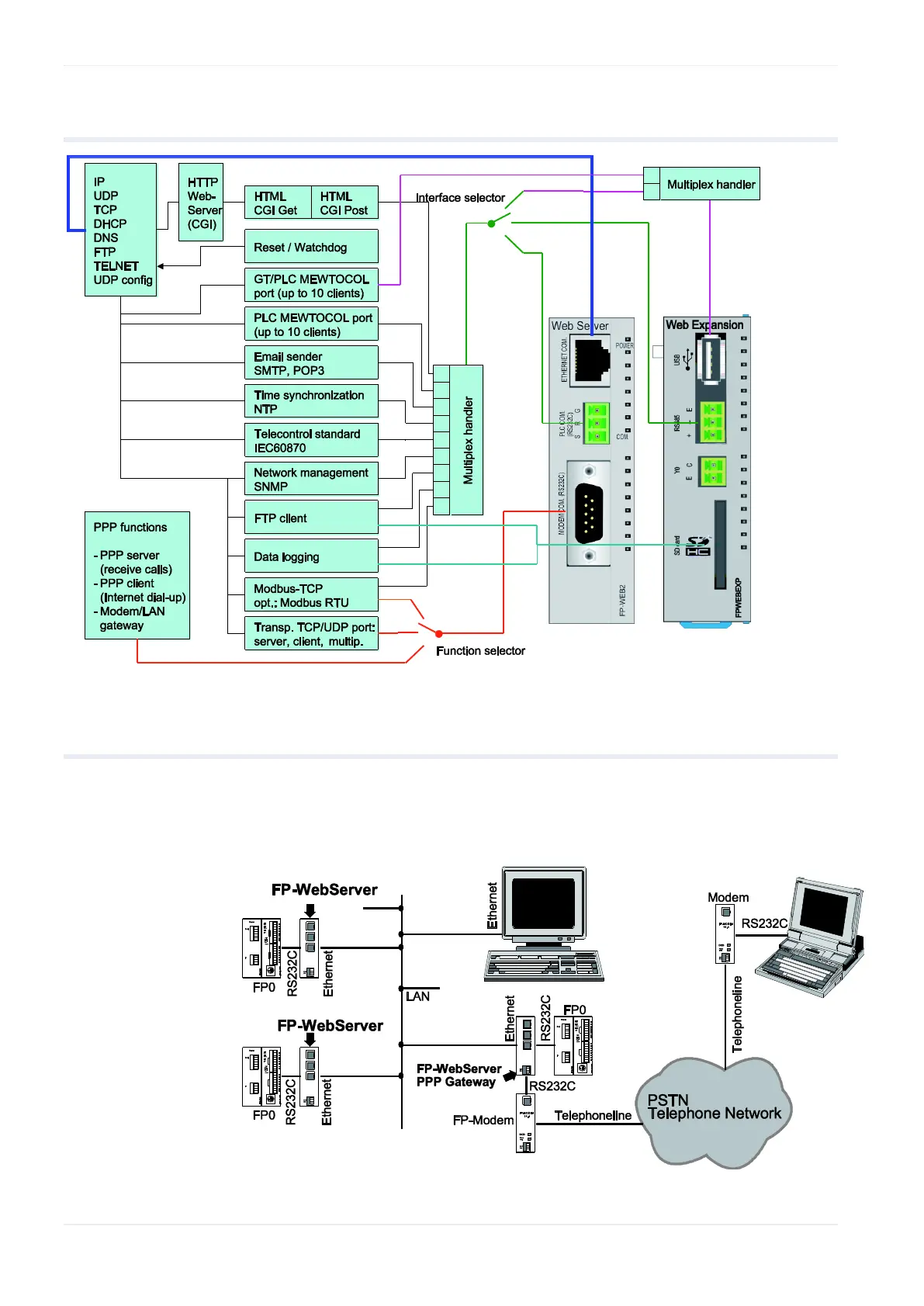

1.5 FP Web-Server block diagram
1.6 System sample network
Any combinations of the LAN and the dial-up functions are possible, e.g. an
Ethernet network connecting several FP Web-Servers with one FP
Web-Server set up as a gateway for the dial-up connections.
