Hardware description
18 FP Web-Server V2.810 EN
2.1.4 Parts and functions

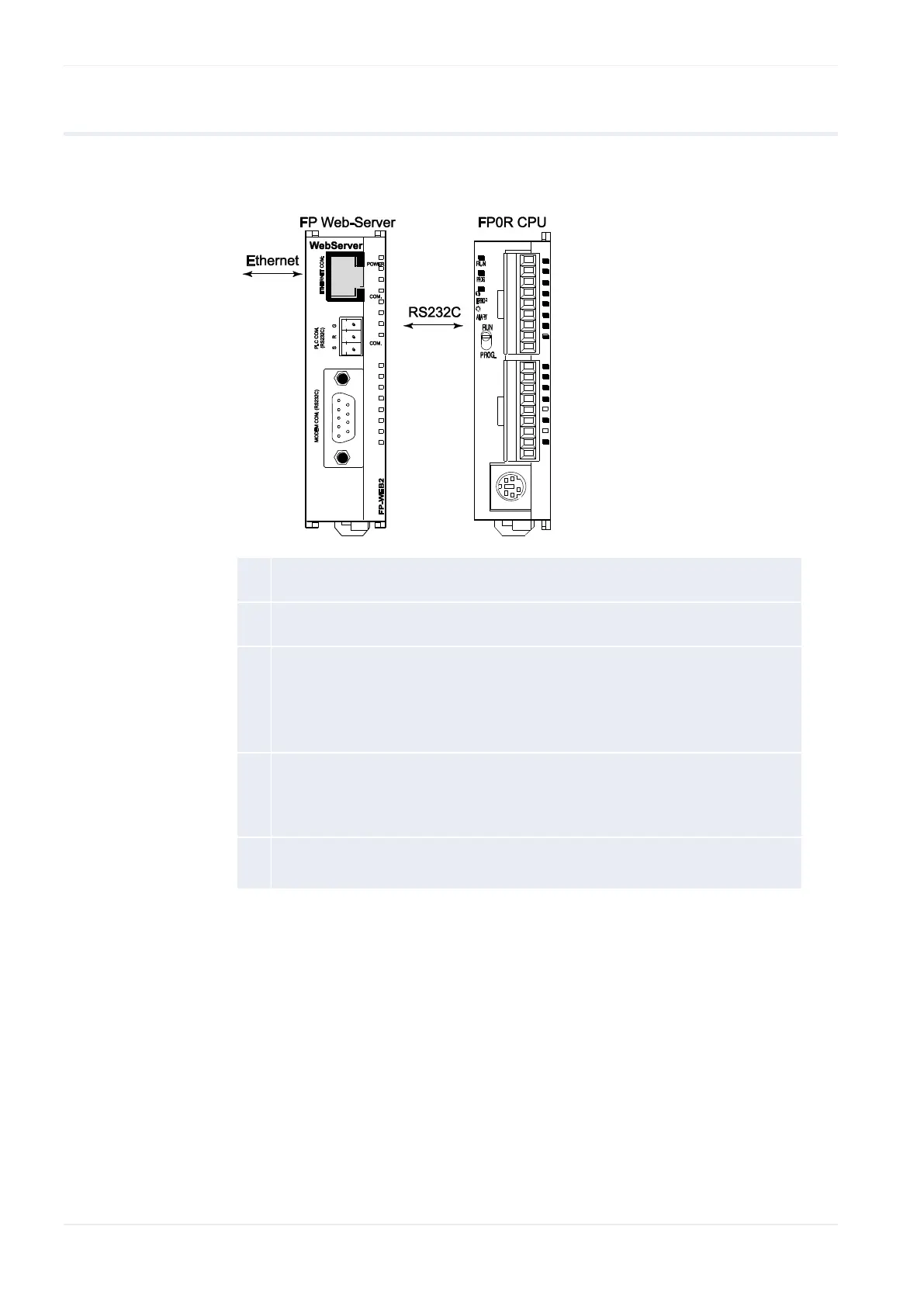

Below are two illustrations of the FP Web-Server's parts and their
functions:
Q
Ethernet (RJ45)
(Ethernet 10-Base-T / 100-Base-Tx) use Standard Ethernet CAT.5
W
RS232C (without handshake)
Screw terminal. Connects to the PLC.
E
2nd RS232C (SUB-D 9 male)
 Compatible to IBM PC serial port.
 Use standard serial computer cables.
– Connects to modem (PPP), or
– Transparent communication with 2
nd
PLC, computer, panel, etc.
R
24V DC, use Panasonic power cable
 brown = +24V DC
 blue = GND
 green = framing ground
T
Connector for FP Web expansion unit
16-pin expansion connector
