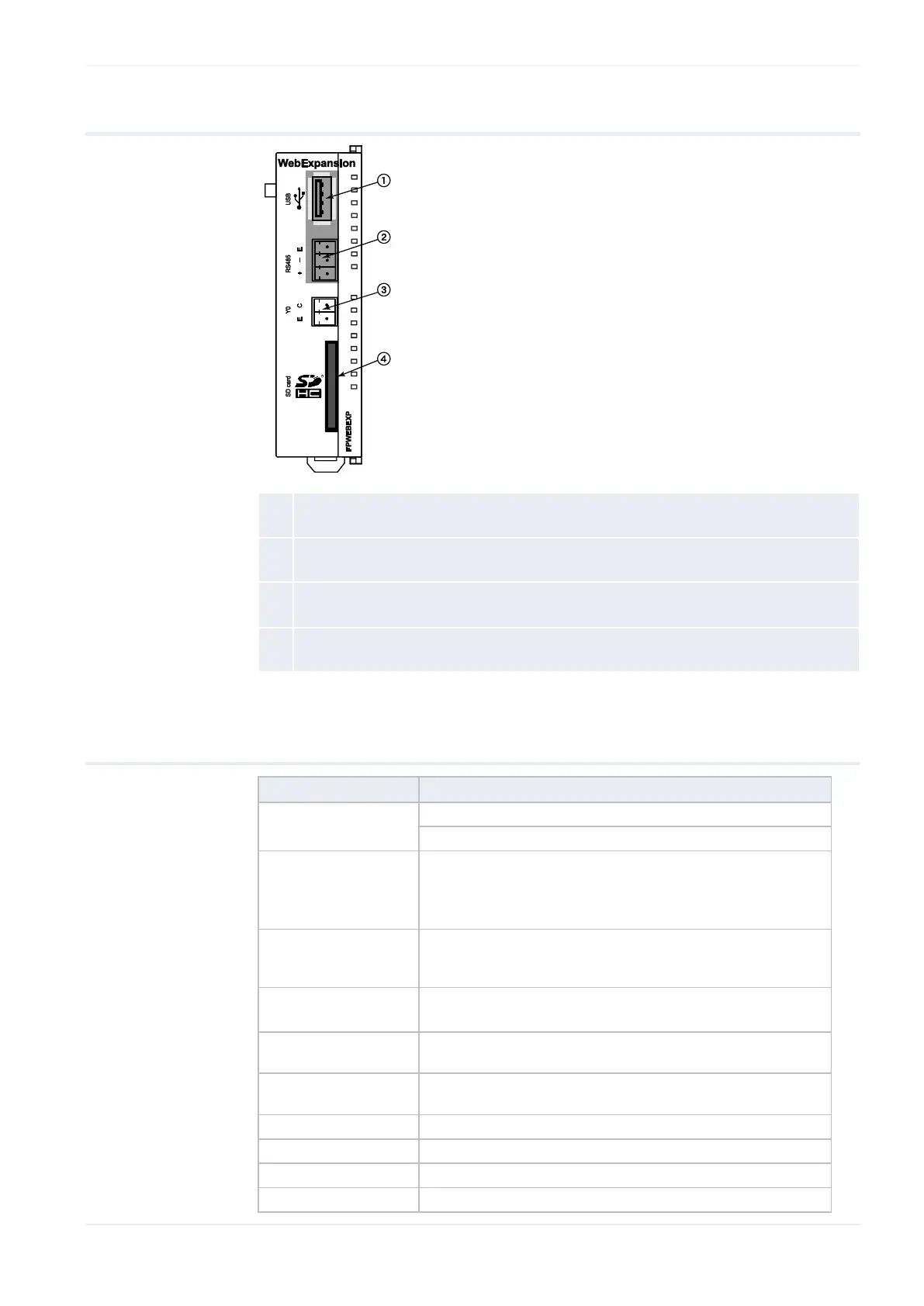

2.2.3 Parts and functions
Q
USB host port
USB 1.1 host port for Panasonic products that are supported by the FP-WEB2.
W
RS485
Screw terminal.
E
High-speed digital output
Optocoupler, phototransistor output.
R
SD card slot
SD/SDHC memory card support
2.2.4 Technical data
Feature
FP Web Expansion Unit
Product number:
PN Hardware: FPWEBEXP
PN Configurator: FPWEBTOOL2
PLC connection
USB Port: USB 1.1 (refer to targeted peripheral list (see
p. 30))
RS485 via 3-pin screw terminal port plug: Phoenix
product: MC1.5/3-ST-3.5. Order number: 18 40 37 9
Digital output
High-speed digital optocoupler, phototransistor output
(5 to 24V DC, 50mA max., rise time:6µs or less, fall
time: 20µs or less)
SD/SDHC card slot
SD memory card supported (32M to 1GB)
SDHC memory card supported (4GB to 32 GB)
Operating voltage
3.3V DC (internal power supply via 16-pin expansion
connector from FP-WEB2)
Current consumption
Max. additional 20mA at 24V DC (depending on the SD
card used)
Degree of protection
IP20
Ambient temperature
0°C to +55°C
Storage temperature
-20°C to +70°C
Humidity:
Max. 30% to 85% (non-condensing)
