HTTP server functions/web pages
FP Web-Server V2.810 EN 89
Number of display locations on the page (for numbers)
Specification of the format displayed (format of numbers or text
ON/OFF for internal flag)
The {...} fields can only be seen in the HTML editor (ASCII Text Editor) and
are replaced by the respective number of spaces by the "HTML-Compiler".
Such a file is then named an .MTM file and saved on the FP Web-Server.
Upon the request of an Internet browser, the fields are filled with he
current data by the FP Web-Server and displayed by the browser. A
maximum of 1000 PLC data fields are allowed and will be checked by the
"HTML-Compiler".

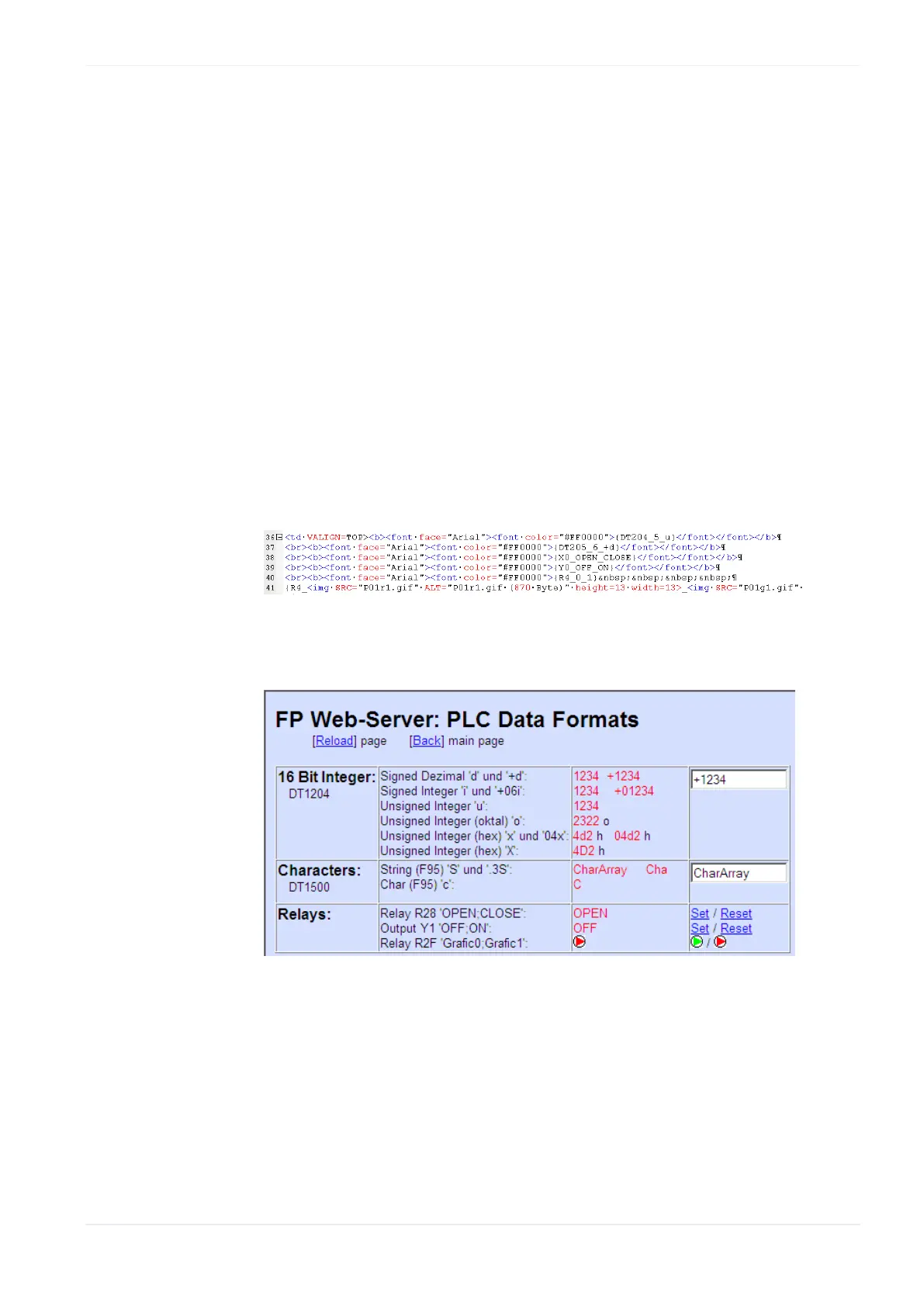

Display on the HTML editor:
Display on the browser:
