1. Before Use
16

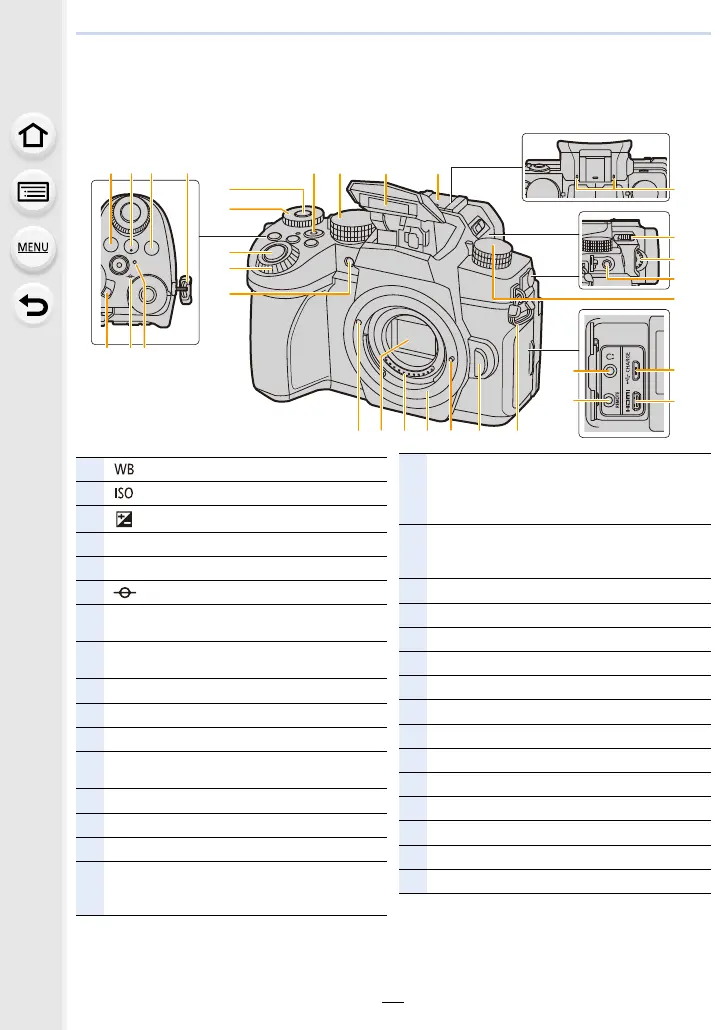

Names and Functions of Components
∫ Camera body
ヤラモンヨユ
8
27 2631
15
9
11
12
24
4
1614
13
10
22
23
25
19
18
17
21
20
3421
756
282930
1
[ ] (White Balance) button (P115)
2
[ ] (ISO sensitivity) button (P113)
3
[ ] (Exposure Compensation) button (P 111)
4
Shoulder strap eyelet (P20)
5
Camera ON/OFF switch (P39)
6
[ ] (Focus distance reference mark) (P109)
7
Charging lamp (P24)/
WIRELESS connection lamp (P257)
8
Dial operation switch button (P46)/
Fn button (Fn1) (P60)
9
Rear dial (P45)
10
Shutter button (P43)
11
Front dial (P45)
12
Self-timer indicator (P143)/
AF Assist Lamp (P215)
13
Motion picture button (P169)
14
Mode dial (P44)
15
Flash (P159)
16
Hot shoe (Hot shoe cover) (P306)
• Keep the hot shoe cover out of reach of
children to prevent swallowing.
17
Stereo microphone (P179)
• Be careful not to cover the microphone with
your finger. Doing so may make sound difficult
to record.
18
[‰] (Flash open lever) (P159)
• The flash opens, and recording with the flash
becomes possible.
19
Diopter adjustment dial (P42)
20
[MIC] socket (P309)
21
Drive mode dial (P118)
22
Headphone socket (P212)
23
[REMOTE] socket (P308)
24
[USB/CHARGE] socket (P24, 300, 302, 303)
25
[HDMI] socket (P294)
26
Lens release button (P36)
27
Lens lock pin
28
Mount
29
Contact points
30
Sensor
31
Lens fitting mark (P35)
