CHAPTER 9: DRIVING BELT DEVICE & THE STARTING LEVER
2
GASKET
LEFT CRANK COVER
1
2
STARTING LEVER
WASHER
3a
3b

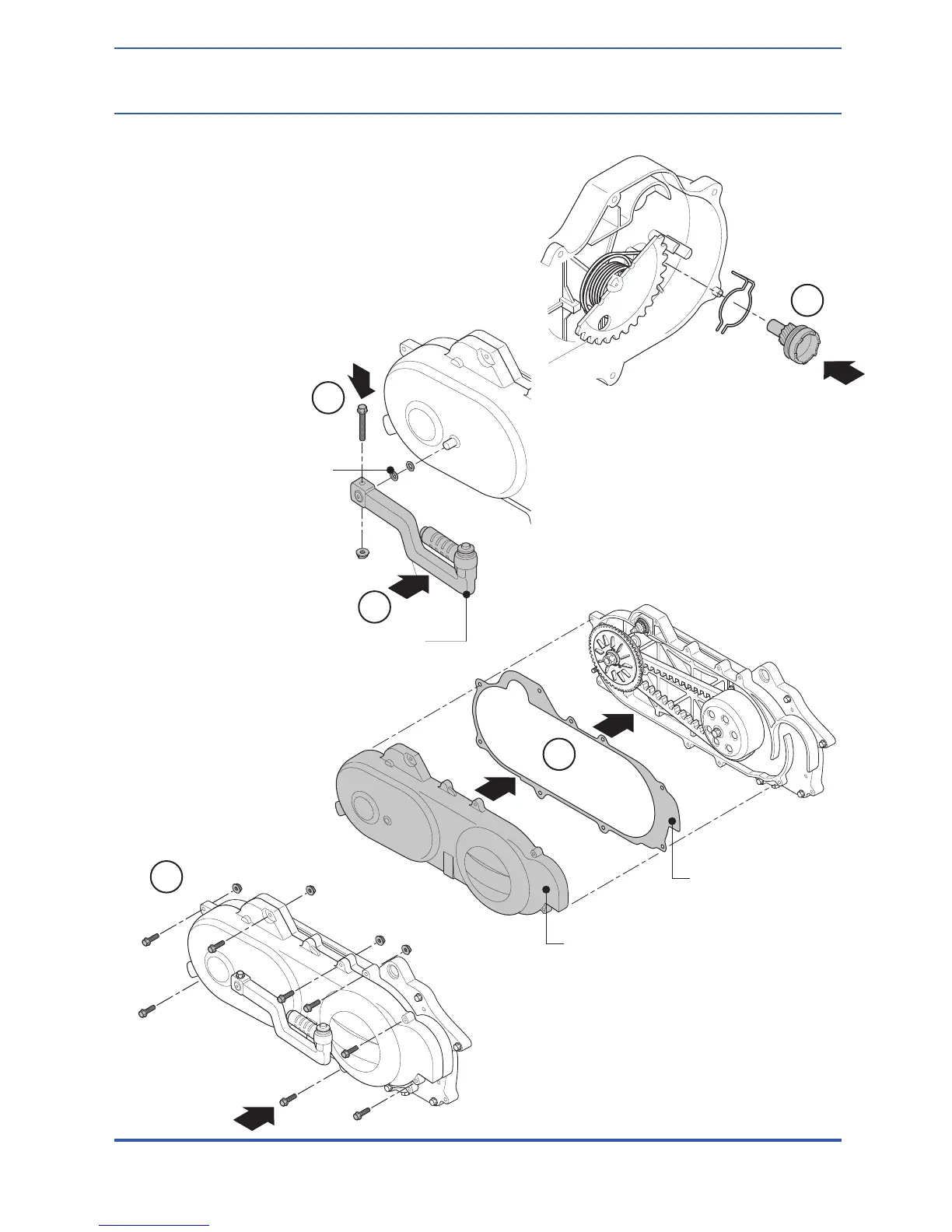

2. As shown in the
picture on the right,
assemble the driven
gear and the friction
spring. Maintain the
orientation as shown.
3. Install the starter
pivot (3a). Install the
washer, then the
retainer (3b).
Assembling the
Left Crankcase
Cover
1. First, install the
locating pin, then the
gasket.
2. Assemble the left
crankcase cover, and
then tighten the eight
fix bolts diagonally.
Install the air tube
together, and then
install the retainer.
