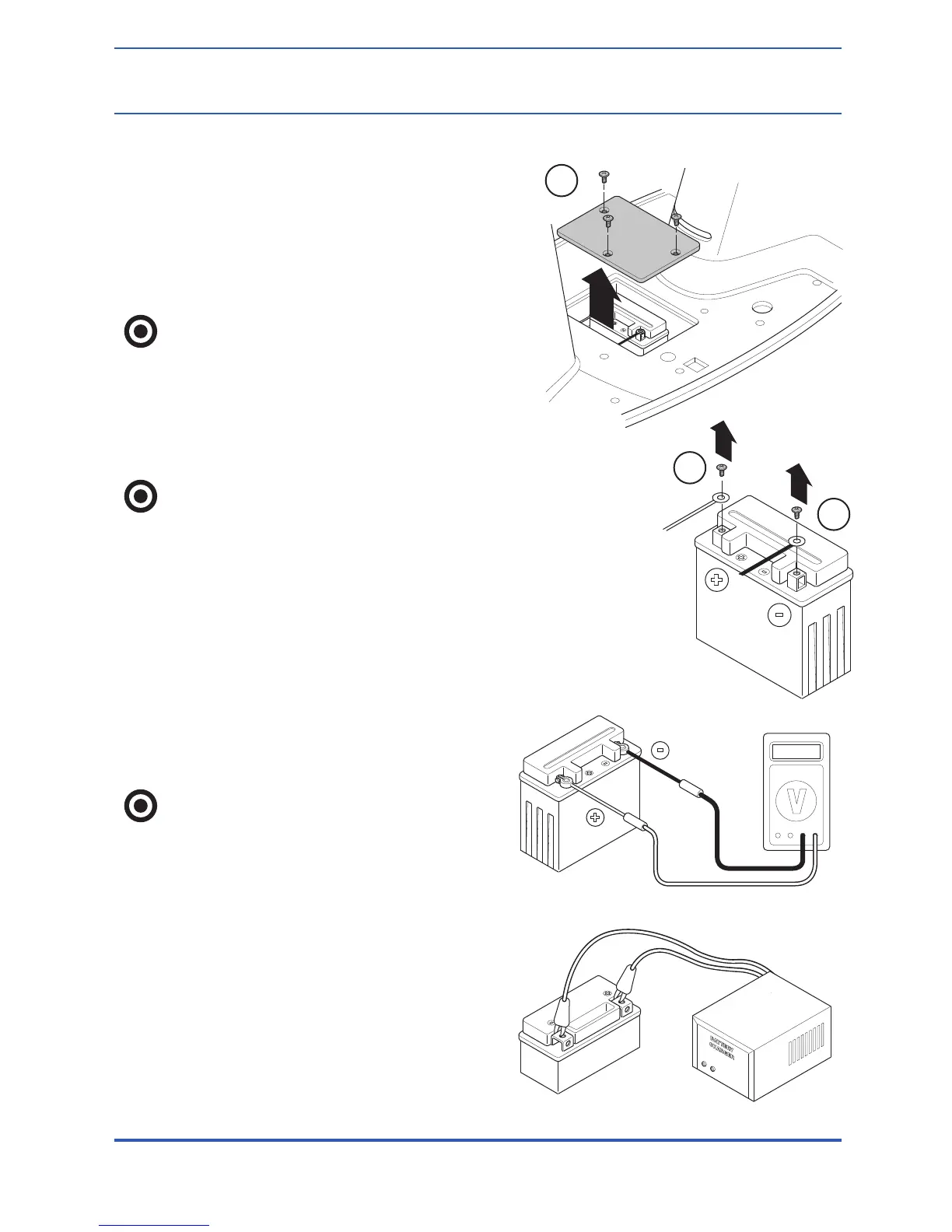

Detaching the Battery
1. Remove the screws of the battery cover under
the floor mat.
2. Open the cover and remove the battery cable
attachment screws.
Attention:
First detach the negative (-) terminal wire,
then the (+) terminal wire. When detaching
the positive (+) terminal wire, make sure
that the tool does not contact the frame.
3. When assembling, operate in the opposite
sequence of dismounting.
Attention:
In order to prevent short circuiting, first
connect the (+) terminal wire, then the
negative (-) terminal wire
Checking the charging
condition (open circuit volt)
1. Open the battery cover and disconnect the
battery.
2. Measure the voltage across the terminals of
the battery.
Fully charged: 13.1V
Inadequately charged: 12.3V
Attention:
Use a volt meter to check the charging
condition.
Charging
1. Connection The (+) terminal pole of the
charger to the (+) terminal pole of the battery.
The negative (-) terminal pole of the charger to the
negative (-) terminal pole of the battery.
1
2a
2b
