14. The Battery and the Charging System
14-9
154
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 14: THE BATTERY AND THE CHARGING SYSTEM
The Magneto Charging Coil
Attention:
The operation of the magneto charging
coil can be done in the engine.
Checking
1. Detach the connecting plug of the magneto.
2. Use a multi-meter to measure the resistance
between the white wire of the magneto and the
ground.
Criterion: 0.2-1.2 OHM (20ºC)
When the value goes beyond the criterion,
replace the magneto coil.
Checking The magneto lighting coil
Attention:
The operation of the lighting coil can be
done in the engine.
1. Detach the connecting plug of the magneto.
2. Use a multi-meter to measure the resistance
between the yellow wire and the ground.
Criterion: 0.1-1.0OHM (20ºC)
When the value goes beyond the criterion,
replace the magneto coil.
Checking the Resistor
1. Measure the resistance between the resistor
wire and the ground.
Criterion: 30W7.5 OHM : 6.0-9.0 OHM
5W14 OHM : 13-15 OHM

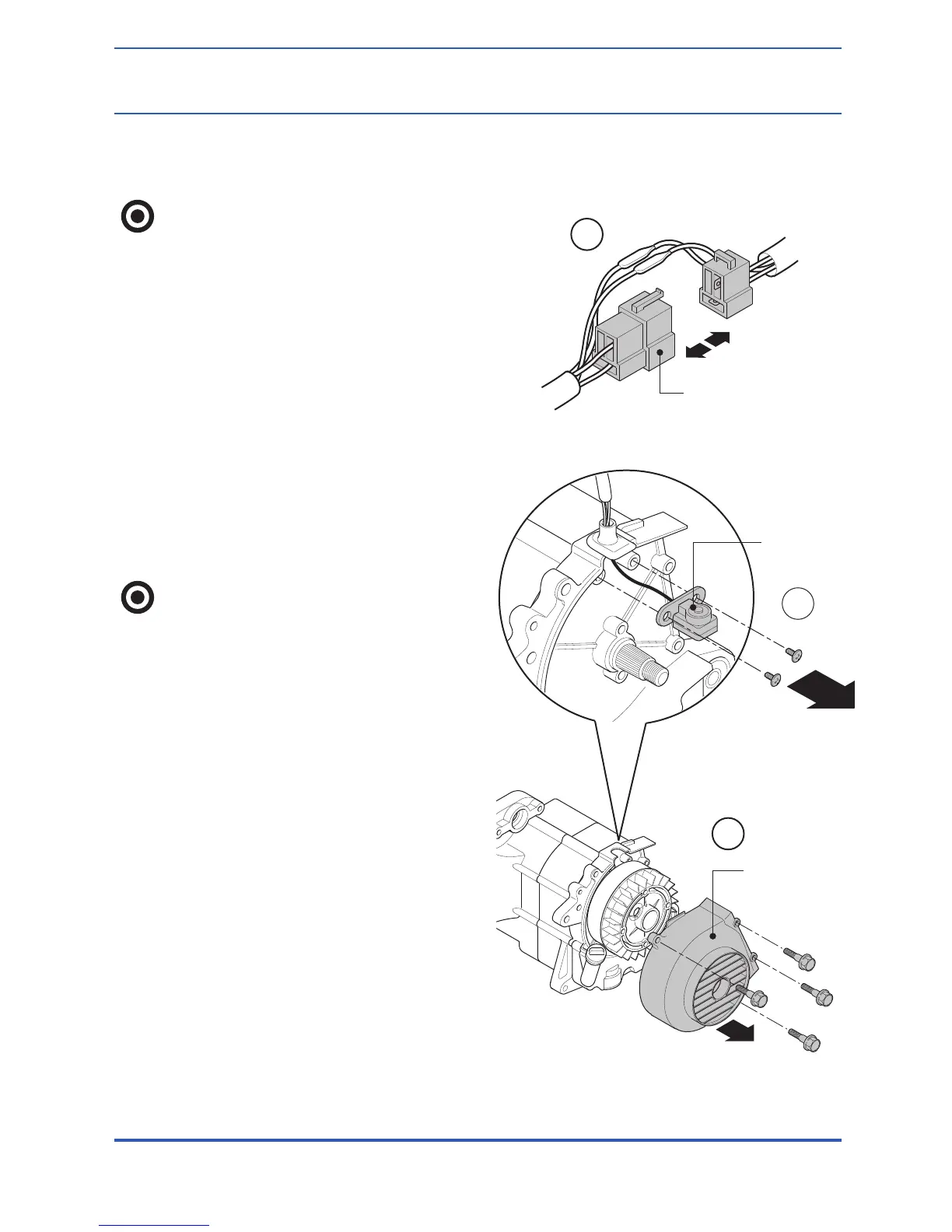

Dismounting the Magneto
1. Detach the right side guide strip (refer to 2-3)
Remove the four bolts, four screws and remove
the fan cover.
1
FAN COVER
1a
MAGNETO
CONNECTING PLUG
OFMAGNETO
1
To Next Page
