Camshaft Chain Regulator
Assembling

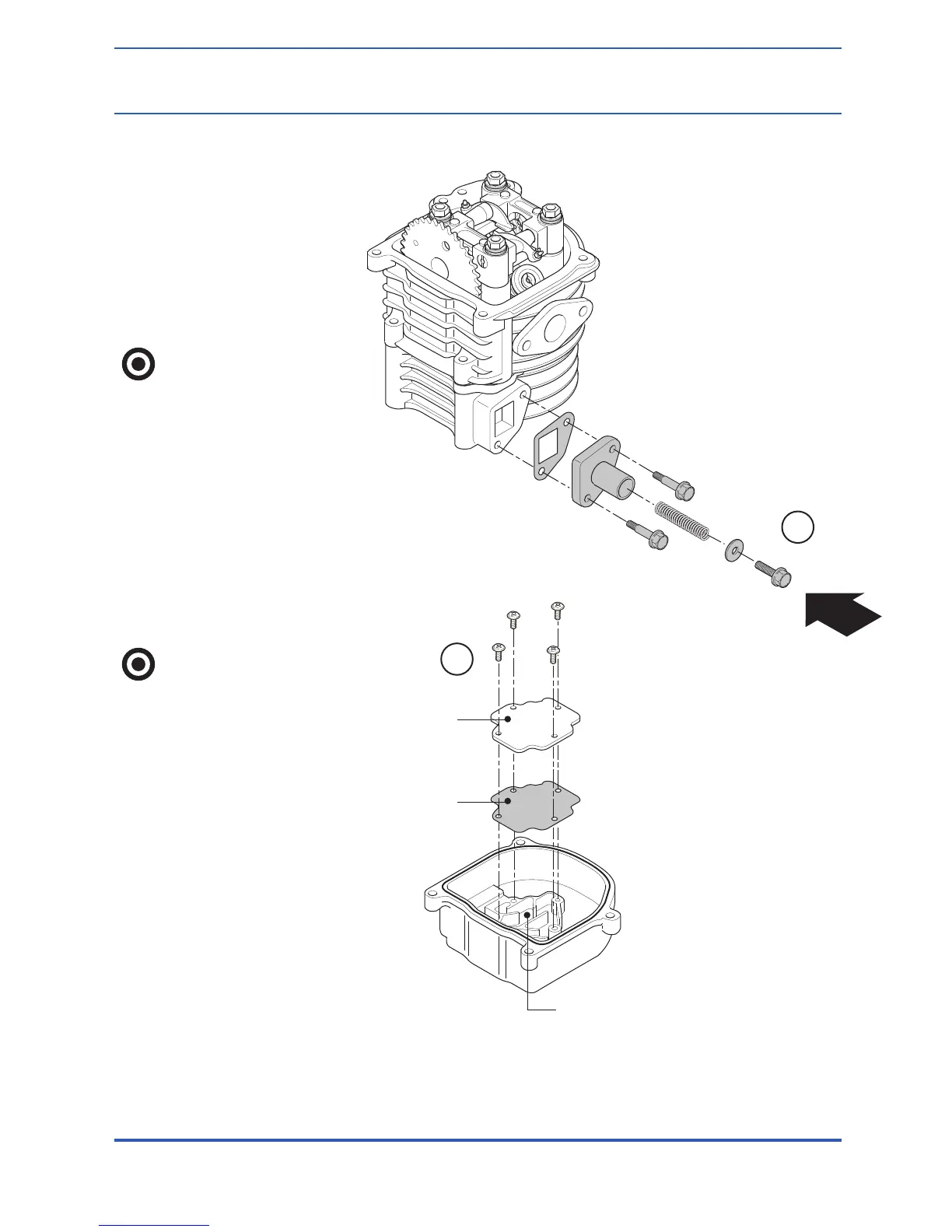

1. First, build up camshaft
chain regulator and spacer.
Second, lock two fixed bolts.
Third, put spring into camshaft
chain regulator. Last, assemble
the o-ring and fixed bolt.
Press down regulator
master jaw and drive
down driving bar
when camshaft chain
regulator is
assembled.
Torsion valve: 0.3-0.5 kg-m
Regulate valve gap: (3-5)
2. Change the ring of he
cylinder head cover and
assemble the cylinder head
cover.
Put o-ring into furrow.
1
2
UNDERSIDE OF
CYLINDER HEAD COVER
O-RING
FURROW
COVER
