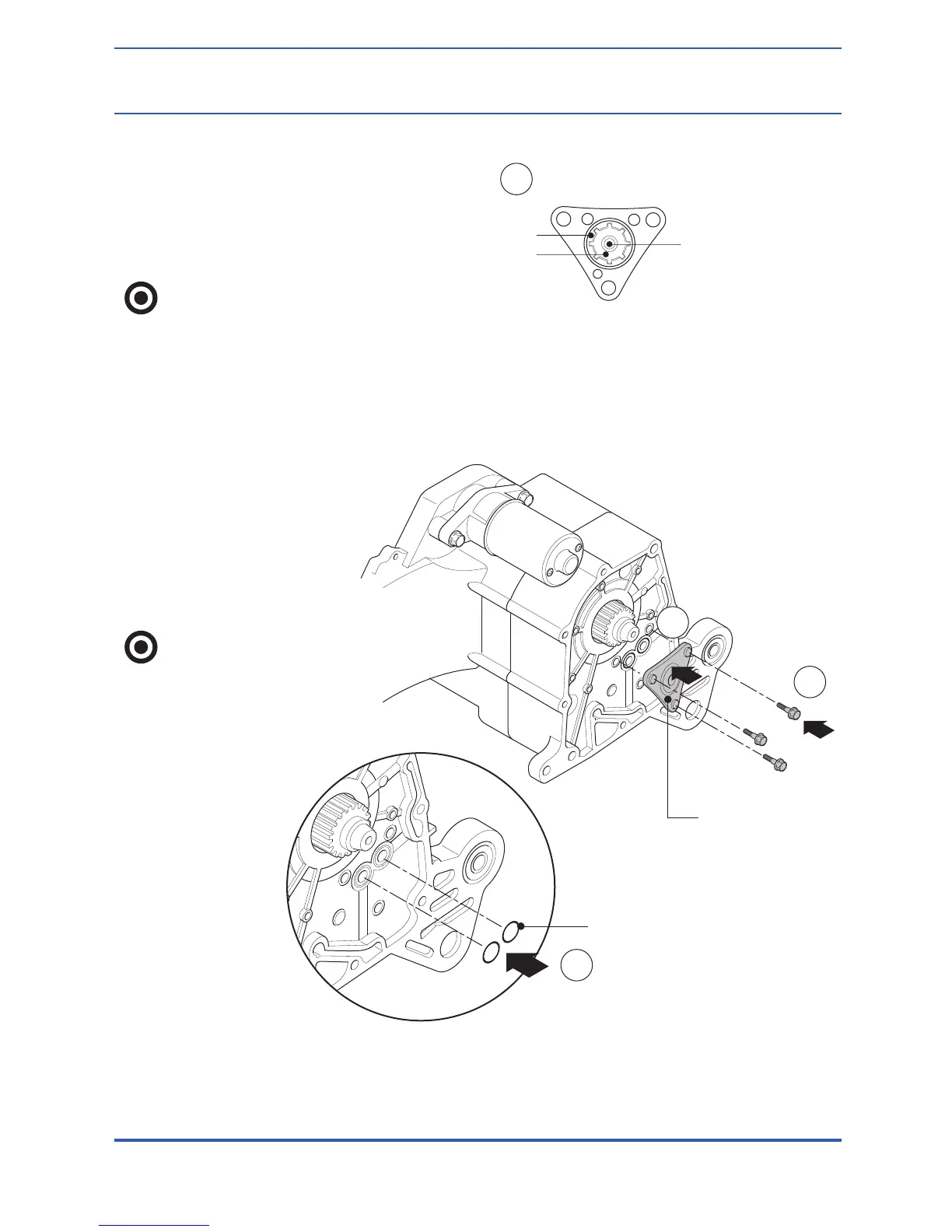

Assembling
1. Assemble inner and outer
rotators and oil pump
shaft.
Be careful of
alignment between
pump bearing unfilled
corner and inner
rotator unfilled corner.
2. Assemble pump cover
and tighten screws.
Installation
1. First put two o-rings at
the oil pump seat.
2. Put oil pump in the
crankshaft case.
First add oil to pump
and then assemble.
3. Tighten the three fixed
screws.
EXTERNAL ROTOR
INTERNAL ROTOR
PUMP SHAFT
3
1
2
1
OIL PUMP
O-RINGS
