14. The Battery and the Charging System
14-8
153
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 14: THE BATTERY AND THE CHARGING SYSTEM

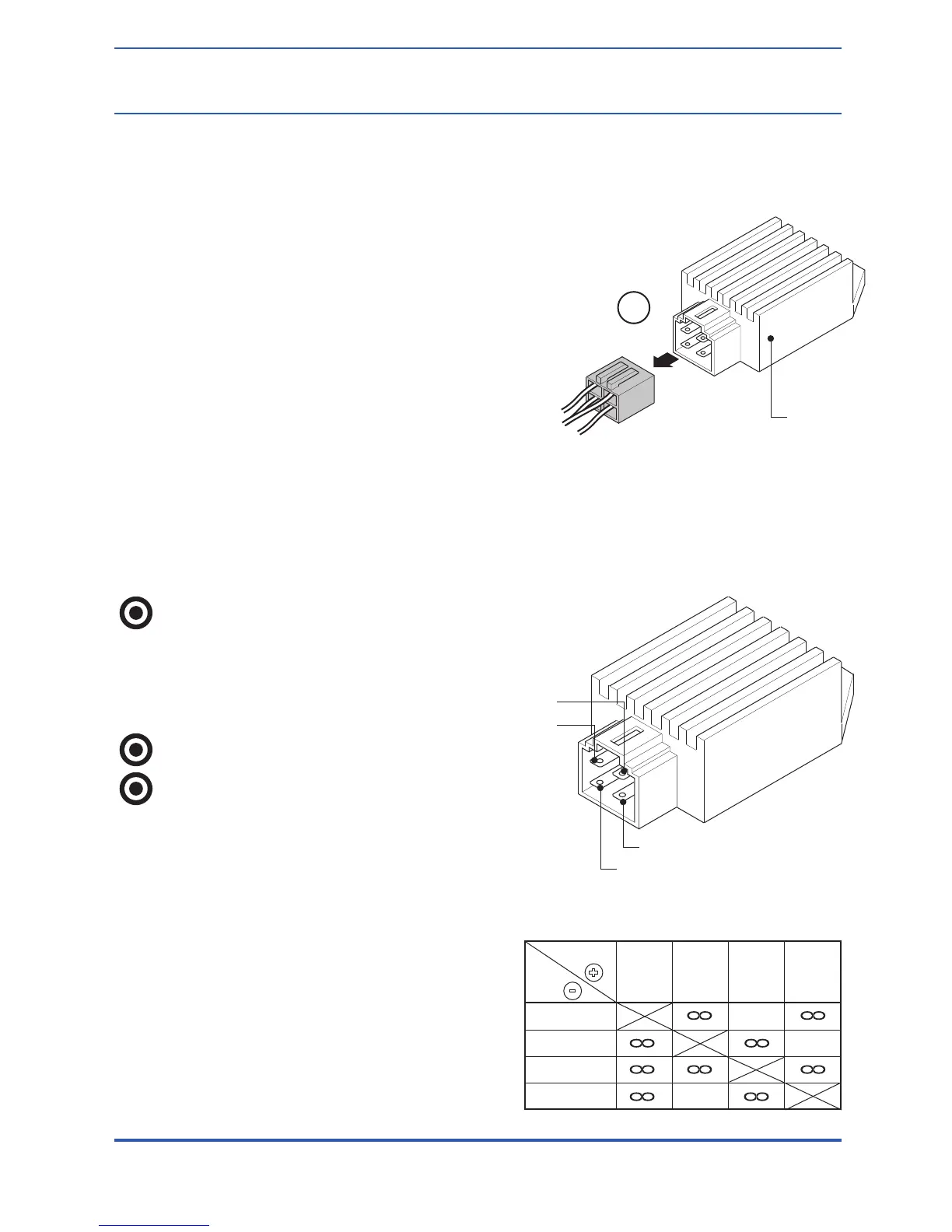

The rectifying voltage stabilizer
1. Checking the main cable circuit.
2. Detach the 4P plug from the
rectifying voltage stabilizer.
3. Check the conductivity between
terminals of the main cable in the
following way:
Item (matching color wire)
Checking the Rectifying
Voltage Regulator
1. After the main cable has been
tested and found normal, check the plug
of the rectifying voltage stabilizer
contact well and measure the resistance
among the terminals of the regulator.
Attention:
Make sure that your finger
doesn’t touch the metal part
of the test bar of the multi-meter
because the human body has
resistance.
Use a multi-meter to test.
Test positions per chart.
2. When the resistance among the
terminals is abnormal, replace the
rectifying voltage stabilizer.
Multimeter
Multi-
meter
White
White
Yellow
Red
Green
3K-50K
5K-100K
5K-100K
Yellow Red Green
RECTIFYING
VOLTAGE
STABILIZER
2
GREEN
WHITE
RED
YELLOW
To Next Page
