NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 5: FUEL SYSTEM

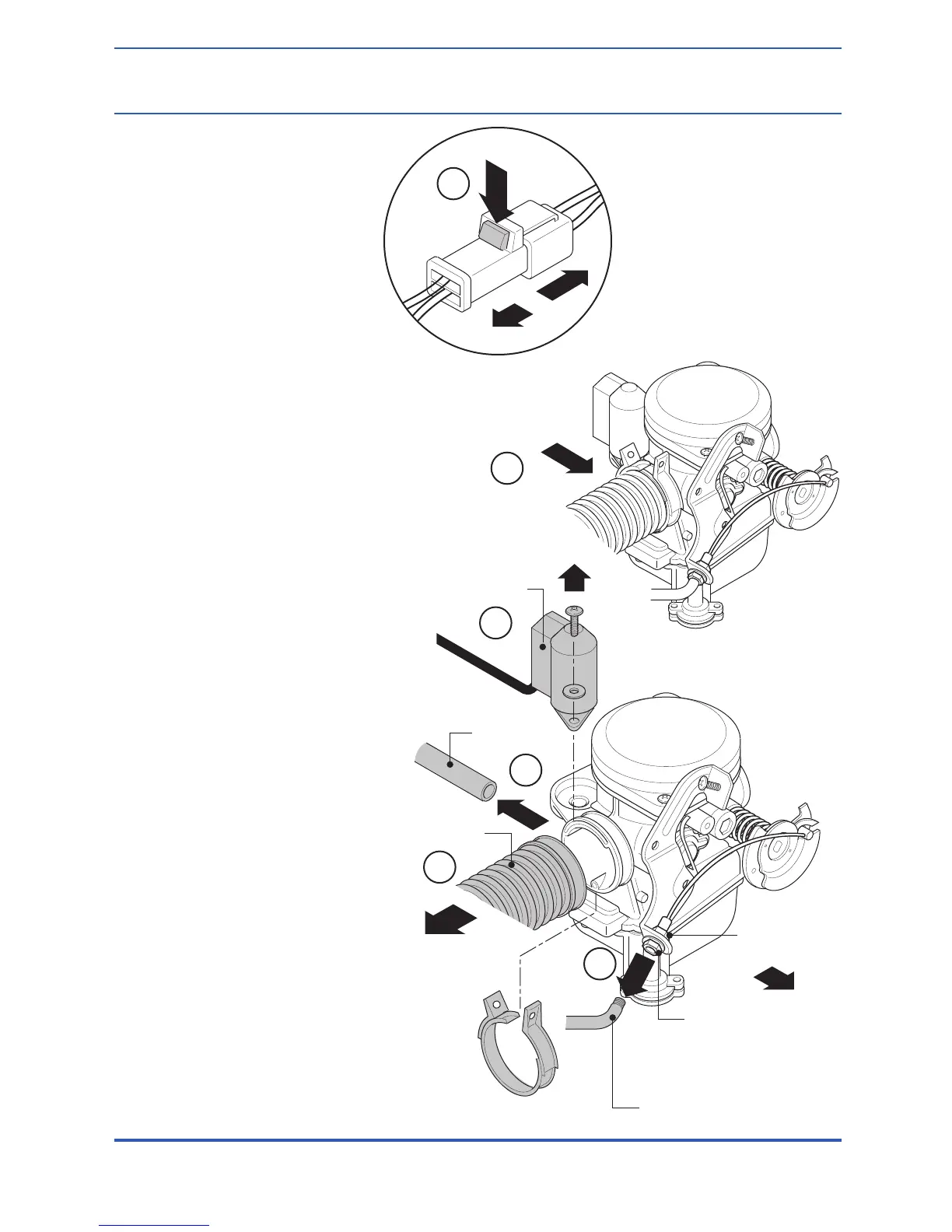

Disassembly of carburetor
1. Remove seat and helmet
storage tub.
2. Remove right side body panel.
3. Disconnect cable connector for
auto choke.
4. Loosen carburetor drain screw
and drain fuel from float bowl.
5. Loosen clumps in intake tube
and main fold.
6. Loosen throttle cable and
remove from support and from
throttle control plate.
7. Remove fuel line from
carburetor.
8. Remove air inlet tube from
carburetor and pull carburetor
straight back out of intake manifold.
9. Remove auto choke from
carburetor.
Checking Auto Choke
1. Check resistance volume.
2. Standard value below 5 when
cold.
3. Connect auto choke to 12V
battery.
4. Plunger should extend 3/8 inch
in 5 minutes.
AIR INLET TUBE
AUTO CHOKE
THROTTLE SCREW
AIR SCREW
8
9
3
4
7
6
THROTTLE CABLE
FUEL LINE
CARBURETOR DRAIN
SCREW LOCATED
UNDERNEATH FLOAT BOWL
