NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 4: LUBRICATING SYSTEM

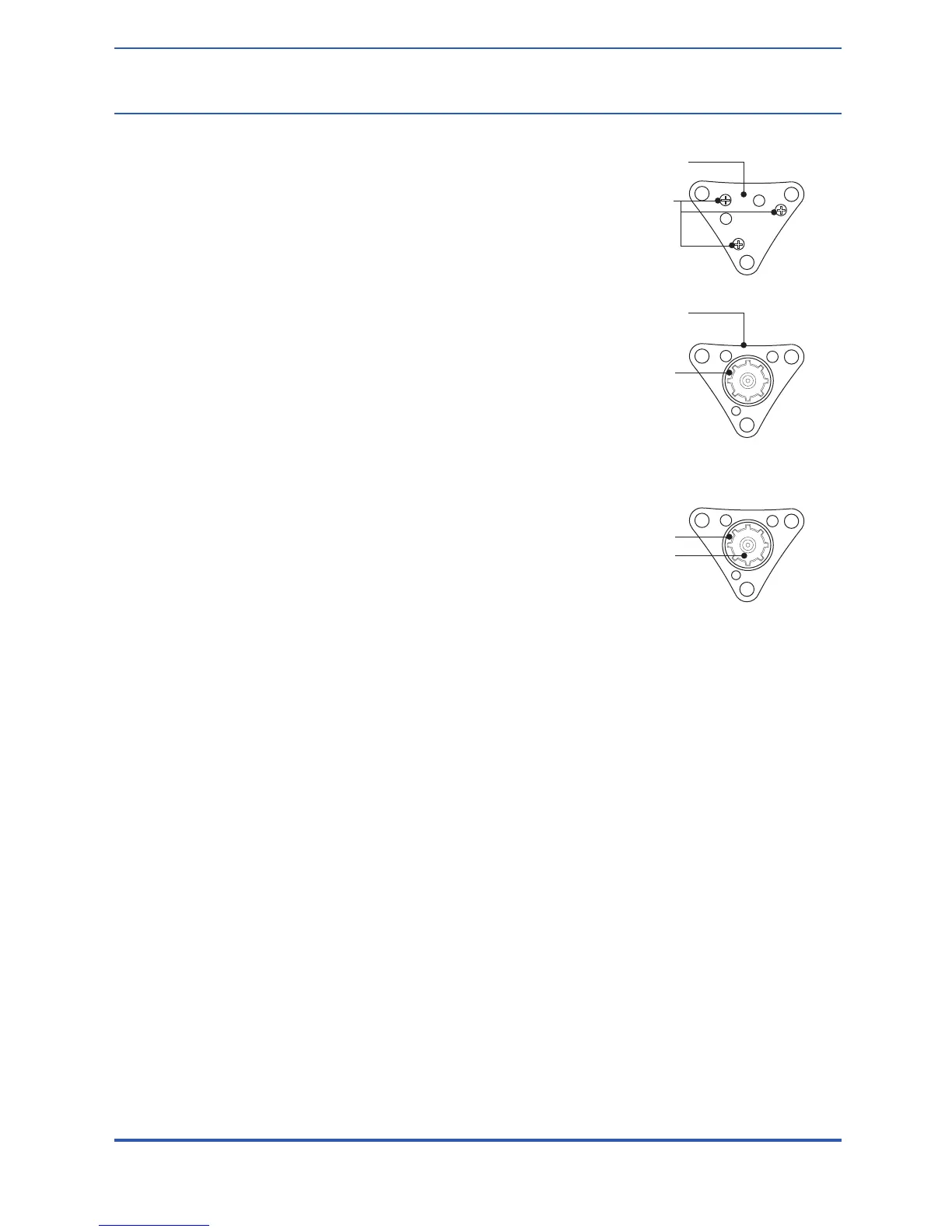

Oil Pump Disassembly
1. Remove three fixed screws in oil pump
body.
2. Disassemble oil pump.
Checking
1. Check the gap between the oil pump module
body and the external rotator.
•Used limit: 0.12mm (.005 in.).
2. Check the gap between the surface of the
rotator and the body.
•Used limit: 0.2mm (.008 in.).
OIL PUMP BODY
OIL PUMP BODY
FIXED SCREWS
EXTERNAL ROTOR
EXTERNAL ROTOR
INTERNAL ROTOR
