Disassembling Fuel Tank
1. Disassemble the body cover.
2. Disconnect the wiring harness
from the fuel level sending unit.
3. Disconnect the fuel line and
vacuum line from the auto fuel
valve.

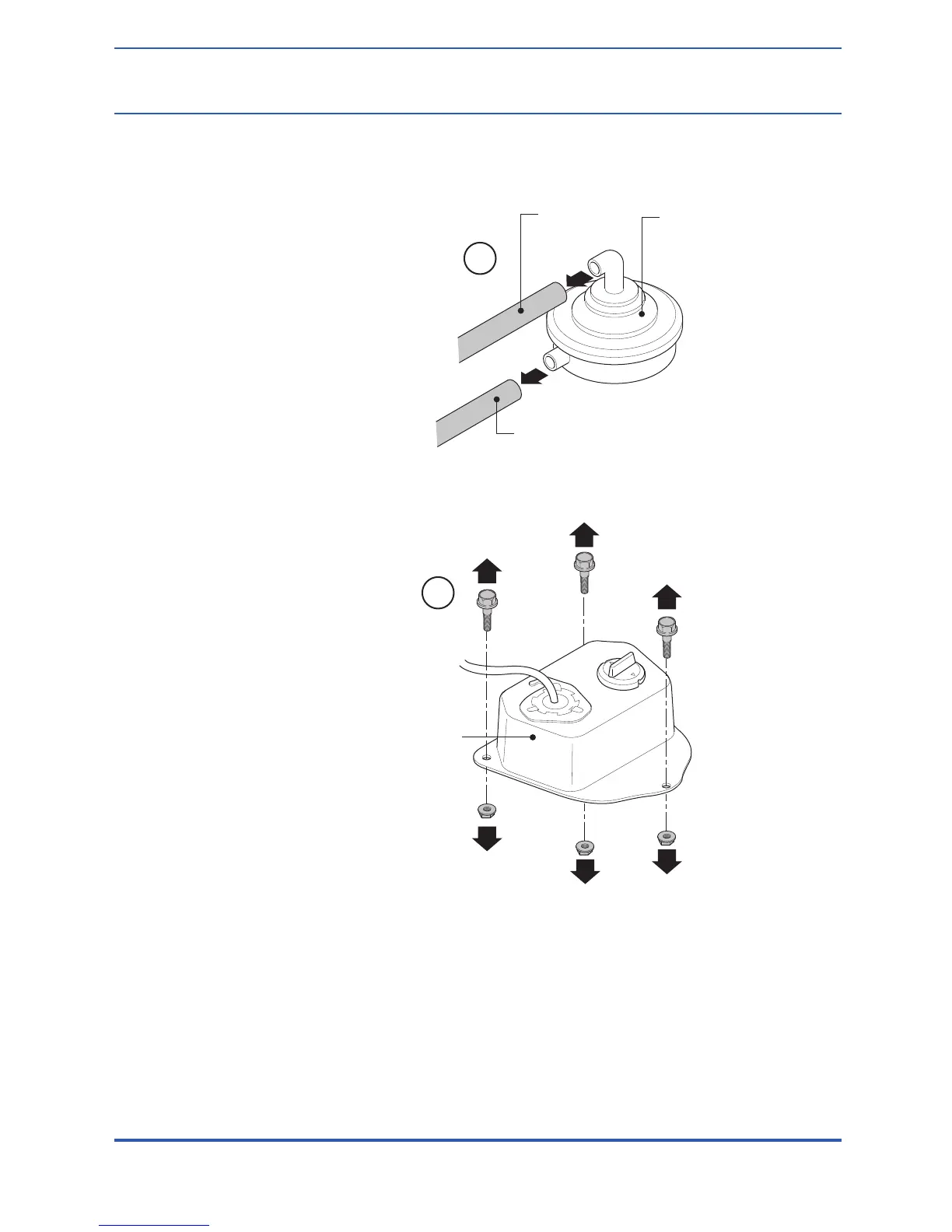

4. Remove three bolts and nuts
to loosen the fuel tank.
5. Remove the fuel tank from the
frame.
Assembly of Fuel Tank
1. Reverse steps for reassembly.
3
4
VACUUM LINE
FUEL LINE
CONTROL VALVE
FUEL TANK
