Panterra Fusion - Rear Wheel Service Procedures

2
3
1

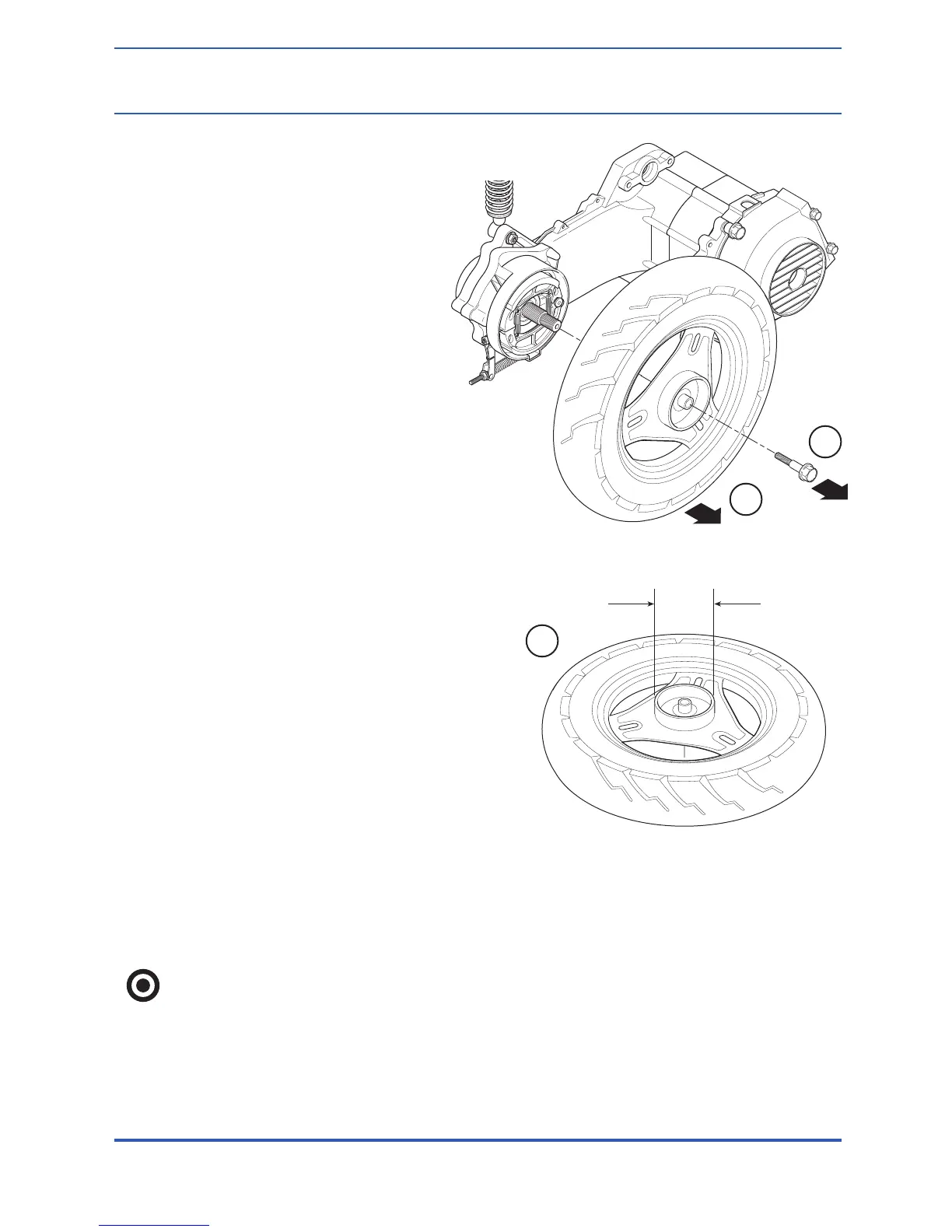

Detaching the Rear Wheel
1. Detach the exhaust pipe (refer to 2-8)
2. Remove the nut of the rear wheel axle.
3. Remove the rear wheel.
Checking the Rear Wheel
1. Check the run-out of the rear wheel.
Maximum service allowance:
Longitudinal: 2.0mm (.079 in.) Hop
Transversal: 2.0mm (.079 in.) Wobble
Replace when it goes beyond the above
value.
2. Check the rear brake hub.
3. Measure the ID of the rear brake hub.
Maximum service allowance:
111mm (4.37 in.)
Replace when it goes beyond the above
value.
Assembling the Rear Wheel
1. Assemble in the opposite sequence of the
dismantling.
The rear wheel axle:
Torque: 10.00kg•m 75ft lbs
Torque of the exhaust pipe:
Connection nut: 1.2kg•m 10ft lbs
Fix bolt: 3.5kg•m 25ft lbs
Attention:
When assembling the exhaust pipe, first
fasten the connection at the bend, and
then install the support bolt.
