Panterra Fusion - Disassembling the Clutch; The Clutch;Transmission Pulley

SPANNER
WRENCH
10mm
FIX NUT
SEAL COVERING
OF SHAFT COLLAR
7
1
2

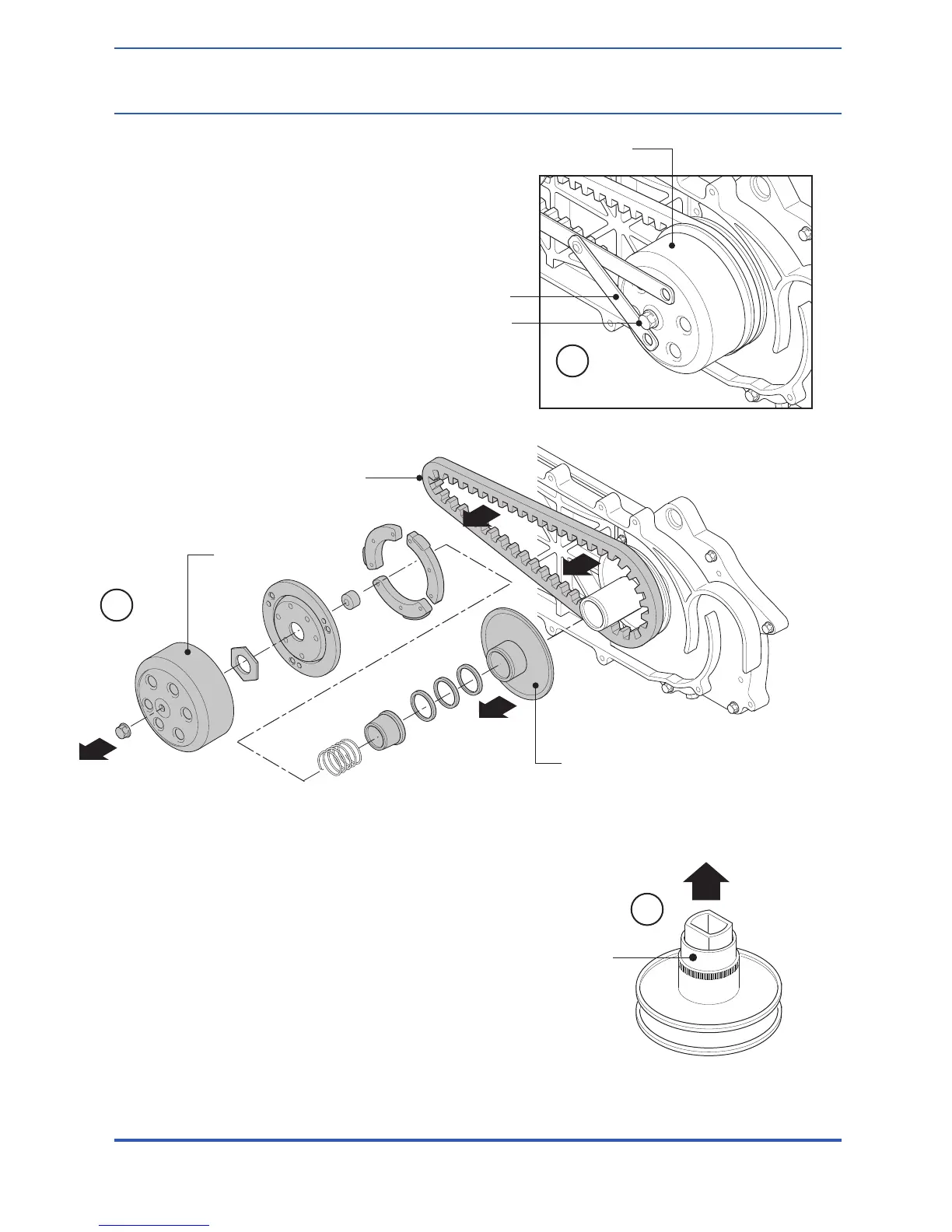

The Clutch/Transmission Pulley
Removing the Clutch/Transmission
Pulley
1. Remove the driving pulley. Then
use a spanner wrench to hold the
clutch housing to screw out the 10mm
(.39 in.) nut.
2. Remove the clutch housing.
Remove the clutch/transmission pulley.
Remove the driving belt from the
clutch/transmission pulley.
Disassembling the
Clutch/Transmission Pulley
5. Use a spring compressor for the
clutch spring to press down the
transmission pulley spring to remove
the special nut (28mm, 1.102 in.).
6. Remove the clutch spring.
7. Remove the sealing cover of the
shaft collar.
CLUTCH HOUSING
CLUTCH
HOUSING
CLUTCH TRANSMISSION PULLEY
DRIVING BELT
