5. Fuel System
5-6
57
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 5: FUEL SYSTEM
2
3
AIR CUTOFF
VALVE COVER
O-RING
SPRING
VACUUM PLATE

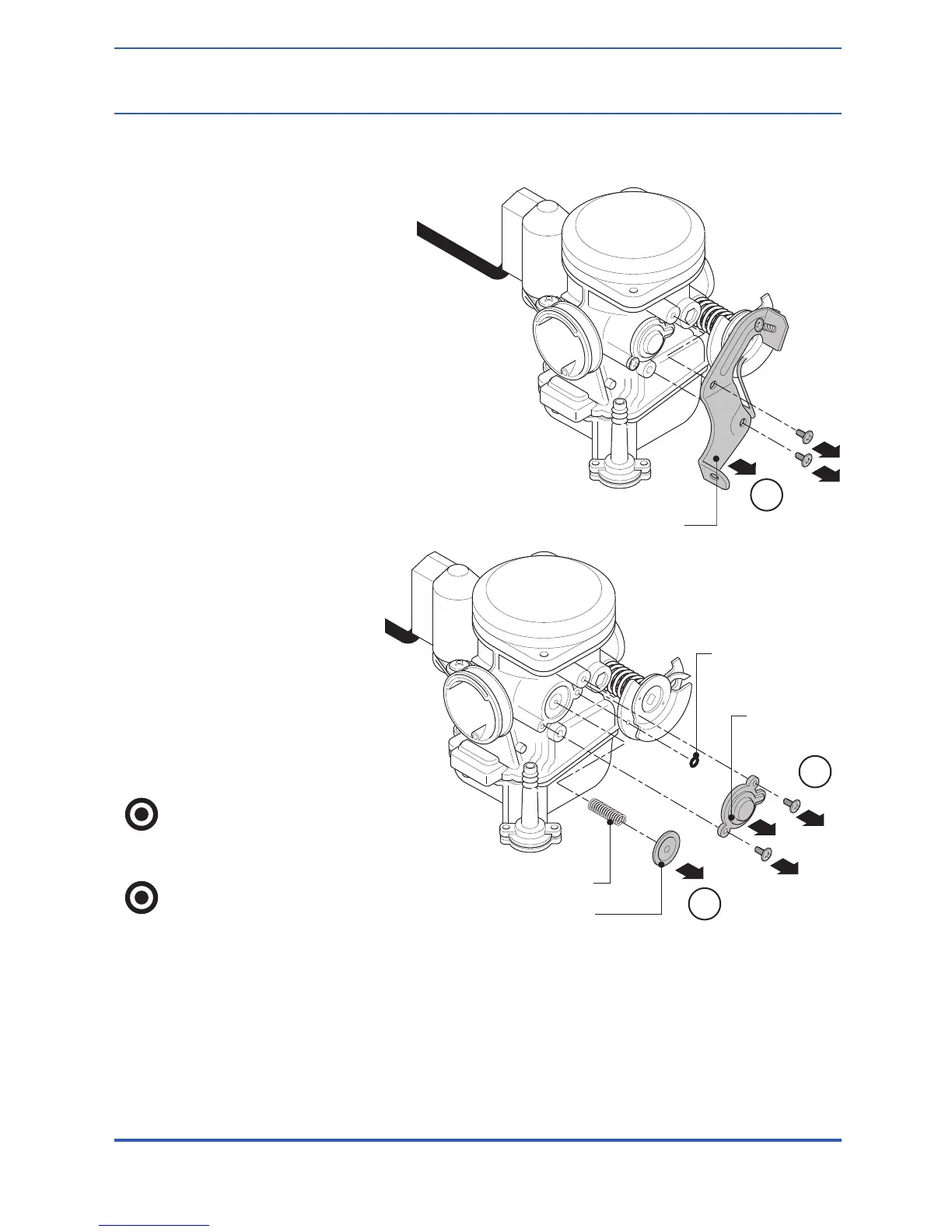

Air Cut Off Valve
1. Disassemble two screws in fuel
guide fixed plate and remove fixed
plate.
2. Disassemble two screws in air
cut off valve.
3. Take off spring and vacuum
plate.
4. Check for wear on plate, replace
if necessary.
5. Clean the passage way to
remove dirt or varnish.
Assembling
1. Install plate to carburetor.
2. Install spring and cover of air
cut-off valve.
3. Build up fuel guide line fixed plate
and tighten two screws.
Be sure that furrow of vacuum
plate is aligned with the
carburetor glove.
Make sure that cover tightens
into place.
1
FUEL GUIDE
FIXED PLATE
