7. Cylinder Head Valve
7-14
84
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 7: CYLINDER HEAD VALVE

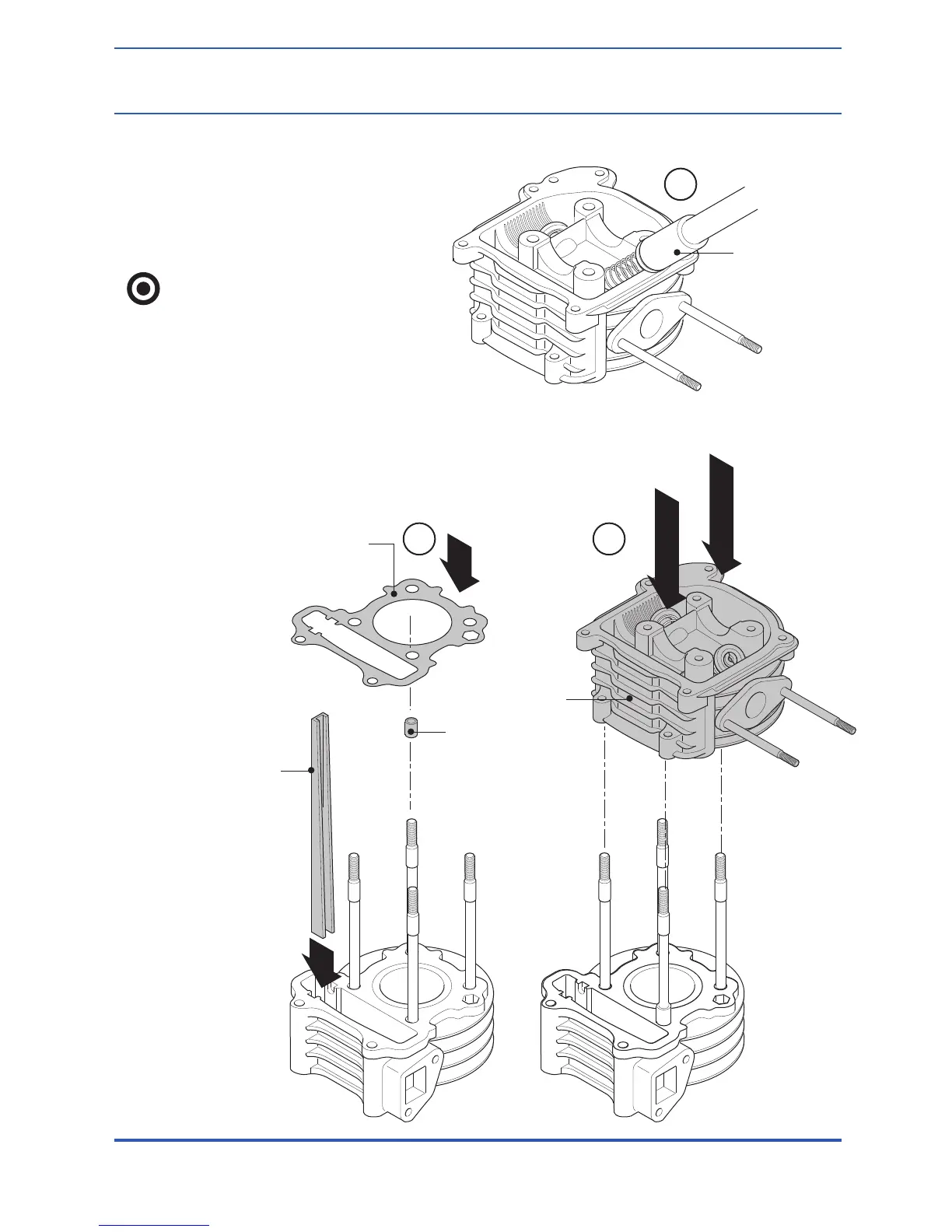

4. Use valve spring compressor
accessory to make valve contact with
valve collar. Use plastic mallet two or
three times softly on the ends of the valve
to seat collars.
When using mallet, be careful to
not damage valves.
Installing Cylinder Head
1. Install locating pin and gasket.
2. Install cam chain adjuster plate.
3. Slide cylinder head over studs and
into place.
3
2 3
SPRING
VALVE
COMPRESSOR
CYLINDER HEAD
GASKET
LOCATING PIN
CYLINDER HEAD
CAMSHAFT
CHAIN GUIDE BAR
