Panterra Fusion - Rear Shock Absorber Service

13. The Rear Wheel, the Rear Brake & Rear Shock
13-5
144
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 13: THE REAR WHEEL,
THE REAR BRAKE & REAR BUFFER
11. Assemble the wear indication board
and the brake arm.
12. Assemble the brake arm and the brake
cam.
Attention:
Point the “gullet” mark of the brake
arm to the “dot” mark of the brake
cam, and then assemble them.
13. Install and tighten the bolt of the brake
arm.
14. Install and tighten the fix bolt of the set
arm.
15. Install the return spring of the brake
arm.
16. Install the pin of the brake arm.
17. Install the adjusting nut of the brake
cable.
18. Assemble the rear wheel (refer to
13-2).
19. Adjust the clearance of the brake lever
(refer to 13-8).

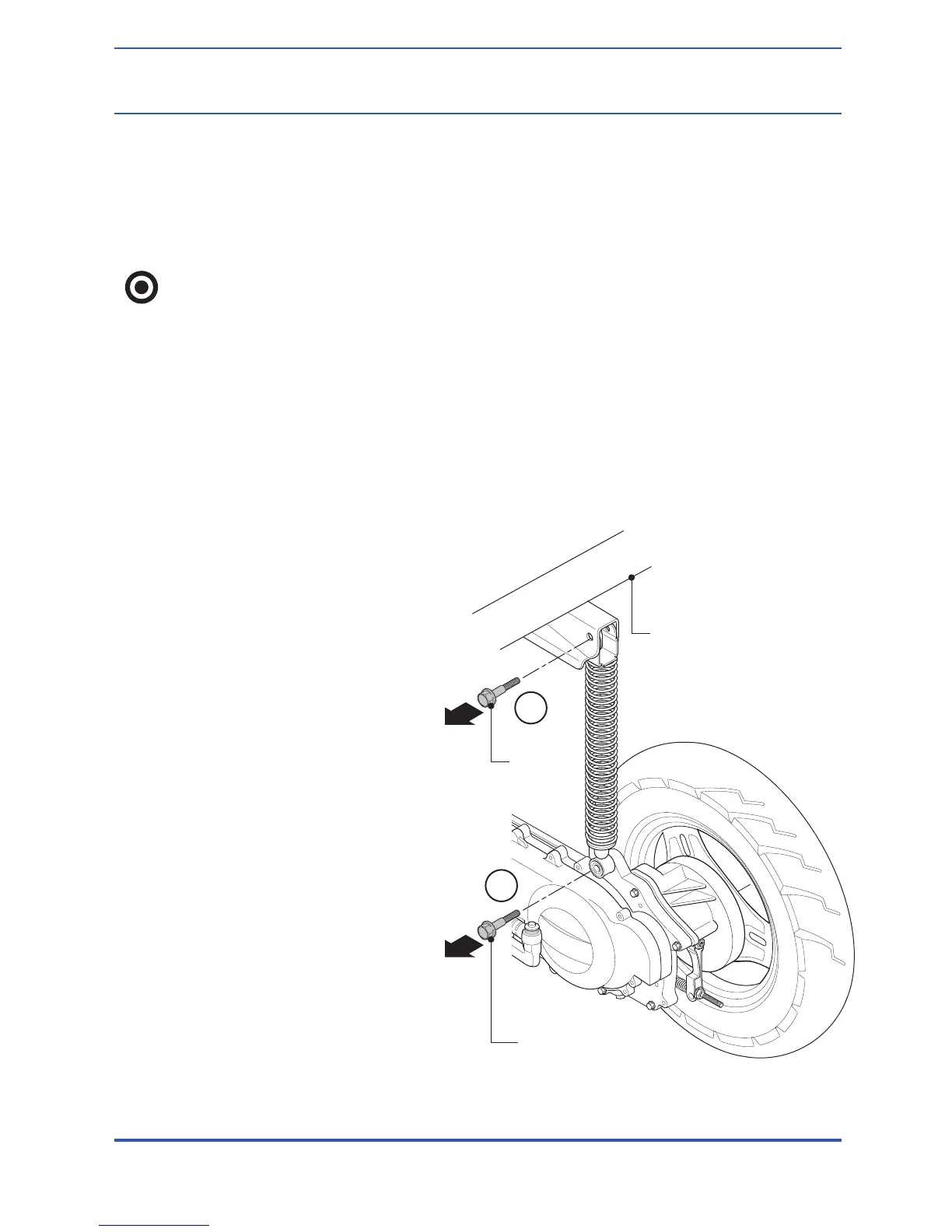

Dismounting the Rear Shock
1. Remove the lid of the body
(refer to 2-2).
2. Remove the case of the air filter
(refer to 3-4).
3. Remove the top bolt of the rear shock.
4. Remove the bottom bolt of the rear
shock.
5. Remove the rear shock.
3
4
BOTTOM BOLT
TOP BOLT
CHASSIS
