Panterra Fusion - Assembling the Magneto

14. The Battery and the Charging System
14-11
156
NIKOTA USA: PANTERRA SCOOTER SERVICE MANUAL
CHAPTER 14: THE BATTERY AND THE CHARGING SYSTEM

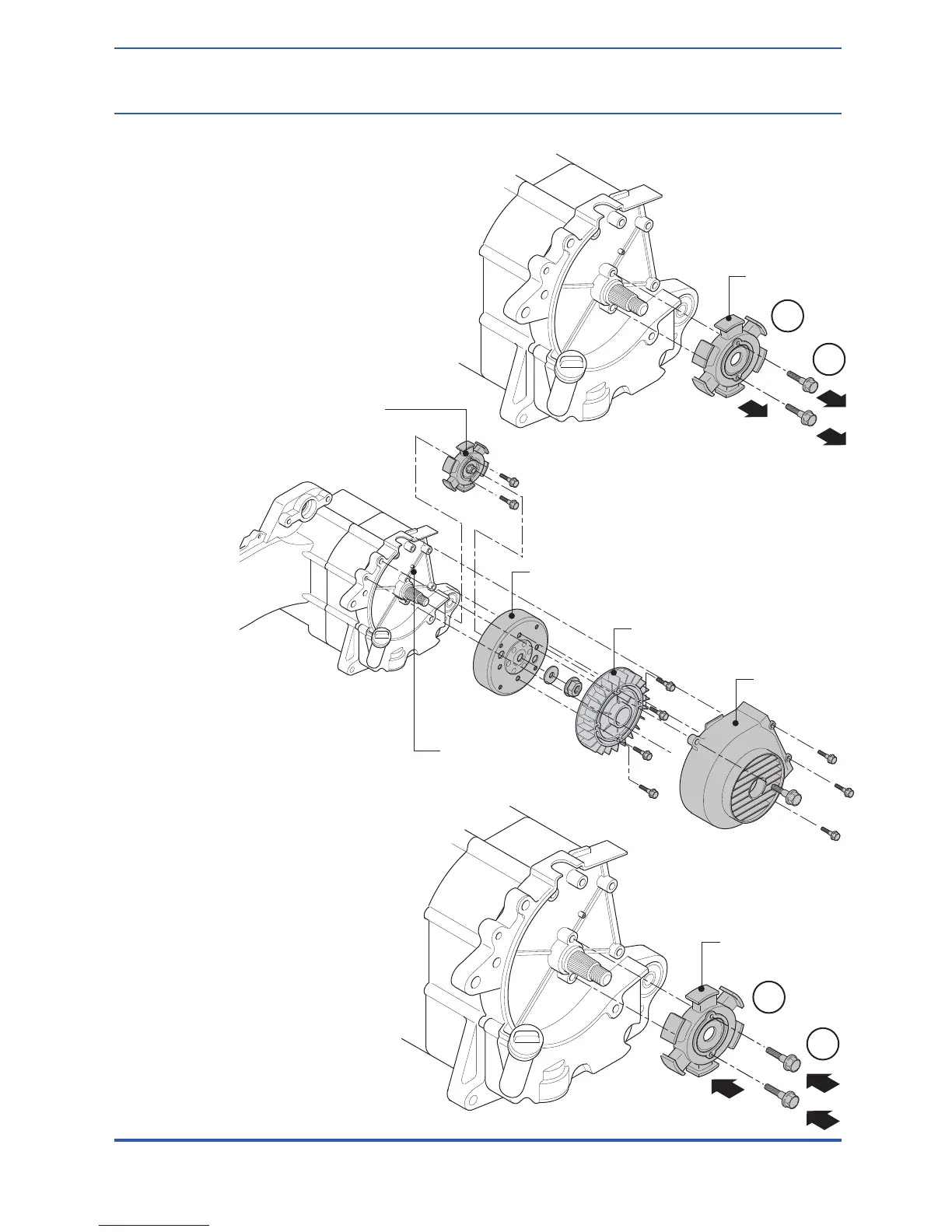

FAN COVER
COOLING FAN
FLY WHEEL
TRIGGERING
COIL
LOCATING KEY
1
6
4
2
TRIGGERING COIL
TRIGGERING COIL
3. Detach the stator of the magneto.
4. Remove the bolts of the triggering
coil.
5. Remove the rubber sleeve of the
magnetor wire from the right
crankcase.
6. Remove the triggering coil.
Assembling the Magneto
1. Attach the triggering coil to the
right crankcase.
2. Lock the fix bolts of the triggering
coil.
Torque:
The triggering coil: 0.5kg•m
40in lbs
The stator: 0.9kg•m 7ft lbs
3. Set up the rubber sleeve of the
magneto wire.
